incl. VAT€9,07
Price incl. VAT: €9,07
Ex. VAT: €7,25
Total discount:
VAT: €1,81

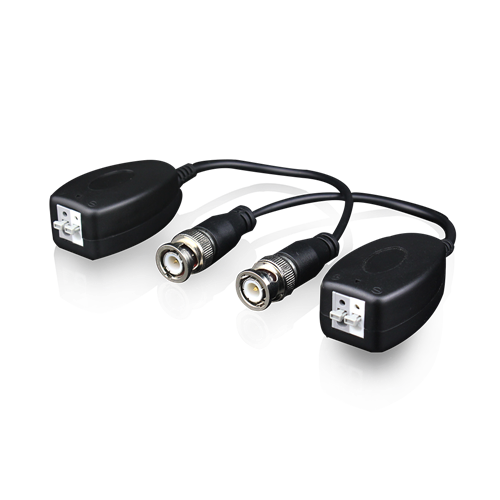

Passive transceivers of 1 channel HDCV/HDTVI/AHD/CVBS. 2 unit blister. 500 m passive to passive. 650 m passive to active (CTD-494N).
+20 left on stock
Product description: CTD-627
Features
- CTD-627
- Passive transceiver, power is not required
- Live transmission of HDCVI/HDTVI/AHD/CVBS video signal
- Up to 500 m range passive to passive
- Up to 650 m range passive to active (CTD-494N recommended)
- Compatible with adverse environments: without active electromagnetic interferences, high surge protection, ESD and lightning-proof
- ABS case, coaxial cable connector incorporated
- 2 x blister unit served
Specs
- CTD-627
- 1 channel transceiver
- Transmision range (passive to passive):
- CTD-627
- HDCVI: 500 m at 720P, 150 m at 1080P
- HDTVI: 240 m at 720P/1080P
- AHD: 500 m at 720P/960P, 420 m at 1080P
- CVBS: 600 m
- Video Coaxial Port: BNC male
- Twisted pair port: insertion terminal
- Video compatibility: CVI/TVI/AHD, PAL/NTSC/SECAM
- Bandwith: 0~75MHz
- Interference rejection: >60dB
- Coaxial port protection: 2KV Per: IEC61000-4-5
- Twisted pair protection: 2KV (differential mode), 4KV (common mode), Per: IEEC61000-4-5
- ESD: Level 3, 1a contact discharge , Nivel 3, 1b air discharge
- Surge protection
- Storage temperature -20°C ~ +70°C
- Working temperature -10°C ~ +55C°
- RH 0% ~ 95% without condensation
- ABS plastic case
- Weight: 18 g
