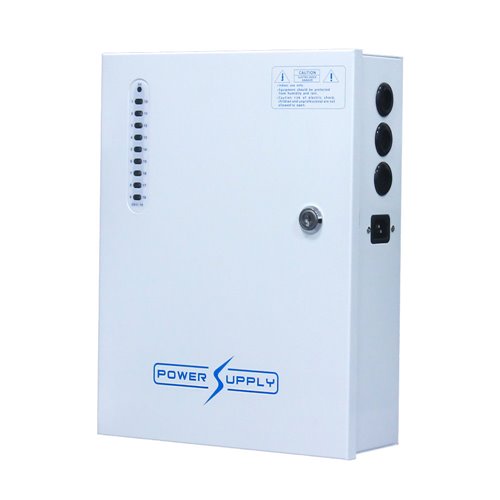

CTD-626N - Power supply in metallic box of 16…

Features
- Power supply in metallic box of 16 total outputs 12V / 20A
- White housing for wall installation
- Universal AC input range: 96V ~ 264V AC
- Individual 16-channel tube fuse, the fuse is automatically cut off while a short circuit, current overload or overload occurs in a single channel and keeps the entire power system operating correctly
- Configured with backup battery interface and charge / discharge function, which guarantees a continuous power supply in case of power outages
- External LED indicator for each channel output
- Incorporates EMI wave filter, 100% full load burn test
- Long life electrolytic capacitors 105 ° C
- High efficiency, long service life, high reliability

Specifications
- Input voltage of 96V ~ 264V AC
- Input current: <3A
- Input frequency range: 47 ~ 63Hz
- Input efficiency: ≥85%
- Protection against 40A / 240V input surges
- Output voltage of 13V ~ 15V DC
- Rated output current: 20A
- Output current range: 0 ~ 20A
- Nominal power: 276W
- 16 channels of power output
- Space for 2 batteries of 7Ah or 1 17-22Ah battery
- Operating temperature: -20 ° C ~ + 70 ° C
- Operating relative humidity of 20% ~ 90%
- Storage temperature: -40 ° C ~ + 85 ° C
- Relative storage humidity of 20% ~ 95%
- Lockable box for wall mounting
- Individual protection by fuse
- Dimensions: 320.5 x 250 x 80 mm
- Weight: 2.3 kg
