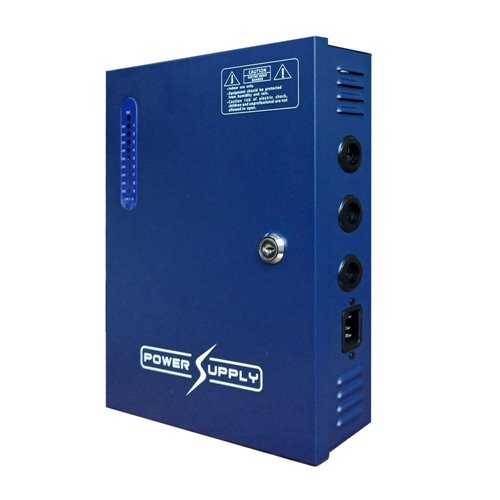

CTD-623N - Power supply in metal box with 9 to…

Features
- Power supply in metallic box with 9 total outputs 12V / 10A
- Blue case for wall installation
- Universal AC input range: 96V ~ 264V AC
- Individual 9-channel tube fuse, the fuse is cut automatically while a short circuit occurs, a current overload or an overload in a single channel and keeps the entire power system working properly
- 5KA surge protection
- Convection cooling of free air and cooling fin
- Protection against overload, overcurrent, overvoltage, overheating, shortcut
- External LED indicator for each channel output
- Incorporates EMI wave filter, 100% full load burn test
- Long life electrolytic capacitors 105 ° C
- High efficiency, long service life, high reliability

Specs
- Input voltage of 96V ~ 264V AC
- Input current: <2.5A (115V AC), <1.5A (230V AC)
- Input frequency range: 47 ~ 63Hz
- Input efficiency: ≤85%
- Protection against 40A / 240V input surges
- Output voltage of 11.5V ~ 14.5V DC
- Rated output current: 10A
- Output current range: 0 ~ 10A
- Nominal power: 120W
- 9 channels of power output
- Operating temperature: -20 ° C ~ + 70 ° C
- Operating relative humidity of 20% ~ 90%
- Storage temperature: -40 ° C ~ + 85 ° C
- Relative storage humidity of 10% ~ 95%
- Lockable box for wall mounting
- Individual protection by fuse
- Dimensions: 289 x 215 x 66 mm
