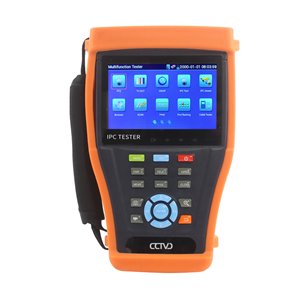

CTD-620 - 5 in 1 multifunction CCTV tester wi…

SKU: CTD-620
incl. VAT€703,59
Price incl. VAT: €703,59
Ex. VAT: €562,87
Total discount:
VAT: €140,72
5 in 1 multifunction CCTV tester with 4,3" touchscreen with TVI/CVI/AHD bracket up to 5MP/4MP/4MP and IP H.265/H.264 4K. Built in WiFi. Audio in / out. PTZ control. UTP test. TDR function. PoE output. 12V and 5V. Onvif. HDMI 1080P in/out. 12V DC.
Few left on stock
Product description: CTD-620

Cctvd

- 5 in 1 multifunction CCTV tester (CVBS, CVI, TVI, AHD, IP)
- 4,3" touchscreen (960x540 pixels)
- H.265, 4K and H.265/H.264 with stream 1 display
- HDMI input signal, supports 1080P
- HDMI output with 1920x1080 resolution
- IP/analog dual test (analog camera test and simultaneous IP)
- Drop-down menu, menu accessible by shortcut key
- WiFi incorporated: It allows to receive images of WiFi cameras and supports the creation of WiFi hotspot
- HD-TVI (5MP), HD-CVI (4MP) and AHD (4MP)
- AHD/CVI/TVI camera test supports snapshot, recording and video playback and 4x zoom
- CVBS loop test: Transmits or receives analog video signal
- ONVIF IP camera test, supports 4K resolution (3840x2160)
- Viewing images from analog cameras: Automatically adapts to PAL and NTSC formats
- Fast Onvif: With a key we generate a test report, including the IP address, resolution and decoding
- Connection of IP cameras by RJ45 and WiFi
- Real-time visualization
- PTZ control, snapshot, video recording, registered video playback
- TV output with color bar generator
- UTP cable test: TDR function up to 180 m (to locate and locate breakpoints in UTP cable), connection status, cable sequence on screen, saved test report
- PoE voltage measurement, PING test, IP address scan, port intermittence, etc.
- PoE output of 48V DC: Supplies temporal power supply to PoE camerasPoE
- Power supply output: 12V /2A and 5V /2A
- Audio in /out
- LED flashlight, calculator, players and other tools/apps
- Power supply: 12V DC /2A
- Incorporates 7.4V lithium polymer battery, 5000mAh
- Working temperature: -10°C ~ +50°C
- Dimensions: 215 x 127 x 53 mm
- Weight: 820 sg
