incl. VAT€9765,00
Price incl. VAT: €9765,00
Ex. VAT: €7812,00
Total discount:
VAT: €1953,00
- SKU: KIT-BODYTEMP-CAPACITY

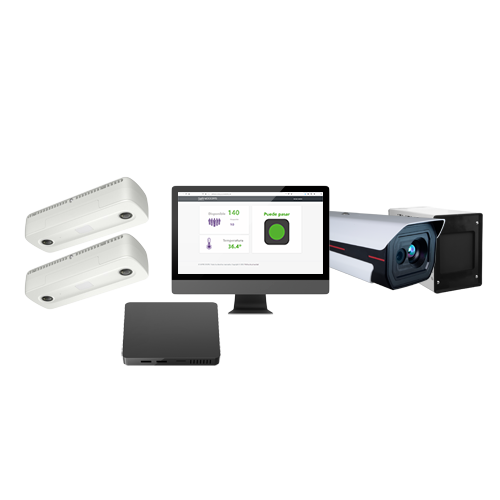

- Multi-Stance and Temperature Gauge Control
- 2 x People Counting Cameras
- 1 x KIT-BODYTEMP-BLACKBODY KIT
- PC with Safire Doors Pro Temp software
- Custom Reports
- Alarm notifications
Sold out / Not on stock
Product description: KIT-BODYTEMP-CAPACITY
- KIT-BODYTEMP-CAPACITY
- Safire
- Capacity control and temperature monitoring in up to 20 rooms
- Supports up to 100 people counting cameras
- Includes 2 People Counting Cameras SF-IPCOUNT-Y0200
- KIT-BODYTEMP-BLACKBODY (Blackbody included)
- MINI-PC-ANDROID with Safire Doors Pro Temp software installed
- Access traffic light
- Non-intrusive, high-performance temperature monitoring of up to 30 people at a time
- Notification on screen when the established capacity limit is exceeded
- Over-temperature notification on the screen
- Unlimited viewers on different devices via Web Browser
| SKU | KIT-BODYTEMP-CAPACITY |
People Counting Cameras | |
| Brand | Safire |
| Model | SF-IPCOUNT-Y0200 |
| Image sensor | 1/2.7” Progressive Scan CMOS |
| Maximum resolution | 1920 x 1080 |
| Main Stream rate | 1920 x 1080 (1 ~ 30 FPS) |
| Compression | H.265+ / H265 / H.264+ / H.264 |
| Day / Night | Auto / Programmable / Manual |
| Infrared Illumination | 6 m |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Lens | 2 mm (H: 104º, V: 70.5º) |
| Functions | 3D-DNR, BLC, DWDR |
| Communication interface | 1 x Ethernet 10/100M BaseT |
| Alarms | 1 input / 1 output (Supports up to 24 VDC, 1 A) |
| Audio | Integrated microphone |
| People counting | Statistics of entries, exits and transit | Daily, weekly, monthly and annual reports |
| Other functions | Height Filter | Door Status Indicator |
| Remote access | Web browser, Safire Control Center Smartphone App and PC Software |
| Interoperability | ONVIF |
| Recommended installation | Installation height: 2.1 m | Detection area: 1.02 m Installation height: 2.6 m | Detection area: 2.30 m Installation height: 3.1 m | Detection area: 3.58 m Installation height: 3.6 m | Detection area: 4.86 m Installation height: 4.1 m | Detection area: 5.50 m Installation height: 4.6 m | Detection area: 6.14 installation height: 5.1 m | Detection area: 6.45 installation height: 5.6 m | Detection area: 7.40 m Installation height: 6.0 m | Detection area: 8.16 m |
| Power | DC 12 V / 600 mA, PoE (IEEE802.3af) |
| Temp. operation | -30º C ~ +60º C |
| Degree of protection | Interior |
| Material | Body: Metallic |
| Dimensions | 61 (H) x 168 (W) x 36 (D) mm |
| Base dimensions | 152 x 69 mm / 4 screws |
| Weight | 450 g |
Dual IP Thermographic Camera | |
| Thermal sensor | 384x288 Vanadium Oxide |
| Optical sensor | 1/2.7” Progressive Scan CMOS 2 Megapixel |
| Minimum illumination (for optical part) | Colour: 0.09 Lux @ (F1.6, AGC ON), IR up to 50 m distance |
| Main Stream Flow | 384x288(50fps) Thermal / 1920x1080 (25fps) Optical |
| Extra Stream Flow | 384x288 (50fps) Thermal / 704x576 (25fps) Optical |
| Compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Lens | 10 mm (Term) |
| Viewing angle | 37.5°×28.6° (Therm) |
| Thermal sensitivity | < 40mK (0.05 º C) |
| Thermal measurement range | 20 ~ 50ºC / High precision ± 0.3ºC (Only using blackbody) |
| Spectral range | 8~14μm |
| Pixel size | 17μm |
| Intelligent functions | Body temperature measurement |
| Features in Measurement | Up to 30 face detections in the same scene / Between 2 ~ 6 m. detection distance (ideal point 3~ 4 m) |
| Audio | No |
| Alarm | 1 Relay (NA/NC) |
| Internal memory | No |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | WEB, CMS and NVR interface |
| Interoperability | ONVIF |
| Recommended Installation | 2 m of height |
| Power | 12VDC, 4W max. |
| Temp. operation | 0º C ~ +30º C |
| Degree of protection | Weatherproof IP66 |
| Dimensions | 293.9 mm (Fo) x 120.7 (An) x 119 (Al) mm |
| Weight | 2 Kg |
Safire Link Multiroom BodyTemperature software | |
| Type | Software: Safire Doors Pro Temp |
| Device limit | Up to 100 People Counting cameras (upgradeable) : 1 temperature measuring camera per room |
| Display | Limited users. Browser access from the same LAN. |
| Information analysis | Real-time capacity information, customized reports |
| Temperature measurement | Non-intrusive temperature measurement (Over-temperature notification and alarm time frame display) |
| Installation | MINI-PC-ANDROID |
| Expiry date | Single perpetual license (can only be installed on a single computer) |
| Compatibility | People counting cameras Safire, Uniview and X-Security : KIT-BODYTEMP-BLACKBODY |
