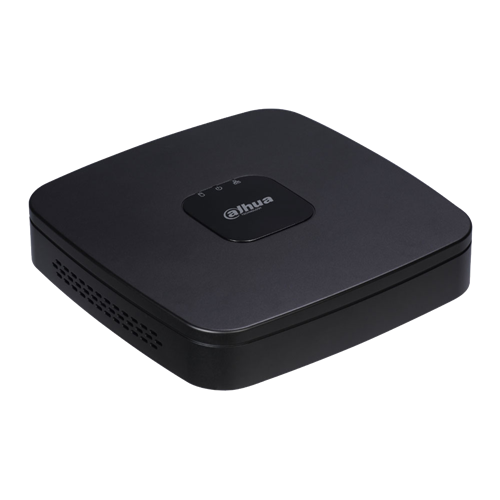

4 channel 5 in 1 XVR (960H)- CVI/TVI/AHD (1080N- 720P) +1 IP channel (2MP) - XVR4104C-X1-BL

• Smart H.265: Smart Codec, H.265+ can reduce up to 90% bit rate and storage requirements compared with H.264 without having to invest in new cameras.

• Versatilidad de formatos de vídeo: Can connect up to 4 analog cameras (CVI/TVI/AHD/CVBS) and 1 additional IP cameras, assigning various or all analog IP channels to obtain 5 IP channels

• Long Distance Transmission: The HDCVI system supports long distance transmission over coaxial cable and UTP, max. 700m for 4K/4MP, 800m for 1080P and 1200m for 720P.

• Smart Search: This function helps you get more motion detect video during a short time through drawing a region when playback. It is very useful when an emergency occurs.

Features
- 4 channel 5 in 1 XVR (960H), CVI/TVI/AHD (1080N, 720P) +1 IP channel (2MP)
- 5 technologies: IP cameras, HDCVI, HDTVI, AHD and CVBS with automatic signal recognition
- Display and playback of all channels
- H.265+/H.265/H.264+/H.264
-4 BNC inputs:
• HDCVI: 1080N, 720P
• HDTVI: 1080N, 720P
• AHD: 1080N, 720P
- IP camera inputs: 1 IP input at 2MP (added to BNC input)
- HDMI and VGA video output (up to1080P)
- Output division on IP mode OFF: 1, 4
- Output division on IP mode OFF ON: 1, 4, 6
- 2 way audio:1 RCA audio in / 1 RCA audio out
- Recording resolution: 1080N (960x1080), 720P (1280x720),960H (960x576), D1 (704x576), CIF (352x288)
- Maximum input bandwidth of 20 Mbps
- Stream 1: 1080N/720P/960H/D1/CIF (1~25 fps)
- Stream 2: CIF (1~15 fps)
- Recording modes: manual, calendar, video detection, video loss, manipulation, alarm
- Recording intervals: 1~60 min (60 min default),pre-recording 1~30 sec.,post-recording of 10~300 sec.
- Independent motion detection configuration by camera (22x18 selectable grid), video loss and masking detection, diagnosys
- 4channel playback
- 1 HDD SATA up to 6TB (not included)
- OSD menu
- Possibility of updating the firmware of the DAHUA cameras from the recorder itself
- Software and hardware watchdog
- Watermark to preserve the integrity of the videos
- Third party support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, etc.
- The fan can be turned on or off automatically depending on the temperature of the CPU
- Network port RJ45 (100M)
- Network protocols: HTTP, HTTPS, TCP / IP, IPv4 / IPv6, 3G / 4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Server Alarm, P2P, Search IP (supports DAHUA IP cameras, DVR, NVS, etc.)
- Allows up to 128 users
- Compatible with ONVIF 16.12 and CGI
- Compatible with iPhone, iPad, Android devices (EVO and Peepall App)
- Free SmartPSS client software (multi-connection) and connection through browser (Internet Explorer, etc.)
- Sending eMails with photo attached in alarm
- Send to FTP scheduled or in alarm
- Possibility of sending an alarm and being connected to alarm receiving software (C.R.A.) through free software AlarmSpace
- Possibility of fixed or dynamic IP through DDNS Evolution service
- Communication ports: 2 USB 2.0 ports
- Power supply: 12V DC, 1.5A (<10W, without counting discs)
- Operating temperature: -10 ° C ~ + 45 ° C
- Relative humidity of operation: 10% ~ 90%
- Storage temperature: -20 ° C ~ + 70 ° C
- Relative storage humidity: 0% ~ 90%
- Dimensions: 205 x 211 x 45 mm
- Weight: 470 g
- Desktop installation
