DVR 5n1 X-Security - XS-XVR6232-H

SKU: XS-XVR6232-H

incl. VAT€446,40

Price incl. VAT: €446,40

Ex. VAT: €357,12

Total discount:

VAT: €89,28

Sold out / Not on stock

Product description: XS-XVR6232-H

XS-XVR6232-H
X-Security
DVR 5n1
32 CH video HDTVI/HDCVI/AHD/CVBS / 32 CH IP Up to 6 Mpx/ 1 CH audio
H.265+/H.265/H.264+/H.264
Resolution per channel: 1080p (15FPS) / 720p (25FPS) / D1 CIF in all technologies
PTZ Control (RS485/Coaxial)
Audio All-over-Coax
HDMI 4K, VGA & CVBS Outputs
Mouse
Space for 2 HDD

SKU	XS-XVR6232-H
Brand	X-Security
Video format	HDTVI / HDCVI / AHD / CVBS / IP
Video inputs	32 Channels BNC (HDTVI / HDCVI / AHD / CVBS)
Hybrid configuration	Up to 32 IP Channels (6Mpx), replacing all the BNC channels

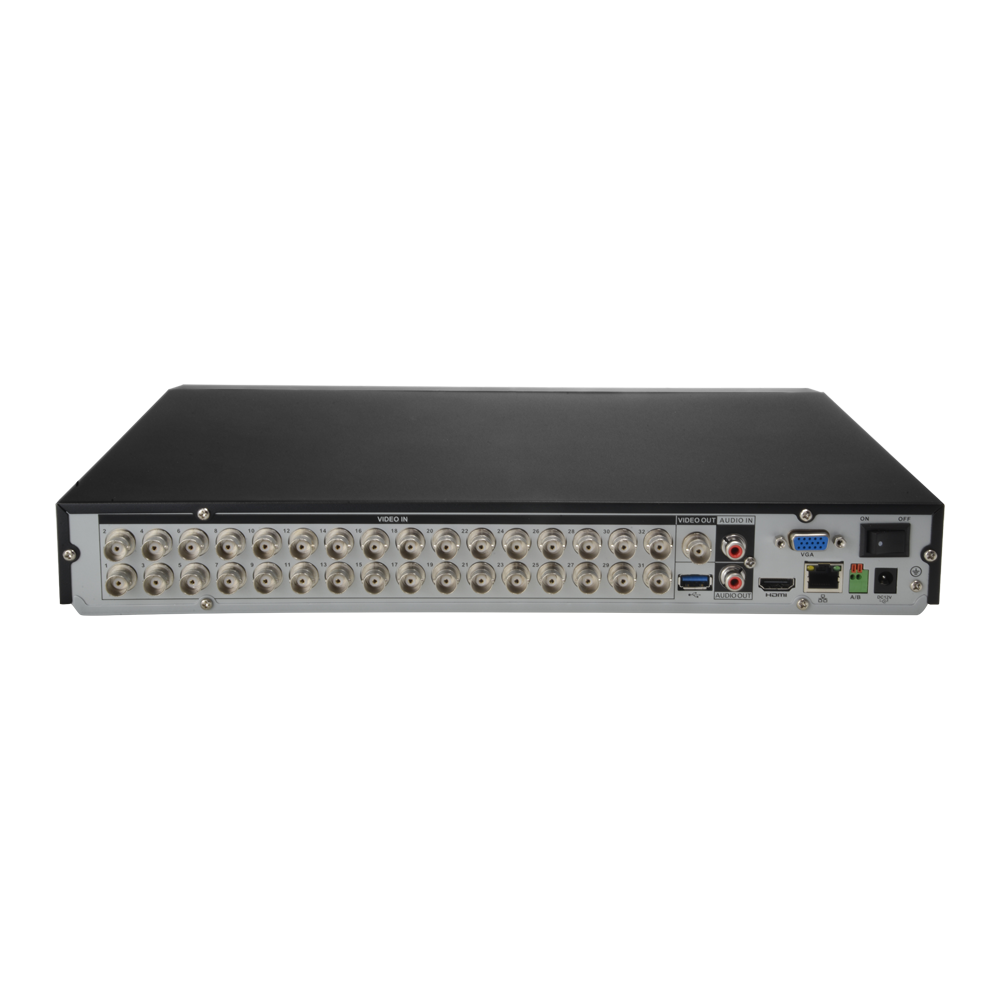

Video outputs	1 HDMI 4K, 1 VGA, 1 BNC (CVBS)
Video / audio compression	H.265+/H.265/H.264+/H.264 / G.711u
Display resolution	1920x1080, 1280x1024, 1280x720
Total bandwidth	128 Mbps
Recording resolution	4 M-N,1080p, 720p, 960H, D1, CIF
Main Stream coding	4M-N/1080p(15 FPS) /720p (30 FPS)
Extra Stream coding	D1 / CIF / QCIF (1~30 FPS)
Simultaneous multifunction	Pentaplex: Live, Recording, Playback, Backup and Remote Access
Audio inputs	1 Channel RCA
Audio outputs	1 Channel RCA
Bidirectional audio	Reusing the audio input/output
Alarms IN/OUT	Not available
Video analysis	IVS: Tripwire \| Area intrusion \| Abandoned object \| Face detection
Intelligent functions	Function P2P \| POS function \| Alarm / audio / update by Coaxial (All-over-Coax)
Recording method	Manual, programmed, motion detection, alarm
Backup	USB (Memory, HDD, CD-RW, DVR-RW) / Network
Internal memory	2 HDD SATA 3.5" of up to 10TB (not included)
Communication	RS485 (PTZ) /3 x USB (Mouse and backup) / RJ45 10/100 (Ethernet)
Remote access	Web browser (ActiveX), mobile phone application or PSS software
Power	DC 12V / 5A
Dimensions / Weight	287 (H) x 375 (W) x 53 (D) mm / 2.0 Kg
