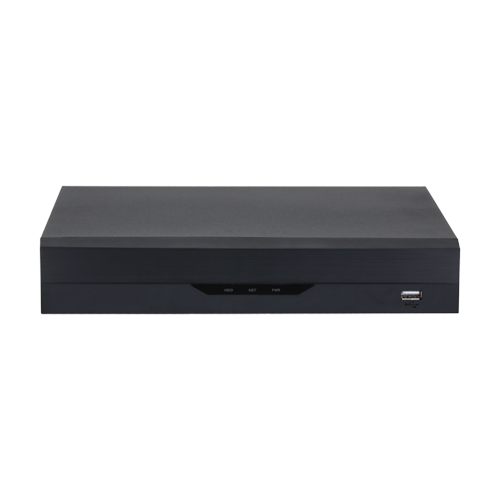

DVR 5n1 X-Security - XS-XVR6216AS-4KL-2FACE

SKU: XS-XVR6216AS-4KL-2FACE

incl. VAT€430,13

Price incl. VAT: €430,13

Ex. VAT: €344,10

Total discount:

VAT: €86,03

SKU: XS-XVR6216AS-4KL-2FACE
DVR 5n1 X-Security
16 CH HDTVI/HDCVI/AHD/CVBS/ up to 32CH IP (6Mpx)
2 CH facial recognition
16 CH Human and vehicle recognition
4K(7FPS) Recording Resolution
Alarms / Audio All-over-Coax

Sold out / Not on stock

Back to: DVRs

Product description: XS-XVR6216AS-4KL-2FACE

Description
Specification

XS-XVR6216AS-4KL-2FACE
X-Security
DVR 5n1
16 CH HDTVI/HDCVI/AHD/CVBS video / 32 CH IP To 4K
H.265+/H.265/H.264+/H.264
Resolution per channel: 4K (7FPS), 6MP (10FPS), 5MP (1~12fps) 4M-N/1080p (1~25/30FPS)
PTZ Control (RS485/Coaxial)
Audio All-over-Coax
Bidirectional audio
Alarms
2 CH facial recognition
Human and Vehicle Recognition (Available for 16 CH coaxial video)
VGA and HDMI 1080p output
Mouse
Space for 2 HDD

SKU	XS-XVR6216AS-4KL-2FACE
Brand	X-Security
Video format	HDTVI / HDCVI / AHD / CVBS / IP
Video inputs	16 Channels BNC (HDTVI / HDCVI / AHD / CVBS)
Hybrid configuration	Up to 32 IP Channels (8Mpx), replacing all the BNC channels
Video outputs	1 HDMI 4K, 1 VGA
Video / audio compression	H.265+/H.265/H.264+/H.264 / G.711u
Display resolution	3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
Total bandwidth	128 Mbps
Recording resolution	4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, VAT
Main Stream coding	4K (7FPS), 6MP (10FPS), 5MP (1~12fps) 4M-N/1080p (1~25/30FPS)
Extra Stream coding	960H(1fps–15fps) D1/CIF(1fps–25/30fps)
Simultaneous multifunction	Pentaplex: Live, Recording, Playback, Backup and Remote Access
Alarms	16 input / 3 relay
Audio	4 in / 1 out RCA
Bidirectional audio	Reusing the audio input/output
Video analysis	IVS: Tripwire \| Area intrusion \| Abandoned object \| Face detection
Intelligent functions	Function P2P \| POS function \| Alarm / audio / update by Coaxial (All-over-Coax)
Intelligent motion detection	Up to 16 channels capable of classifying targets amongst humans and vehicles
Recording method	Manual, programmed, motion detection, alarm, stop
Backup	USB / Network
Internal memory	2 SATA HDD up to 10TB (not included)
Communication	RS485 (PTZ) /2 x USB (Mouse and backup) / RJ45 10/100/1000 (Ethernet)
Remote access	Web browser, mobile phone application or PSS software
Power	DC 12V / 5A
Dimensions / Weight	288 (H) x 375 (W) x 53 (D) mm / 2.0 Kg
