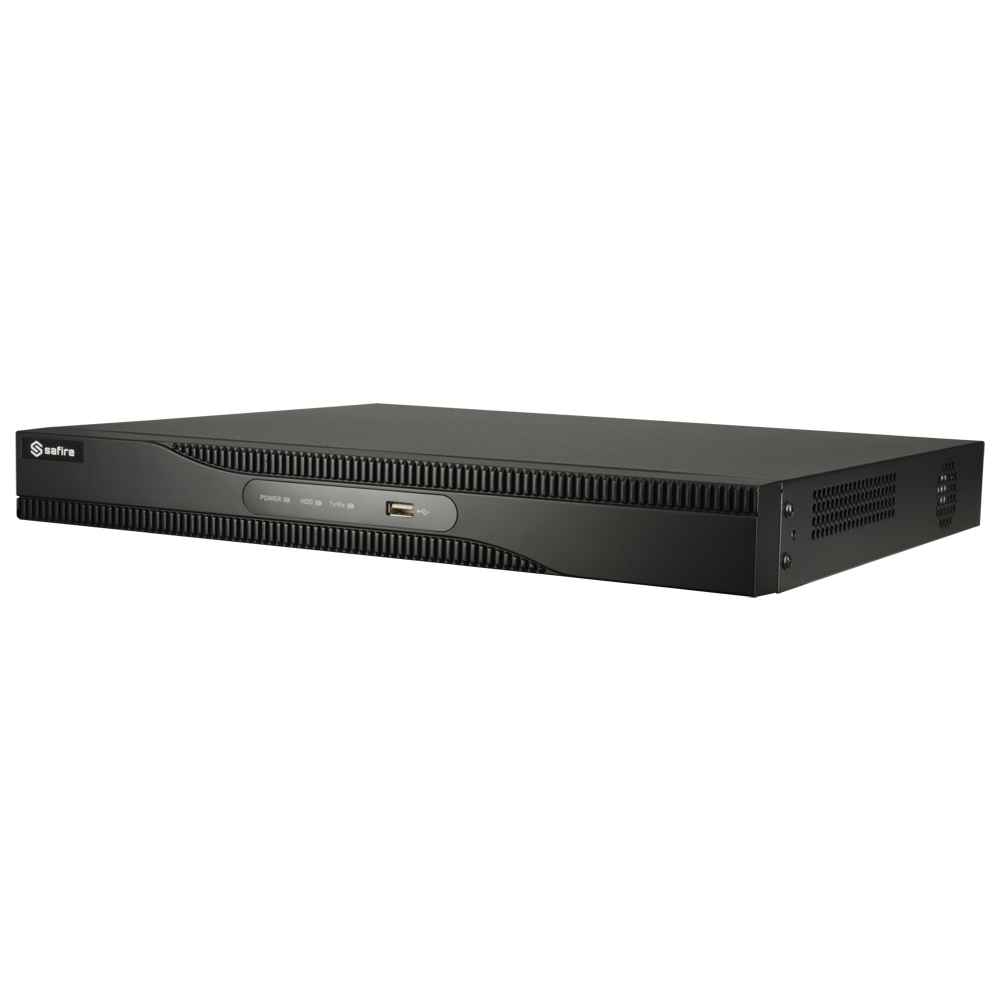

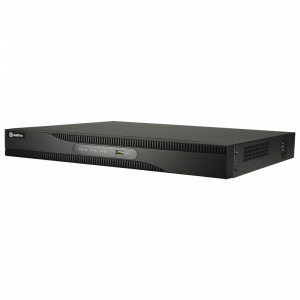

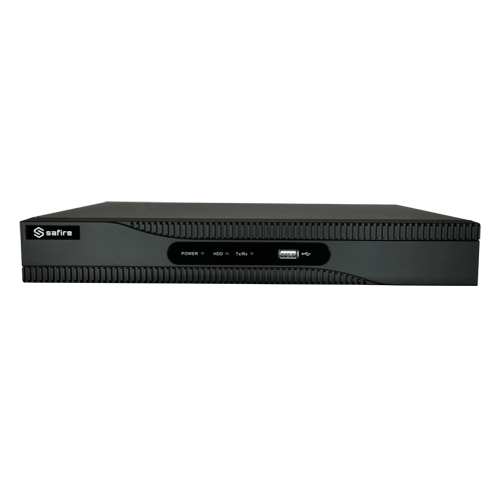

Safire 5n1 H.265+ Recorder - SF-HTVR8216AP-HEVC
€536,25
€343,20
You save:
€107,25
Variant price modifier:
Base price with tax €536,25
Price incl. VAT: €429,00
ex. VAT: €450,45
VAT: €85,80
Price / COM_VIRTUEMART_UNIT_SYMBOL_:
In Stock
SKU: SF-HTVR8216AP-HEVC
- SKU: SF-HTVR8216AP-HEVC
- Safire 5n1 H.265+ Recorder
- Power over Coaxial (Only with Safire PoC)
- 16 CH HDTVI / HDCVI / AHD / CVBS / 8 IP
- 5 Mpx/4 Mpx/3 Mpx (<25FPS en TVI) /1080p (25FPS)
- Salida HDMI 4K, VGA y BNC (CVBS)
- Alarmas (16/4) | 4 CH audio / 2 HDD
|
|
1-4 Business daysShipping to EU € 3,99 | |
- SF-HTVR8216AP-HEVC
- Safire
- DVR 5n1
- 16Ch video HDTVI/HDCVI/AHD/CVBS / 8 IP (extra) / 4Ch audio
- H.265+/H.265/H.264+/H.264
- Resolution per channel: 4K (8FPS), 5Mpx (12FPS), 4Mpx (15FPS) on TVI or 1080p (25FPS) in the rest of HD technologies.
- PTZ Control (RS485/Coaxial)
- Alarms
- HDMI 4K, VGA & CVBS Outputs
- Power Over Coaxial (Only compatible with Safire PoC)

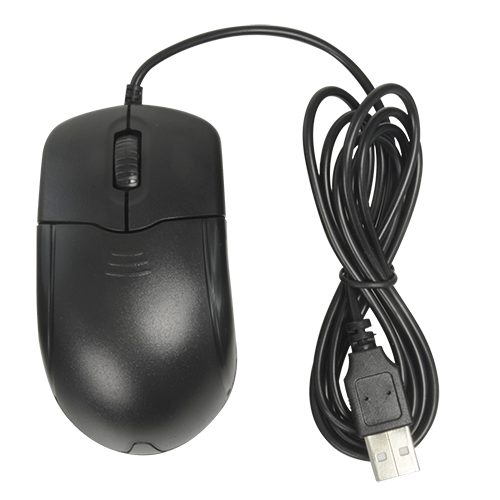

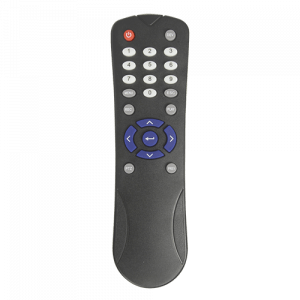

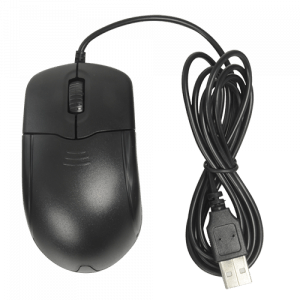

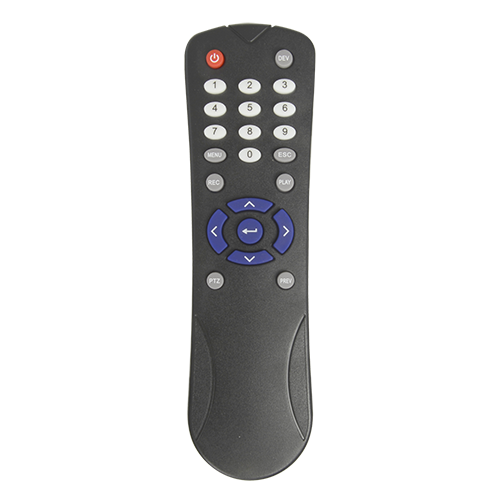

- Remote control - Mouse

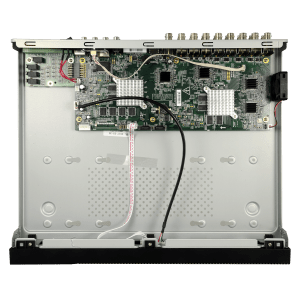

- Space for 2 HDD

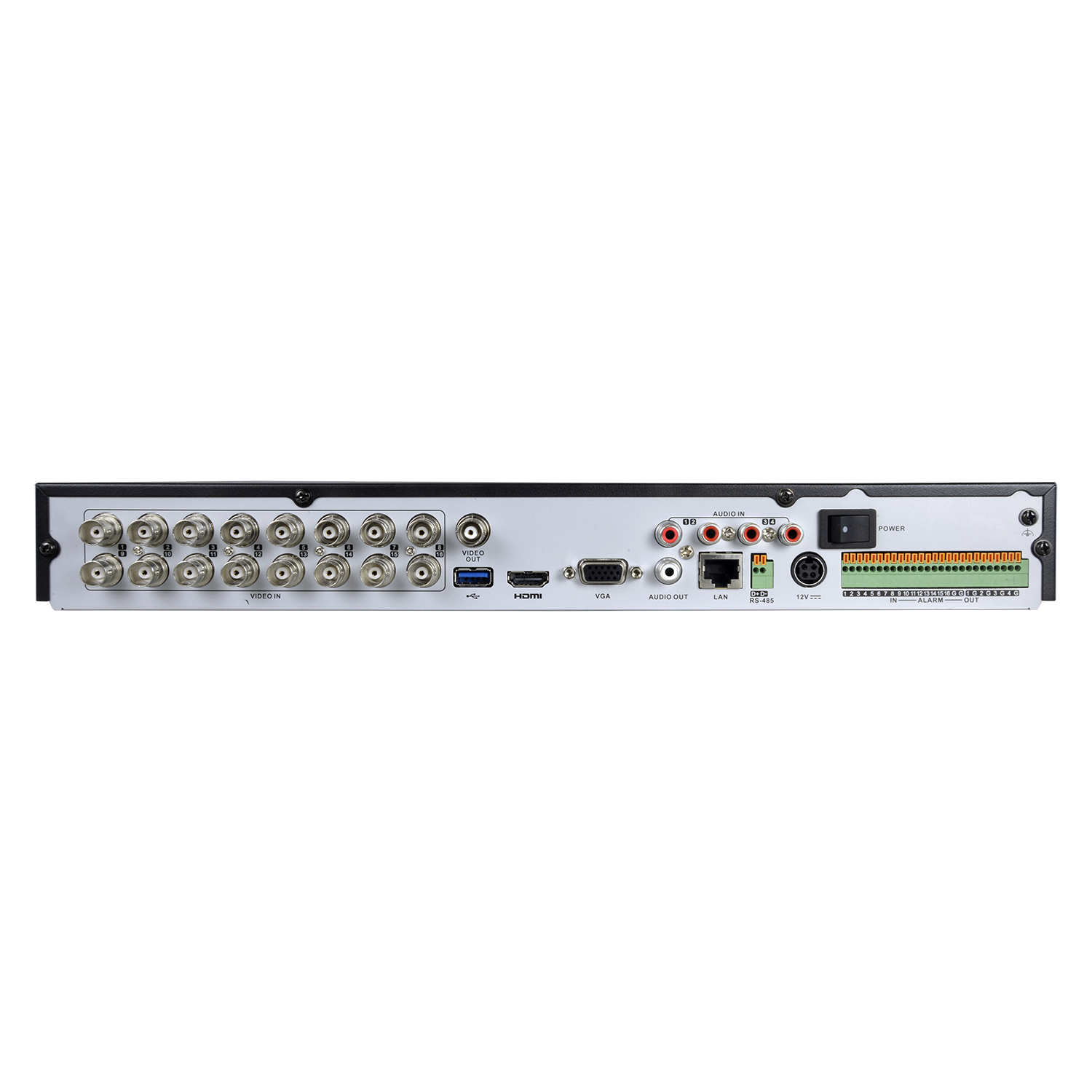

| SKU | SF-HTVR8216AP-HEVC |
| Brand | SAFIRE |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video inputs | 16 Channels BNC, (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid configuration | 16 Channels from BNC and 8 Channels IP (6Mpx) |
| Video outputs | 1 HDMI 4K, 1 VGA, 1 BNC (CVBS) Independent |
| Audio inputs | 4 Channel RCA |
| Audio outputs | 1 Channel RCA |
| Bidirectional audio | Reusing the audio input/output |
| Video / audio compression | H.265+ / H.265 / H.264+ / H.264 / G.711u |
| Display resolution | 4K (3840x2160), 2K (2560x1440), 1920x1080, 1280x1024, 1280x720, 1024x768 |
| Recording resolution | 4K / 5Mpx / 4Mpx / 3Mpx / 1080p / 1080p Lite / 720p / WD1 / 4CIF / VGA / CIF |
| Main Stream coding | 4K (8 FPS) / 5Mpx (12 FPS) / 4Mpx (15 FPS) / 3Mpx (18 FPS) in TVI / 1080p / 720p / VGA / WD1 / 4CIF / CIF (1~25FPS) |
| Extra Stream coding | WD1 / 4CIF / CIF (25 FPS) |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| PoC range | PoC Safire / PoC.af (200 m) / PoC.at (100 m) |
| PoC capacity | 8AT+8AF or 12AT combining: 12AT+0AF, 11AT+2AF, 10AT+4AF, 9AT+6AF, 8AT+8AF |
| PoC compatibility | Only compatible with SAFIRE PoC. The PoC camera should not be connected if it is connected to an external power source |
| Alarms | 16 inputs / 4 relay |
| Video analysis | VCA: Tripwire / Area intrusion / Audio exception |
| Recording method | Manual, programmed, motion detection, alarm |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network |
| Internal memory | 2 SATA HDD 3.5" of up to 8 TB (not included) |
| Communication | RS485 (PTZ) / 2 x USB (Mouse and backup) / Remote control / RJ45 (Ethernet) |
| Remote access | Web browser, Smartphone App and Safire Control Center CMS Software |

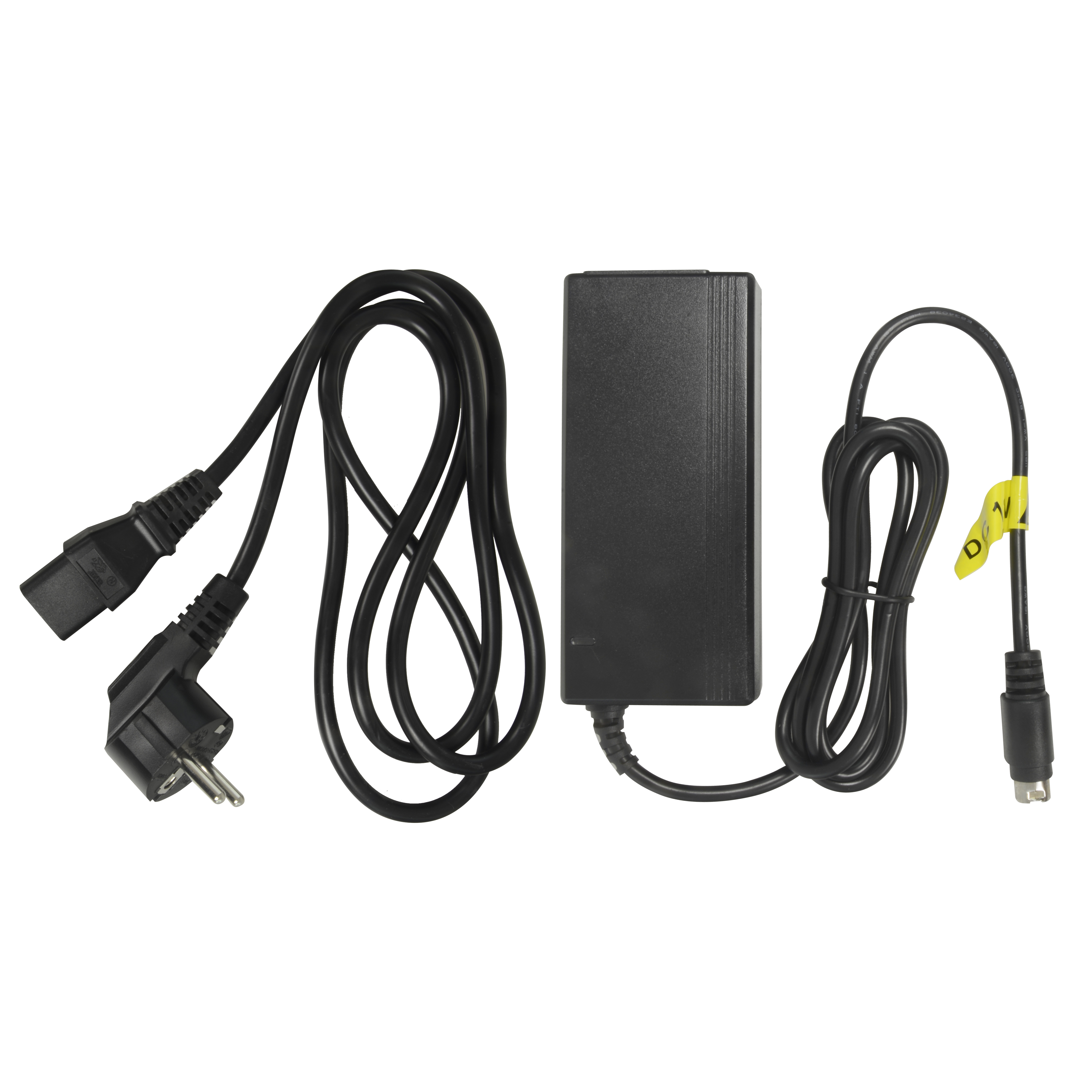

| Power supply | DC 48 V / 3 A |
| Dimensions / Weight | 48 (H) x 380 (W) x 320 (D) mm / 3.8 Kg |
