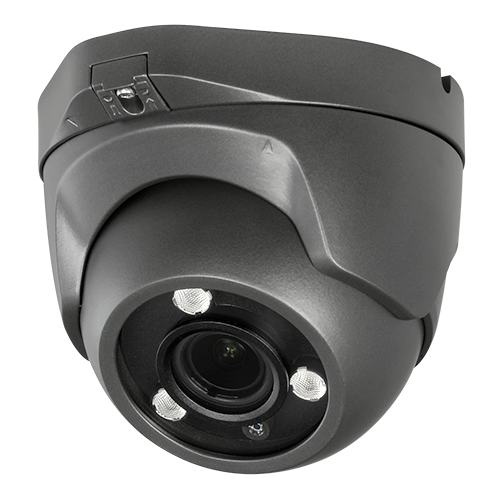

8 MP PRO Grey Dome Camera - T957ZSWG-8P4N1

Varifocal IR Dome Camera. 4 in 1 technology (HDTVI / HDCVI / AHD / CVBS) Pro range 8 MP grey color.

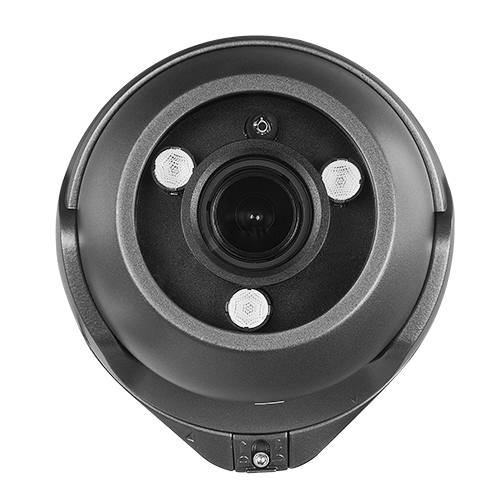

Composed of a sensor of 1/2.5" 8 Megapixel (model IMX274) and DSP (model FH8556), that offers a reslution of 8 MP at 15 FPS. Varifocal lens of 3.3 ~ 12 mm with a diagonal viewing angle of 94º to 25º. 2 infrared LEDs Array that are activated automatically giving a sharp image at 0 Lux (total darkness) at a maximum distance of 40 m. It has automatic IR Cut filter that permits clear, real colour, daytime images.

Thanks to its DSP it has OSD menu in HD formats, accessible remotely from the recorder via the coaxial cable, which allows you to configure the camera and adjust the most important parameters:

• T957ZSWG-8P4N1
• AE Shutter, automatic exposure control to optimize the input of received light
• 2D-NR, digital noise reduction system without loss of focus
• AWB, automatic white balance for true colours

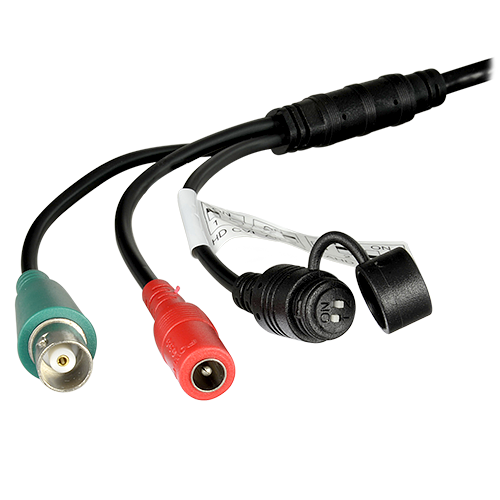

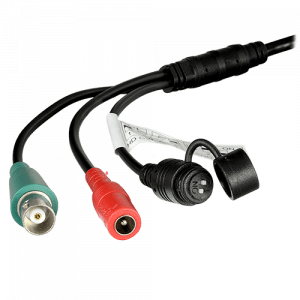

Video connection via BNC in HD formats HDTVI / HDCVI / AHD / CVBS, switchable by switch by DIP combination.

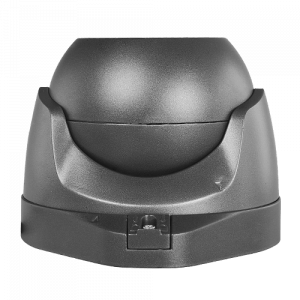

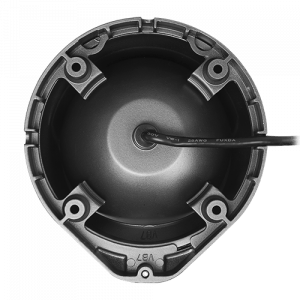

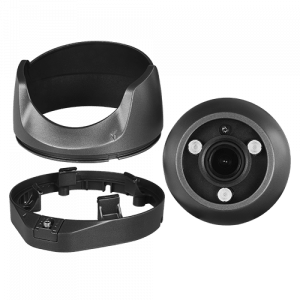

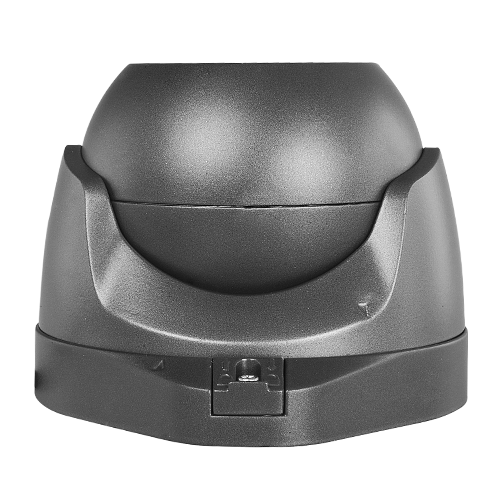

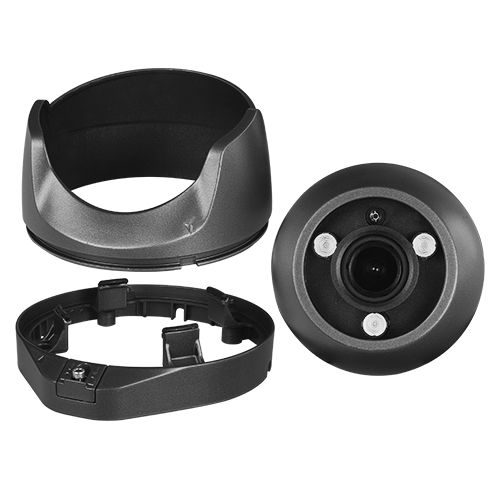

Housing made of aluminium, can be used for both indoor and outdoor. It has a sphere with three axes of rotation (3AXIS) that allow easy and accurate adjustment of the viewing angle, with wall or ceiling installation. It incorporates a screw connecting the base with the camera structure, for easy installation.
