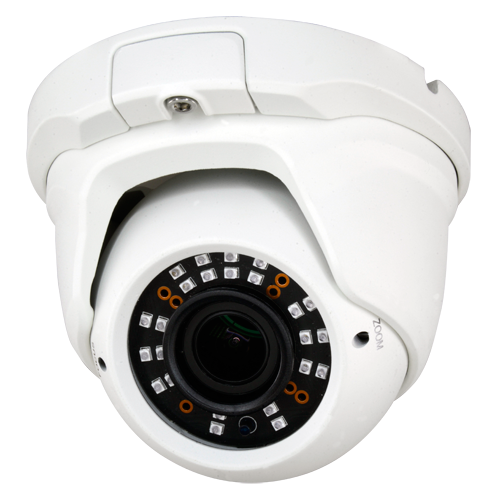

1080p ECO Dome Camera - DM955VIB-F4N1

0 Rating
incl. VAT€49,50
Price incl. VAT: €49,50
Ex. VAT: €39,60
Total discount:
VAT: €9,90
In Stock
SKU: DM955VIB-F4N1
  • SKU: DM955VIB-F4N1
  • 1080p ECO Dome Camera
  • 4 in 1 (HDTVI / HDCVI / AHD / CVBS)
  • 1/2.7" PrimeSensor© 2.1 Mpx PS5220
  • 2.8~12 mm Varifocal lens
  • 24 IR SMD LEDs Range 30 m
  • OSD remote menu from DVR
Gls 1
Ups 1
1-4 Days delivery
 Back to: Dome Cameras
Cards 1

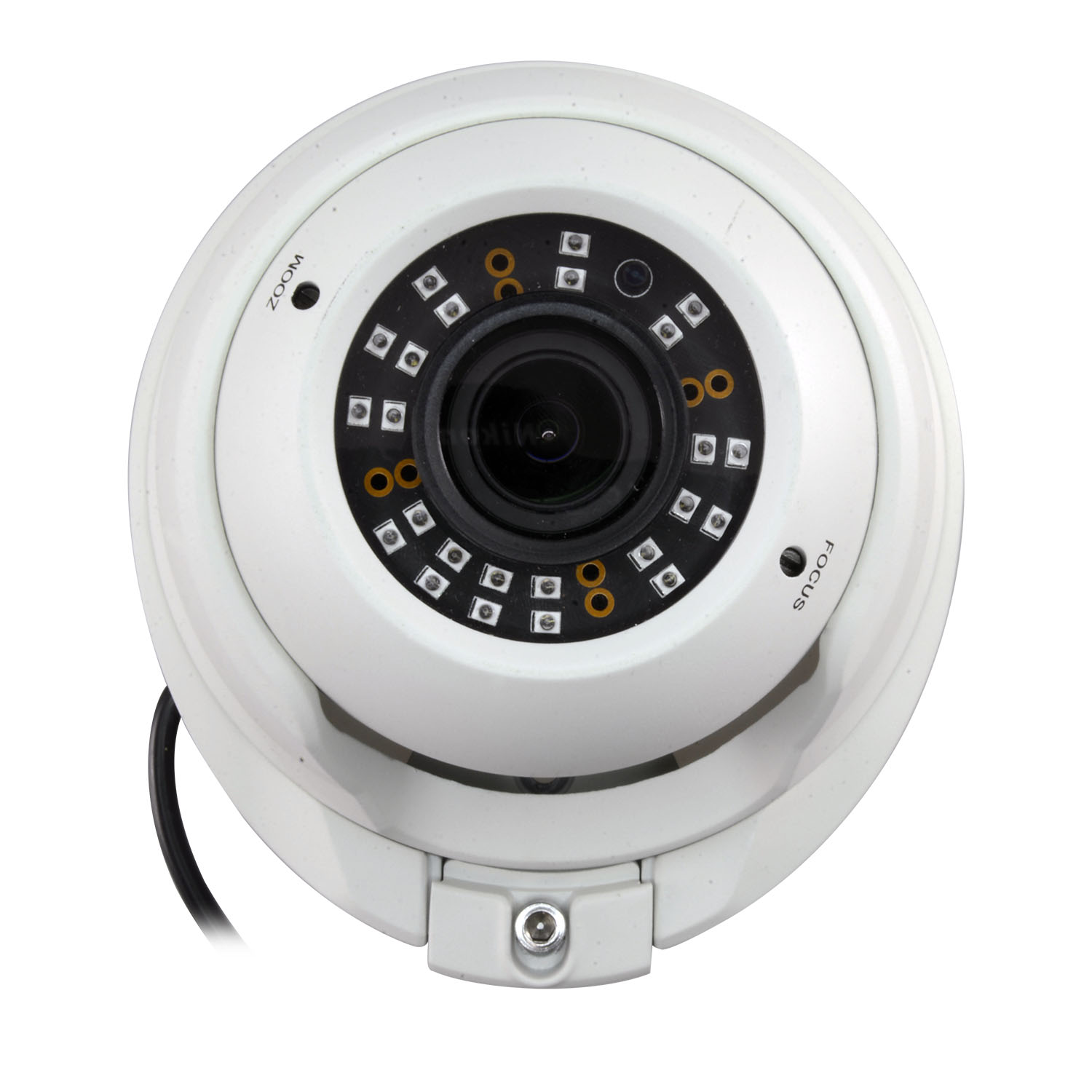

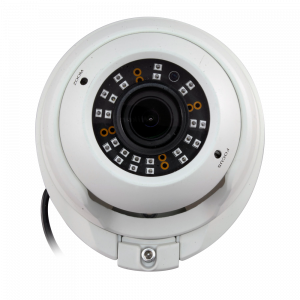

Varifocal dome camera with infrared, suitable for exterior. Technology 4 in 1 (HDTVI / HDCVI / AHD / CVBS) Range 1080p ECO.

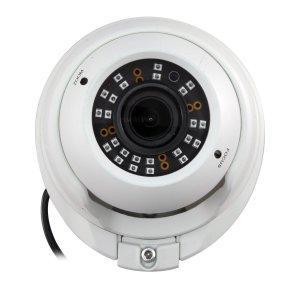

1/2.7" PrimeSensor© 2.0 Megapixel (model PS5220) & DSP (model V30), with a resolution of 1080p @ 25 FPS. Varifocal lens of 2.8 ~ 12 mm with a diagonal viewing angle of 94º to 25º. 24 SMD infrared LEDs that activate automatically providing a sharp image at 0 Lux (total darkness) up to a maximum distance of 30 m. It has automatic IR Cut filter that permits clear, real colour, daytime images.

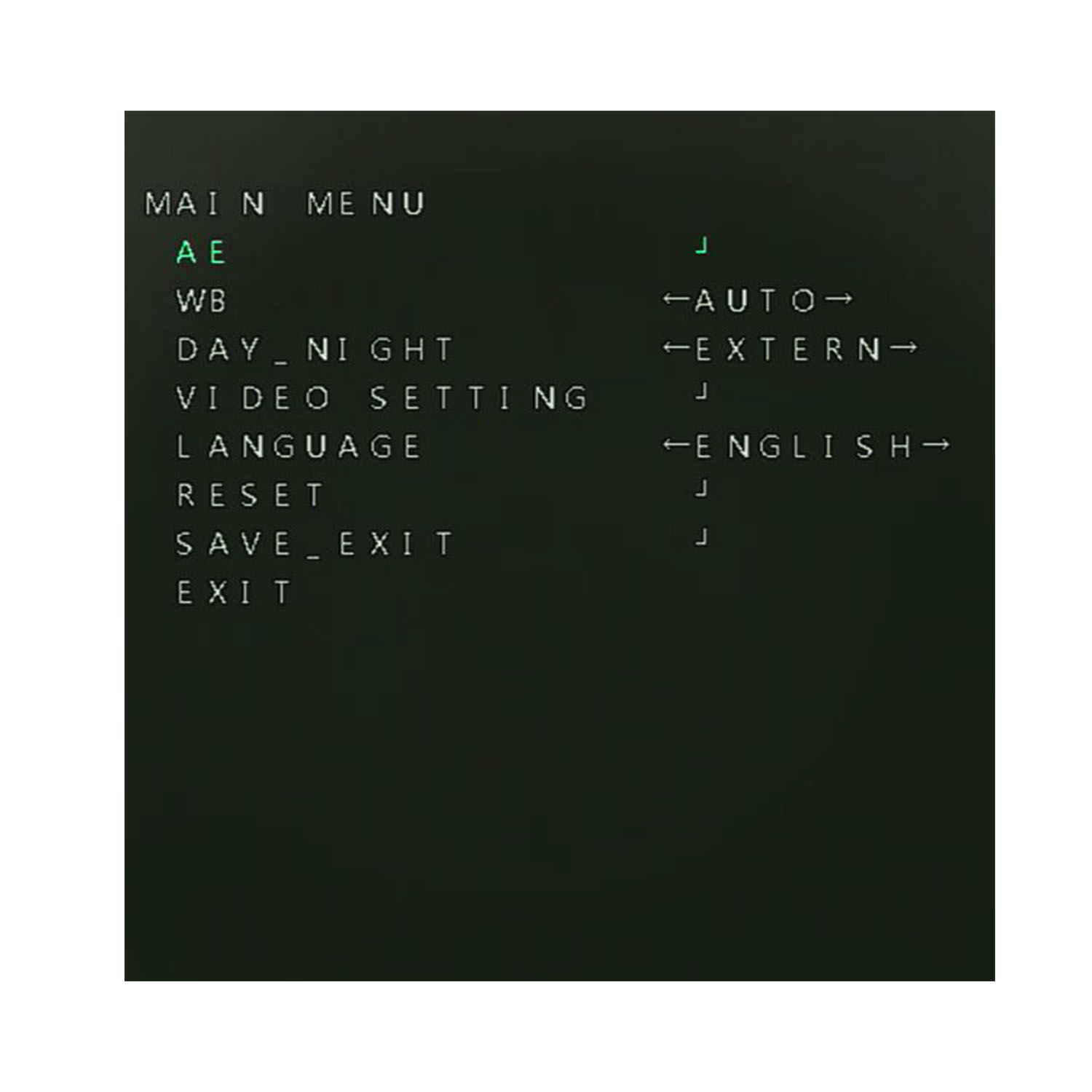

Thanks to its DSP it has OSD menu in HD formats, accessible remotely from the recorder via the coaxial cable, which allows you to configure the camera and adjust the most important parameters:

  • DM955VIB-F4N1
  • AE Shutter, automatic exposure control to optimize the input of received light
  • 2D-NR, digital noise reduction system without loss of focus
  • AWB, automatic white balance for true colours

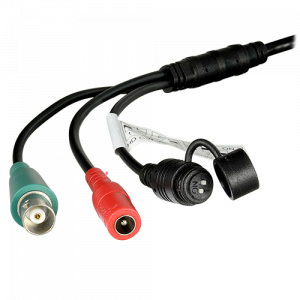

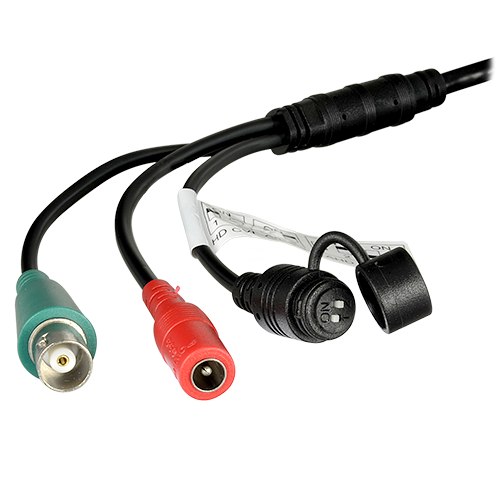

BNC video connection in switchable formats HDTVI / HDCVI / AHD / CVBS.

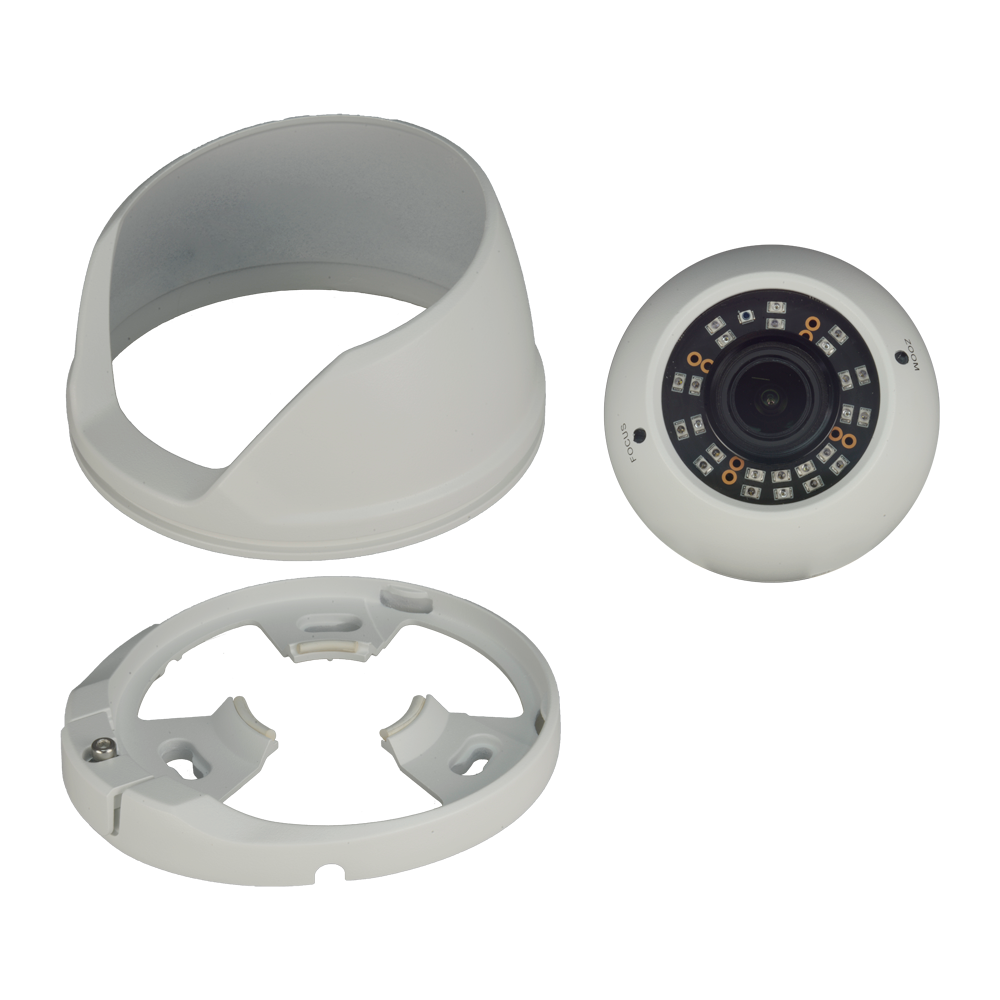

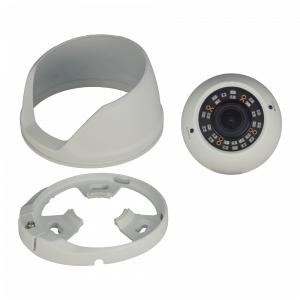

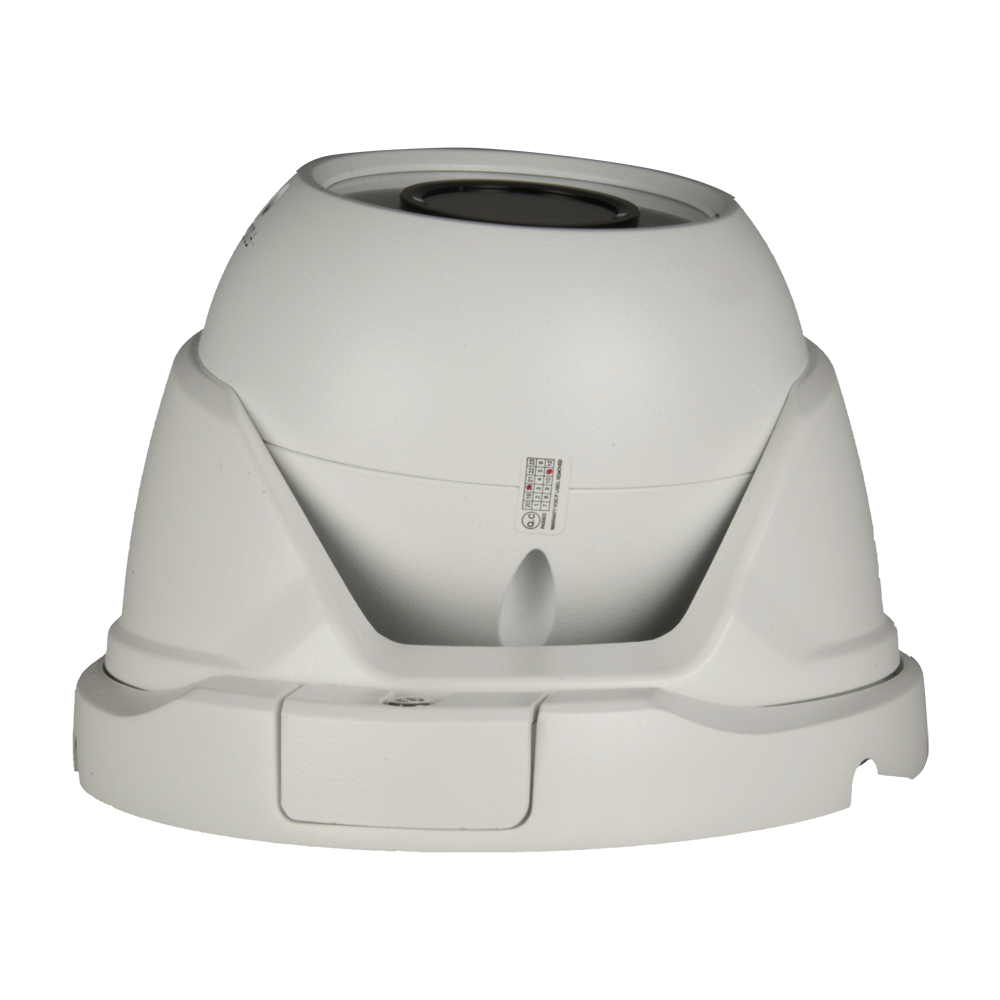

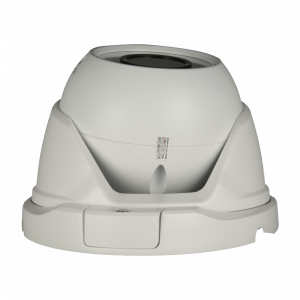

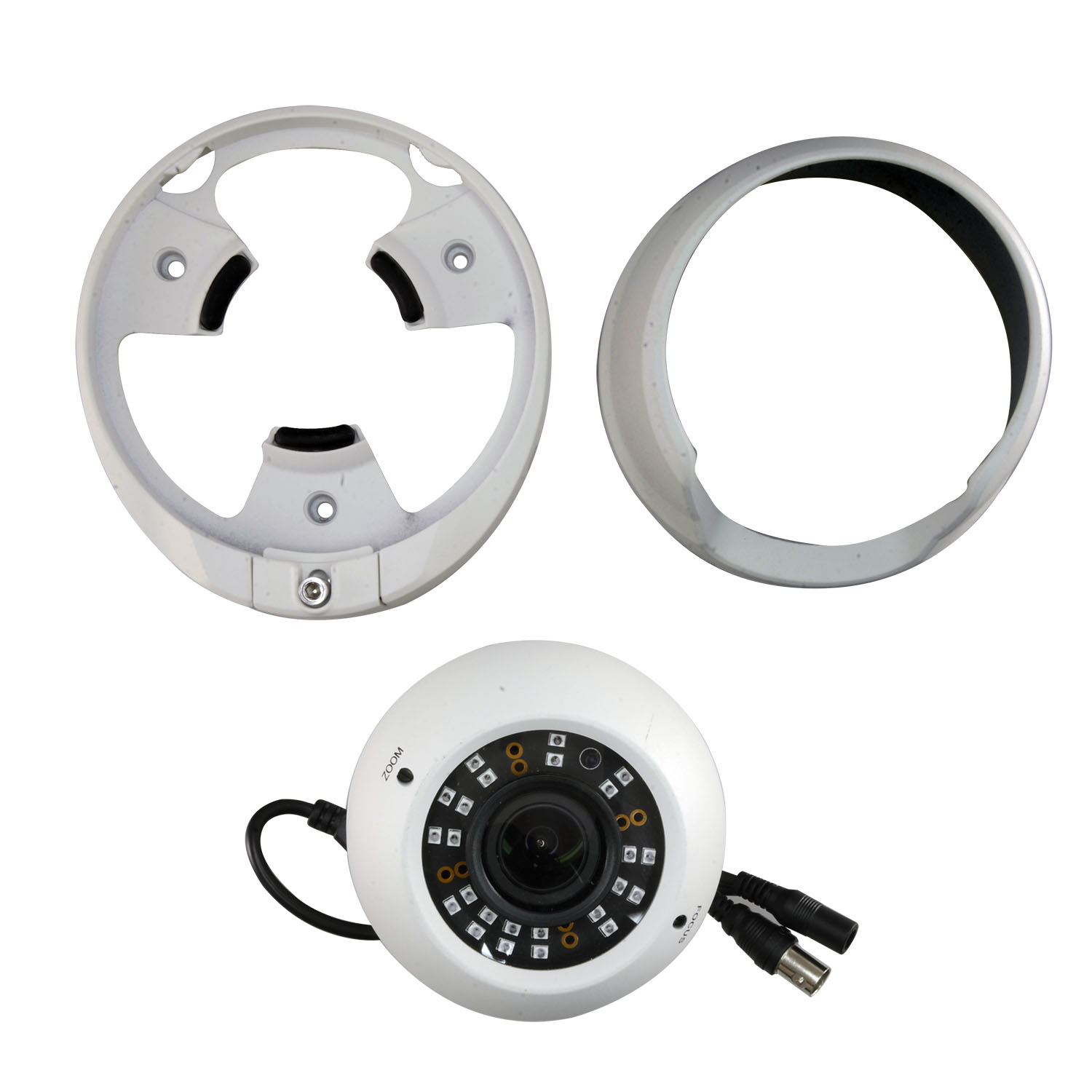

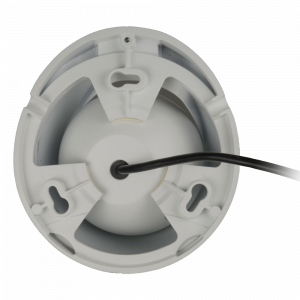

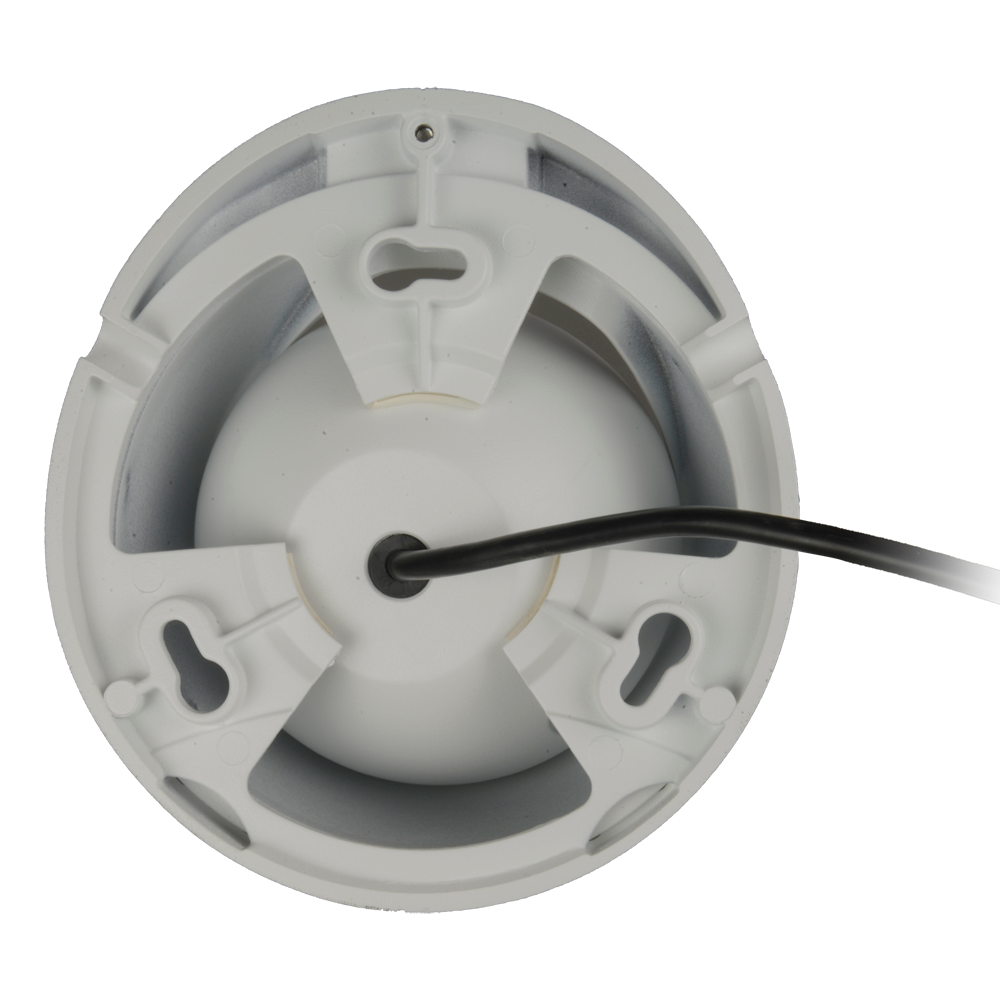

The housing is made of aluminum and is weatherproof according to protocol IP66, which makes it suitable for both indoor and outdoor. It has a sphere with three axes of rotation (3AXIS) that allow easy and accurate adjustment of the viewing angle, with wall or ceiling installation. It incorporates a screw connecting the base with the camera structure, for easy installation.

SKU DM955VIB-F4N1
Range 1080p ECO
Image sensor 1/2.7" PrimeSensor© 2.0 Megapixel (model PS5220)
DSP V30
Resolution HD 1080p (1920x1080) at 25 FPS / CVBS 1000TVL
Video output 1 x BNC switchable between HDTVI / HDCVI / AHD / CVBS
Minimum illumination 0 Lux / 24 LEDs SMD IR (30 m)
Basic functions OSD menu (remote), Day/Night with IR-CUT (ICR)
Configurable OSD functions DWDR, 2D-NR, AE, AWB, AGC
Lens Varifocal 2.8 ~ 12 mm (D: 94º ~ 25º)
Power DC 12 V / 420 mA
Degree of protection Weatherproof IP66
Temp. operation -10º C ~ +60º C
Dimensions 95 (D) x 132 (Ø) mm
Weight 650 g
