incl. VAT€920,14
Price incl. VAT: €920,14
Ex. VAT: €736,11
Total discount:
VAT: €184,03
- SKU: XTL-CH10033001

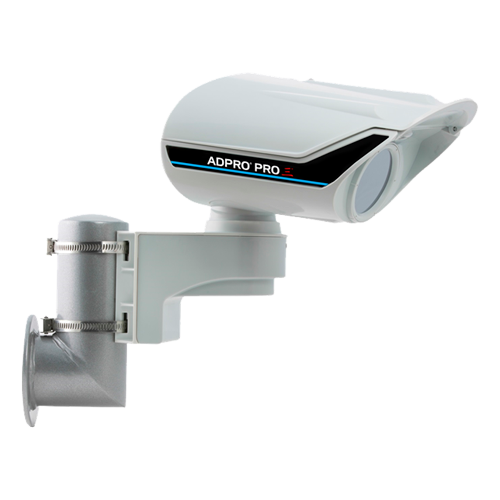

- Xtralis ADPRO PRO E-100
- PIR curtain
- 120 meters range
- 3 salidas alarma configurables
- Ground Zero Coverage
- Antimasking
Sold out / Not on stock
Product description: XTL-CH10033001
- XTL-CH10033001
- Xtralis Adpro PRO E-100
- PIR curtain
- Nominal range 120m. x 2,7m.
- Opening angle 1,3º
- Polyethylene filter
- 3 configurable alarm outputs
- Antivandalism systems: Antimasking, change of alignment, disassembly, opening of detector
- High level integration with NVR+ Adpro iFT series (RS485/IP) and Adpro eFT series (IP)
- Cobertura Zona Cero 360PROtect(TM)
- Configurable sensitivity
- Designed in compliance with EN50606 Grade III
- Protection Index IP65
- Food 10,5-30VCC or 24VCA
| SKU | XTL-CH10033001 |
| Detection type | Curtain, long range |
| Nominal range (L x W), width in nominal range | 120m. x 2,7m. |
| Opening angle | 1,3° |
| Technology 360PROtect(TM), zero angle control | From -1m. up to +8m. |
| Spectral response | 8-14μm, with double filter |
| Front filter | HDPE filter, IR-transmissive |
| Pyroelectric sensor (differential) | Three channels |
| Detection speed range | 0,2 - 5 m/s |
| Alarm outputs (programmable) | 3 |
| Alarm settings (programmable) | Main Zone Alarm; Zero Zone Alarm (360PROtec); Support Tamper Alarm; Cover Tamper Alarm; Detector Alignment Alarm; Anti-Mask Alarm; Fault Alarm (Power, Temperature, Heater) |
| Output load (max.) | 3 x Solid State Relays 75mA max. @ 60VDC |
| Supply voltage | 10,5 - 30VCC, 24VCA ±15% with auto-detection |
| Power supply current | approx. 18mA @ 12VCC, 12mA @ 24VCC, 30mA @ 24VCA (@ +25°C) excluido el calefactor |
| Heater power | Not available |
| Operating temperature | From -20°C to +60°C |
| Housing material | Luran® S (ASA) |
| IP protection grade | IP65 |
| Mounting | Wall and pole mounting: support with cables included |
| Weight (including cable support) | approx. 1650g. |
| Dimensions | 358mm. x 188mm. x 290mm. |
| CE certification (incl. RoHS II, REACH, WEEE) | All ADPRO PRO E products comply with the European Directive 2011/65/EU (RoHS II), the EC Directive 1907/2006+2011 (REACH), the European Directive 2002/96/EG (WEEE) or are not included in the scope of these directives. |
| Warranty | 24 months |
