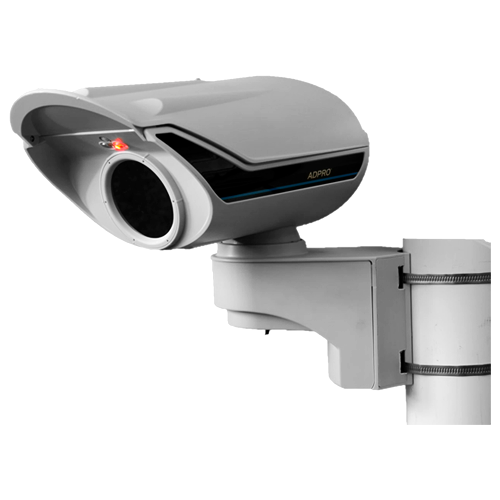

Xtralis ADPRO PRO E-45H - XTL-CH10023101

SKU: XTL-CH10023101
0 Rating
incl. VAT€704,76
Price incl. VAT: €704,76
Ex. VAT: €563,81
Total discount:
VAT: €140,95
  • SKU: XTL-CH10023101
  • Xtralis ADPRO PRO E-45H
  • PIR curtain
  • 60 meters range
  • 5 salidas alarma configurables
  • Heater
  • Ground Zero Coverage
Gls 1
Ups 1
1-4 Days delivery
COM_VIRTUEMART_NOSTOCK
  • XTL-CH10023101
  • Xtralis Adpro PRO E-45H
  • PIR curtain
  • Nominal range 60m. x 3,9m.
  • Opening angle 3,8º
  • Silicon filter
  • 5 configurable alarm outputs
  • Heater
  • Antivandalism systems: Antimasking, change of alignment, disassembly, opening of detector
  • High level integration with NVR+ Adpro iFT series (RS485/IP) and Adpro eFT series (IP)
  • Cobertura Zona Cero 360PROtect(TM)
  • Configurable sensitivity
  • Designed in compliance with EN50606 Grade III
  • Protection Index IP65
  • Food 10,5-30VCC or 24VCA
SKU XTL-CH10023101
Detection typeCurtain, medium range
Nominal range (L x W), width in nominal range60m. x 3,9m.
Opening angle3,8°
Technology 360PROtect(TM), zero angle controlFrom -1m. up to +8m.
Spectral response8-14μm, with double filter
Front filterSilicon filter
Pyroelectric sensor (differential)Single channel
Detection speed range0,2 - 5 m/s
Alarm outputs (programmable)5
Alarm settings (programmable)Main Zone Alarm; Zero Zone Alarm (360PROtec); Support Tamper Alarm; Cover Tamper Alarm; Detector Alignment Alarm; Anti-Mask Alarm; Fault Alarm (Power, Temperature, Heater)
Output load (max.)5 x Solid State Relays 75mA max. @ 60VDC
Supply voltage10,5 - 30VCC, 24VCA ±15% with auto-detection
Power supply currentapprox. 18mA @ 12VCC, 12mA @ 24VCC, 30mA @ 24VCA (@ +25°C) excluido el calefactor
Heater powerapprox. 0.5W / ~41mA @ 12VDC y -40°C
Operating temperatureFrom -40°C to +60°C
Housing materialLuran® S (ASA)
IP protection gradeIP65
MountingWall and pole mounting: support with cables included
Weight (including cable support)approx. 1650g.
Dimensions358mm. x 188mm. x 290mm.
CE certification (incl. RoHS II, REACH, WEEE)All ADPRO PRO E products comply with the European Directive 2011/65/EU (RoHS II), the EC Directive 1907/2006+2011 (REACH), the European Directive 2002/96/EG (WEEE) or are not included in the scope of these directives.
Warranty24 months
