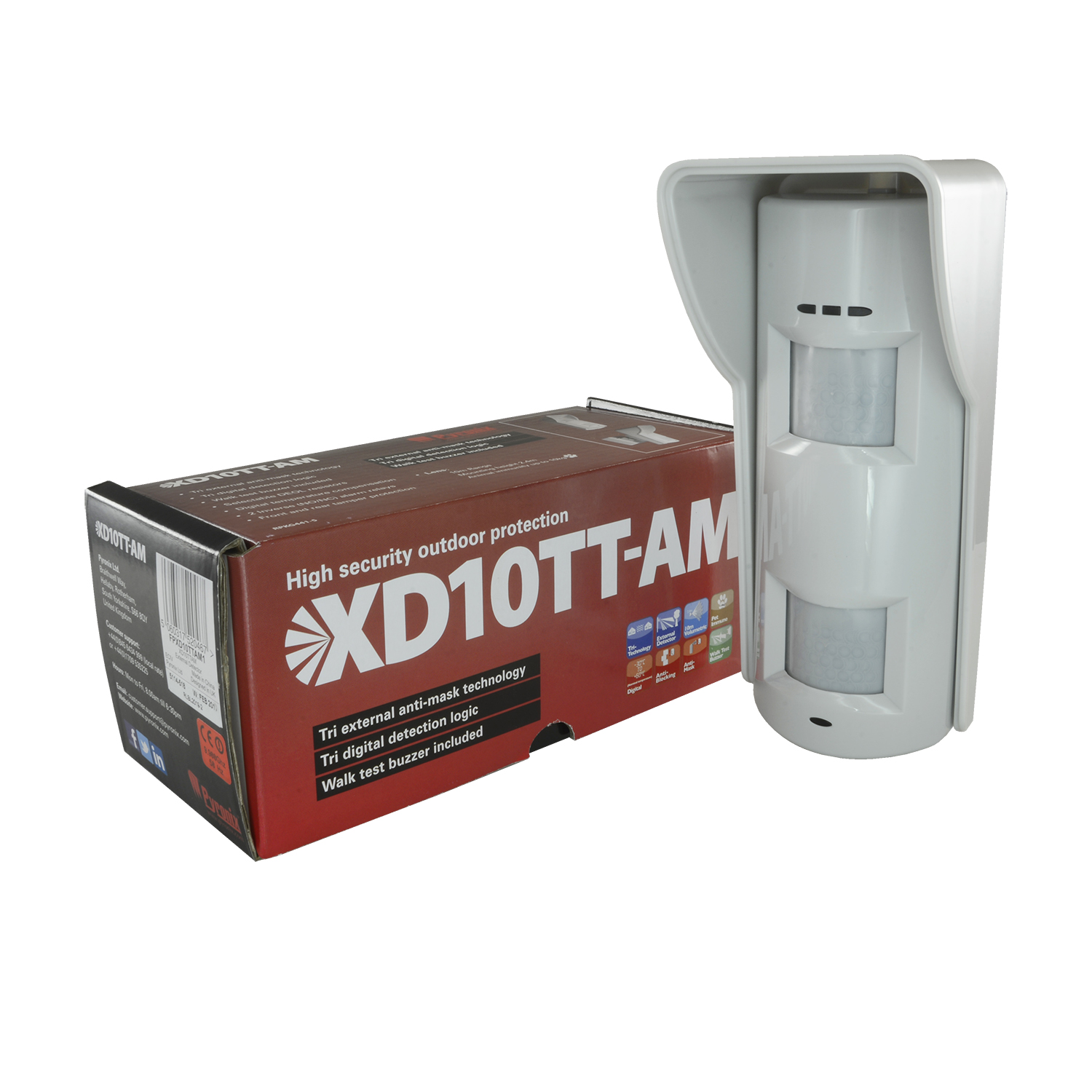

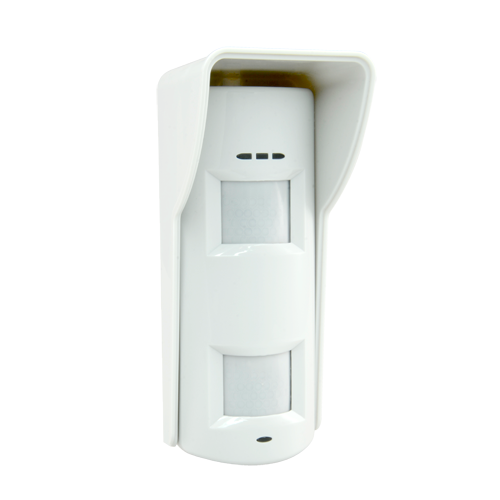

Triple technology PIR Detector - XDH10TT-AM

0 Rating
incl. VAT€92,88
Price incl. VAT: €92,88
Ex. VAT: €74,31
Total discount:
VAT: €18,58
In Stock
SKU: XDH10TT-AM
  • SKU: XDH10TT-AM
  • Triple technology PIR Detector
  • Anti-masking function
  • Valid for exterior use
  • 2 Infrared, 1 Microwaves
  • Detection Range 10 m
  • Certificate Grade 2
Gls 1
Ups 1
1-4 Days delivery
 Back to: Alarms
Cards 1

Pyronix high-security volumetric PIR detector. Wired, triple pet immune technology and suitable for outdoor.

Wired motion detector, especially designed to cover outdoor areas. Effective and safe detection due to its triple technology: 2 passive infrared dual sensors with low noise and 1 Doppler microwave unit operating in an intelligent and coordinated manner to avoid usual false alarms outdoor.

It is a high protection device with certificate 2, that incorporates multiple improvements that increase the system security:

  • XDH10TT-AM
  • - Long-range PIR detection with 78 zones and 5 levels
  • - Wide coverage (10 m in 90º for H = 2.4 m)
  • - Pet immunity (≤ 10 Kg for H = 2.4 m)
  • - Adjustable anti-masking technology that protects the 3 sensors
  • - Ultraviolet filters to avoid performance reduction
  • - Automatic compensation for surrounding temperature
  • - 3 different microwave frequency bands to avoid interference
  • - Detection speed 0.25~2.5 m/s
  • - System that prevents interference from the wind and other natural elements
  • - Blocking system to avoid obstructions to the detector
  • - Double anti-opening tamper system

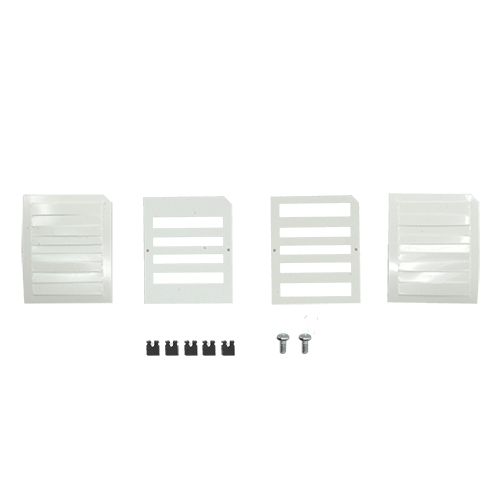

In addition to its high reliability, it has several advantages regarding use and installation as LEDs for easy configuration, the buzzer for test ride, PIR masks lens with grid or triple rolling resistance system by jumper that allows to tend a single cable for Alarm (3 outputs), Antimasking and Tamper.

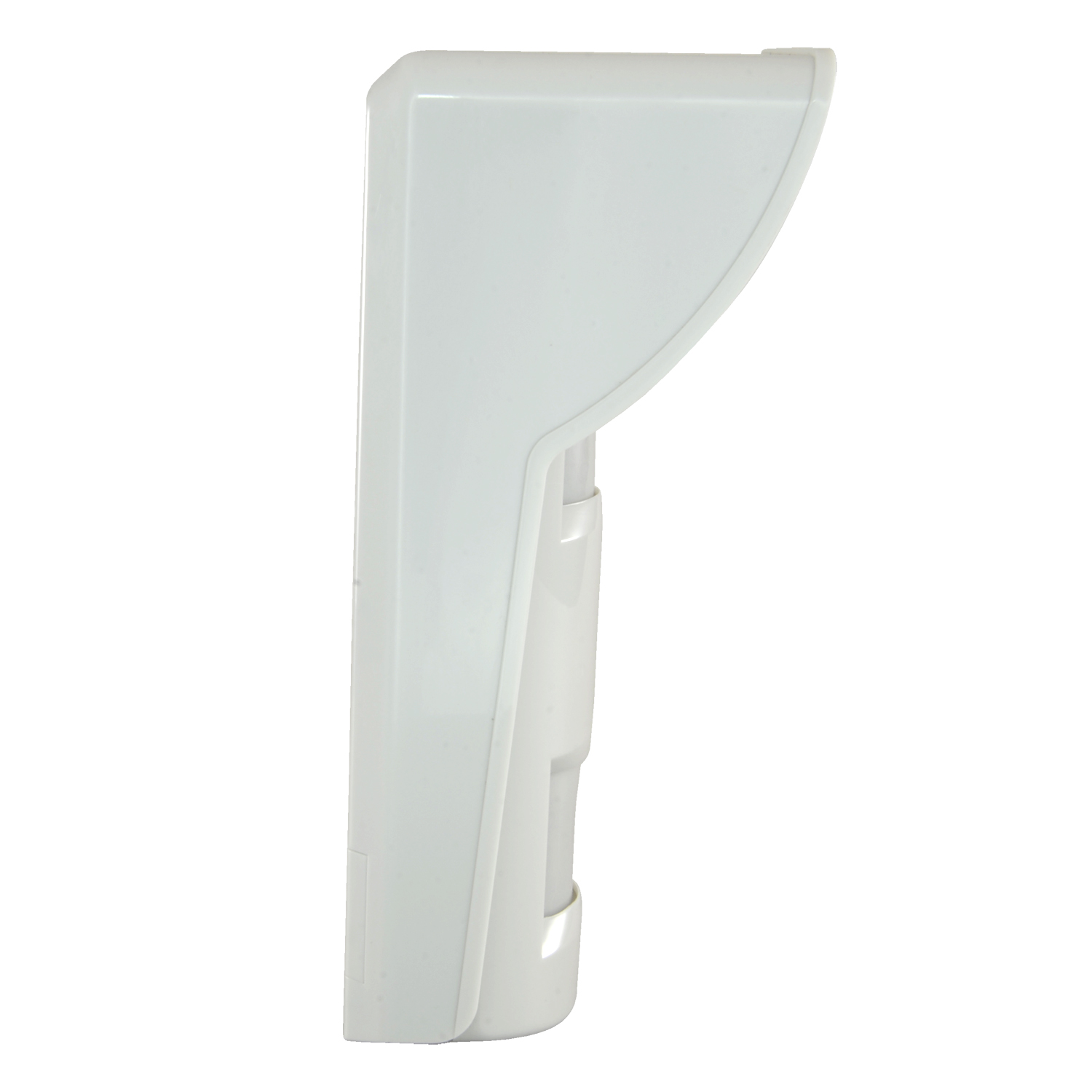

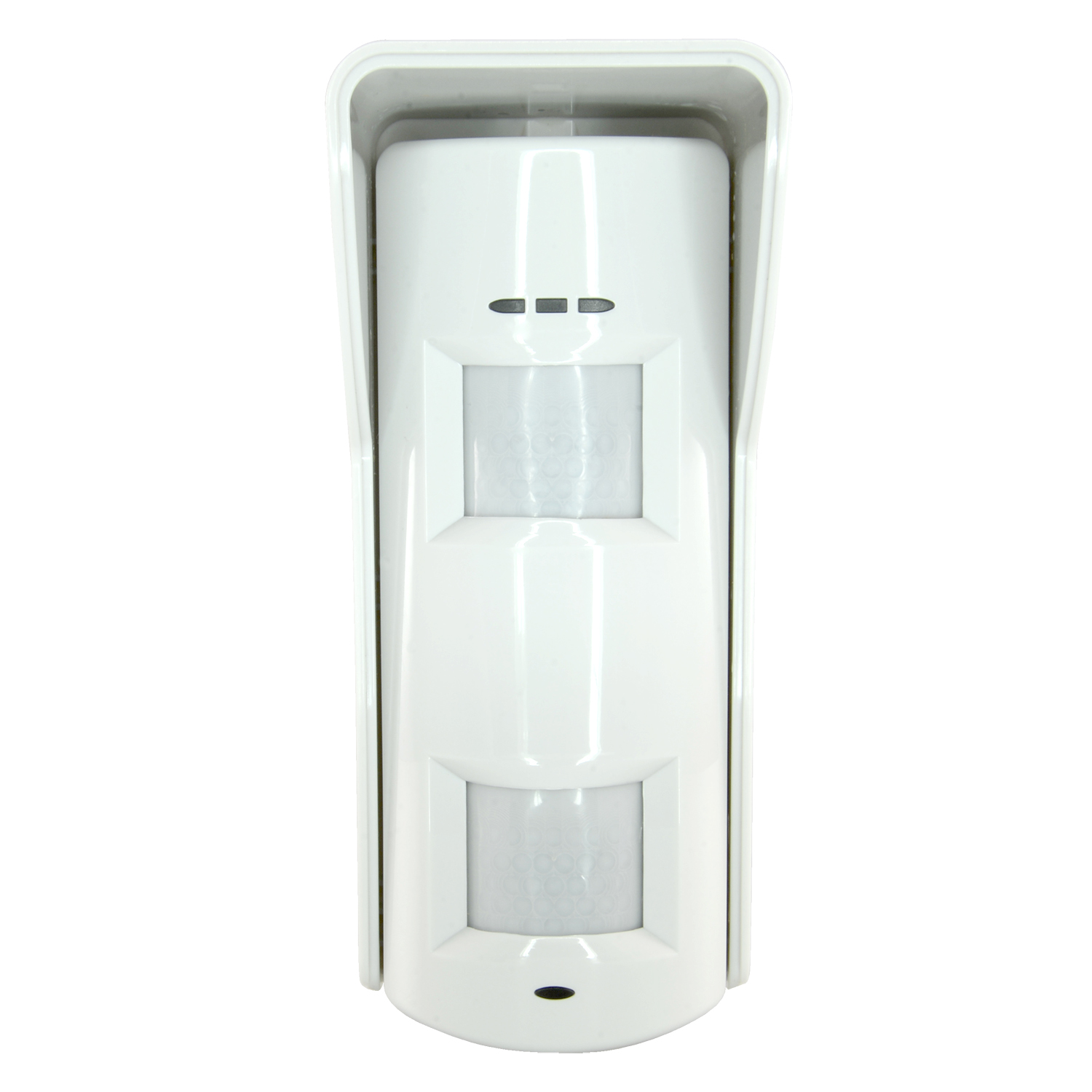

Polycarbonate housing with visor suitable for outdoor. Various wall brackets available.

SKU XDH10TT-AM
Brand Pyronix
Technology 2 x PIR and 1 x Microwaves
PIR lens 78 zones and 5 planes
Detection range 10 m / 90º for installation height = 2.4 m
Pet immunity ≤ 10 Kg
Masking Adjustable from 0 to 1 m
Sensitivity Adjustable Automatic or High
Detection speed 0.25~2.5 m/s
Relay Output 3 x SELV, DC 60 V 50 mA
Tamper switch Front and rear, DC 12 V 50 mA
Security certified Grade 2
Temp. operation -30º C ~ 70º C
Dimensions (without bracket) 190 (H) x 82 (W) x 82 (D) mm
