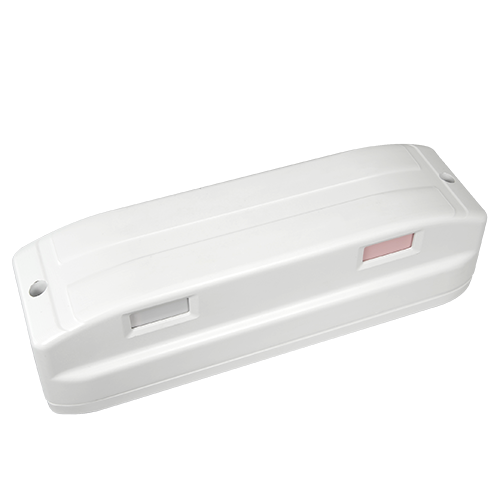

PIR detector - SOP-BR-S

0 Rating
incl. VAT€104,74
Price incl. VAT: €104,74
Ex. VAT: €83,79
Total discount:
VAT: €20,95
In Stock
SKU: SOP-BR-S
  • SKU: SOP-BR-S
  • PIR detector
  • Integrated Ajax Transmitter
  • Curtain type, double PIR on each side
  • 9 m of detection on each side
  • Reach in open space 1600 m
  • Outdoor use
Gls 1
Ups 1
1-4 Days delivery
 Back to: Alarms
Cards 1
  • SOP-BR-S
  • Sopras
  • Outdoor curtain detector with low consumption
  • Bidirectional
  • Double PIR per side
  • Detection: Range 9 m on each side
  • Motion detection indicator
  • Tamper-resistant opening
  • Range in open space 1600 m
  • Power supply 1 battery ER14505 3.6 V
  • Outdoor use
  • Degree of protection IP65
  • Includes mounting bracket
  • White colour
  • Includes AJAX transmitter for wireless communication with AJAX panels
SKU SOP-BR-S
Technology Double PIR curtain type
PIR lens 4 zones (2 on each side)
Detection range 9 m / Installation 1~1.2 m
Frequency 868 MHz Jeweller with Ajax transmitter included
Transmission distance ≤ 1600 m in open space
Masking Not available
PIR Sensitivity Adjustable. 3 levels on each side
Tamper-resistant opening Available
LEDs indication Alarm
DIP switch configuration Activation, PIR range and AND/OR (independent on each side), Battery Saving Mode and LEDs
Wired outputs Alarm left side, alarm right side, tamper and transmitter power supply
Power supply 1 battery ER14505 3.6V
Consumption Minimal consumption (Rest: 29uA / Maximum: 0.9 mA)
Temp. operation -20 ºC ~ 70 ºC
Degree of protection IP65
Dimensions 220 (H) x 70 (W) x 60 (D) mm
Weight 550 g
