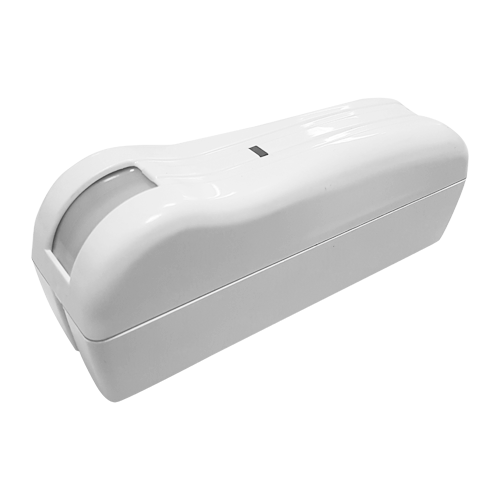

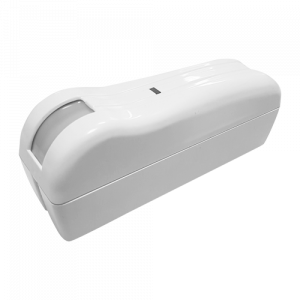

PIR detector - SOP-9DT-PRO

0 Rating
incl. VAT€98,81
Price incl. VAT: €98,81
Ex. VAT: €79,05
Total discount:
VAT: €19,76
In Stock
  • PIR detector
  • Microwave and PIR curtain
  • Integrated Ajax Transmitter
  • Detection range 10 m
  • Antimasking Technology
  • Reach in open space 1200 m
Gls 1
Ups 1
1-4 Days delivery
 Back to: Alarms
Cards 1
  • Sopras
  • Outdoor curtain detector with low consumption
  • Bidirectional
  • Double technology: double PIR and microwave with antimasking
  • Detection: Range 10m / H: 7.5º V: 48º
  • Motion detection indicator
  • Tamper-resistant opening
  • Range in open space 1200 m
  • Power supply 1 battery ER14505 3.6 V (included)
  • Outdoor use
  • Degree of protection IP54
  • Includes mounting bracket
  • White colour
  • Includes AJAX transmitter for wireless communication with AJAX panels
Technology Double technology: double PIR and microwave with antimasking
Detection range 10 m / H: 7.5º V: 48º / Installation 2.1 m
Frequency 868 MHz Jeweller (Ajax transmitter included)
Transmission distance ≤ 1200 m in open space
Masking Available
Sensitivity Adjustable for PIR and Microwave. 3 levels
Tamper-resistant opening Available
LEDs indication Alarm
DIP switch configuration PIR sensitivity, Microwave sensitivity, Antimasking, Battery saving mode and LEDs
Wired outputs Alarm and tamper
Power supply 1 battery ER14505 3.6V
Consumption Minimal consumption (Rest: 50uA / Maximum: 15 mA)
Temp. operation -20 ºC ~ 70 ºC
Degree of protection IP54
Accessories L shaped bracket and shield included
Dimensions 140 (H) x 43 (W) x 60 (D) mm
