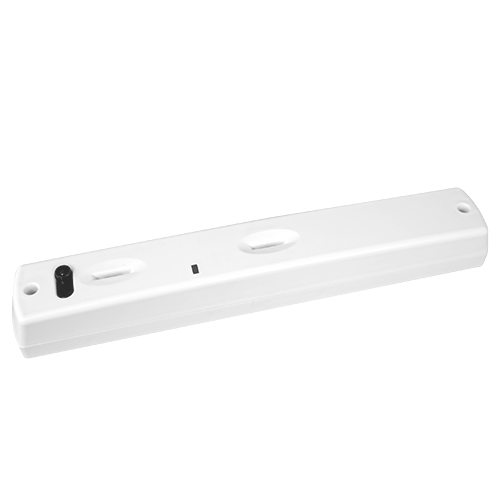

PIR detector - SOP-2IRDT-W

0 Rating
incl. VAT€110,67
Price incl. VAT: €110,67
Ex. VAT: €88,54
Total discount:
VAT: €22,13
In Stock
SKU: SOP-2IRDT-W
  • SKU: SOP-2IRDT-W
  • PIR detector
  • Integrated Ajax Transmitter
  • Microwave and double PIR curtain type
  • Detection range 3 m
  • Antimasking Technology
  • Reach in open space 1200 m
Gls 1
Ups 1
1-4 Days delivery
 Back to: Alarms
Cards 1
  • SOP-2IRDT-W
  • Sopras
  • Outdoor curtain detector with low consumption
  • Bidirectional
  • Double technology: double PIR and microwave with antimasking
  • Detection: Range 3 m / 35º
  • Motion detection indicator
  • Tamper-resistant opening
  • Range in open space 1200 m
  • Power supply 1 battery ER14505 3.6 V
  • Outdoor use
  • Degree of protection IP54
  • Includes mounting bracket
  • White colour
  • Includes AJAX transmitter for wireless communication with AJAX panels
SKU SOP-2IRDT-W
Technology Microwave y doble PIR tipo cortina con Antimasking
Microondas 24 GHz / Adjustable
PIR lens 2 zones
Detection range 3 m / 35º
Frequency 868 MHz Jeweller with Ajax transmitter included
Transmission distance ≤ 1200 m in open space
Masking Available
Tamper-resistant opening Available
LEDs indication Alarm
DIP switch configuration Antimasking, AND/OR function, impulse counter (1 or 2), Microwave and LEDs
Wired outputs Alarm, tamper and transmitter power supply
Power supply 1 battery ER14505 3.6V
Consumption Minimal consumption (Rest: 30 uA / Maximum: 20 mA)
Temp. operation -20 ºC ~ 50 ºC
Degree of protection IP54
Dimensions 295 (H) x 37 (W) x 32 (D) mm
Weight 150 g
