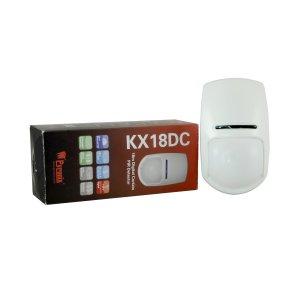

PIR Detector curtain type - KX18DC

0 Rating
incl. VAT€23,72
Price incl. VAT: €23,72
Ex. VAT: €18,97
Total discount:
VAT: €4,74
In Stock
  • SKU: KX18DC
  • PIR Detector curtain type
  • For interior use
  • 1 Dual Infrared Sensor
  • Wired
  • Detection Range 18/30 m
  • Certificate Grade 2
Gls 1
Ups 1
1-4 Days delivery
 Back to: Alarms
Cards 1

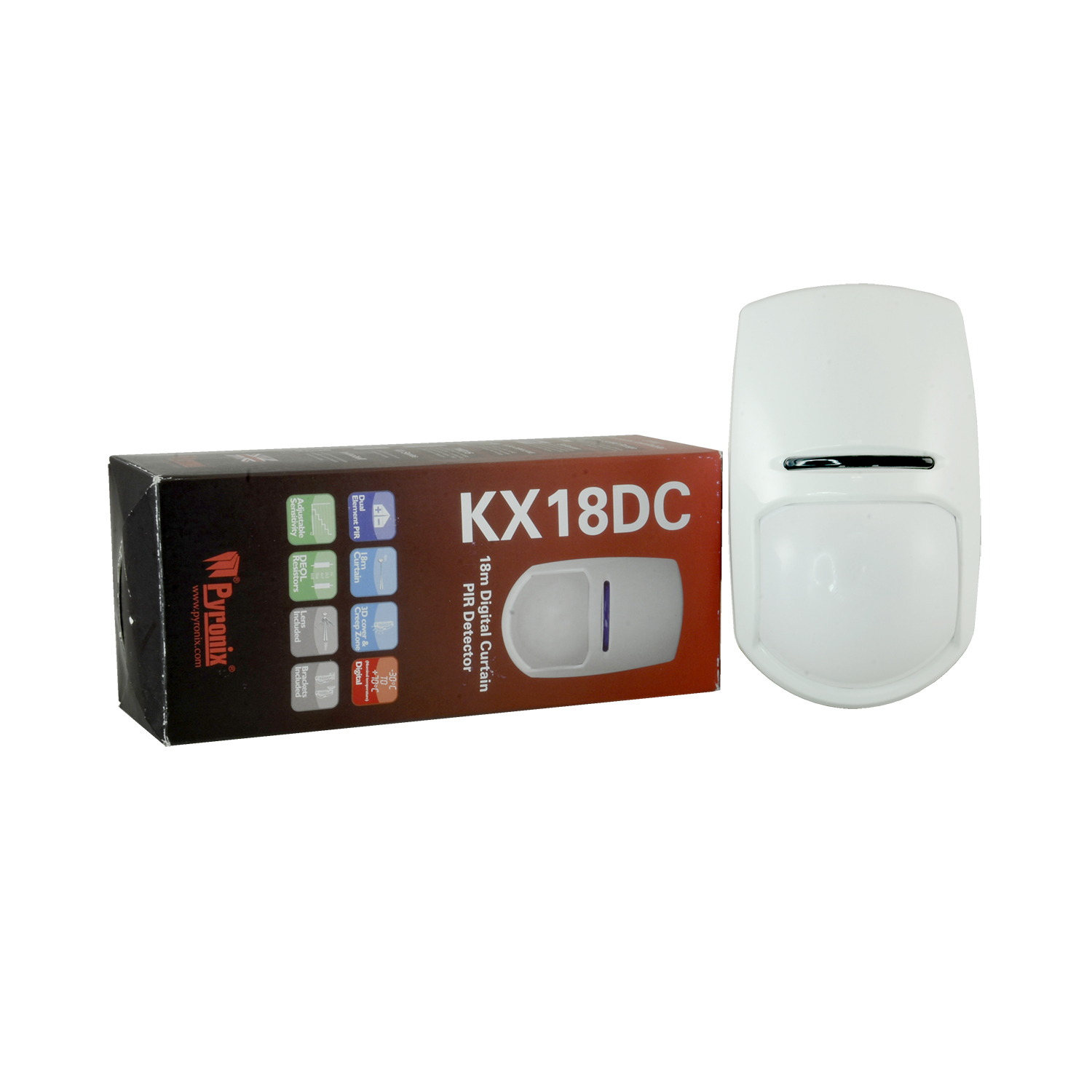

Pyronix high-security volumetric PIR detector. Wired, curtain type beam, for interior use.

Wired movement detector with curtain type vertical beam, specifically for interior areas. Effective detection thanks to its dual passive infrared sensor and Blue Wave technology which reduces IR signal noise and improves its immunity to false alarms.

It is a high protection device with certificate 2, that incorporates multiple improvements that increase the system security:

  • KX18DC

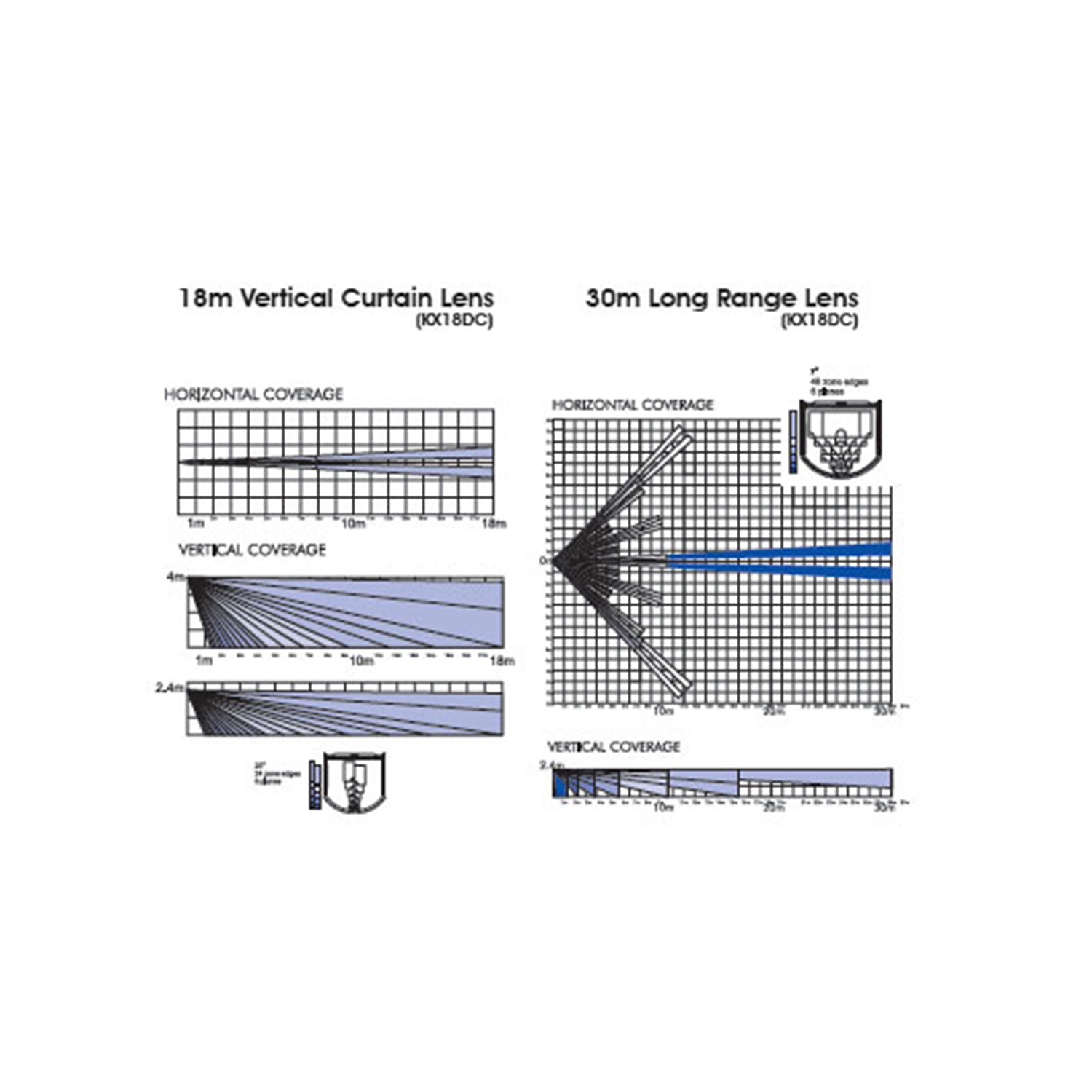

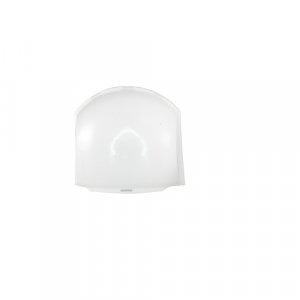

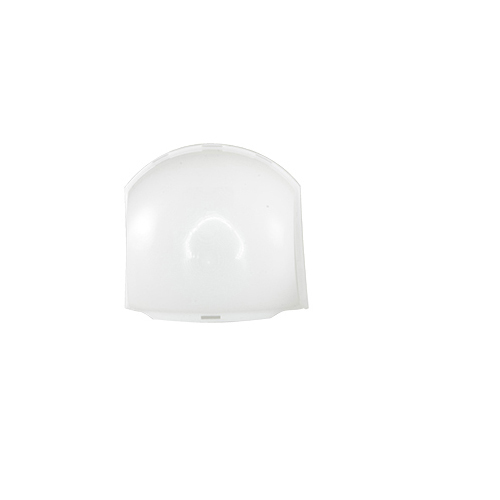

  • PIR detection which permits up to 2 different lenses to be fitted:
  • Curtain-format lens with 24 zones and 6 levels (18 m in 20º for H = 2.4~4 m)
  • Long range lens with 46 zones & 6 planes (15m in 90º with beam dimensions of 30m for H = 2.4m)
  • Automatic (and manual) sensibility adjustment
  • Automatic compensation of ambient temperature
  • Detection speed 0.3~3 m/s
  • Sealed optics to avoid false detection's by insects or air currents
  • EOL Selector (resistance) SEOL / DEOL
  • Tamper-resistant opening
  • LED indicator assists with configuration

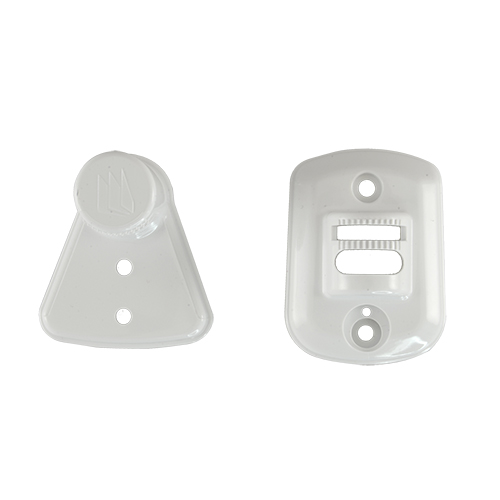

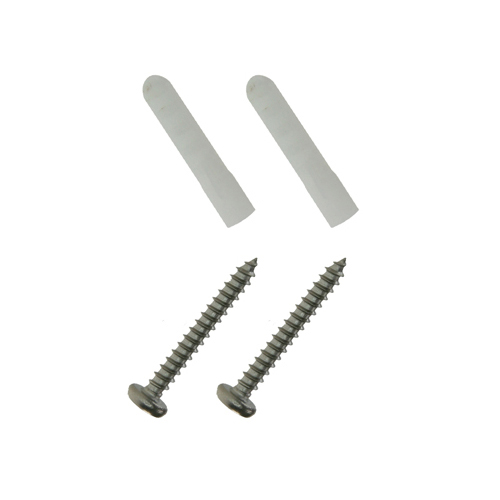

Casing manufactured in 4mm ABS (DE polished) to reduce static electricity in the detector. Wall and ceiling mounts included.

Brand Pyronix
Technology 1 x dual PIR
PIR lens 2 available lenses 1/2: 24/46 Zones & 6/6 planes
Detection range 18/30m in 20º/90º for H installation = 2.4~4/2.4m
Pet immunity No
Masking No
Sensitivity Adjustable Automatic or High
Detection speed 0.3~3 m/s
Relay Output DC 60 V / 50 mA
Tamper switch DC 12 V / 50 mA
Power supply DC 9~16 V / 13~16 mA @ DC 12 V
Temp. operation -30º C ~ 70º C
Dimensions (without bracket) 114 (H) x 67 (W) x 47 (D) mm
