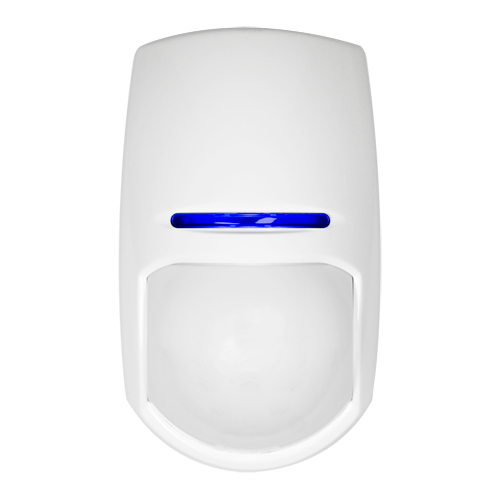

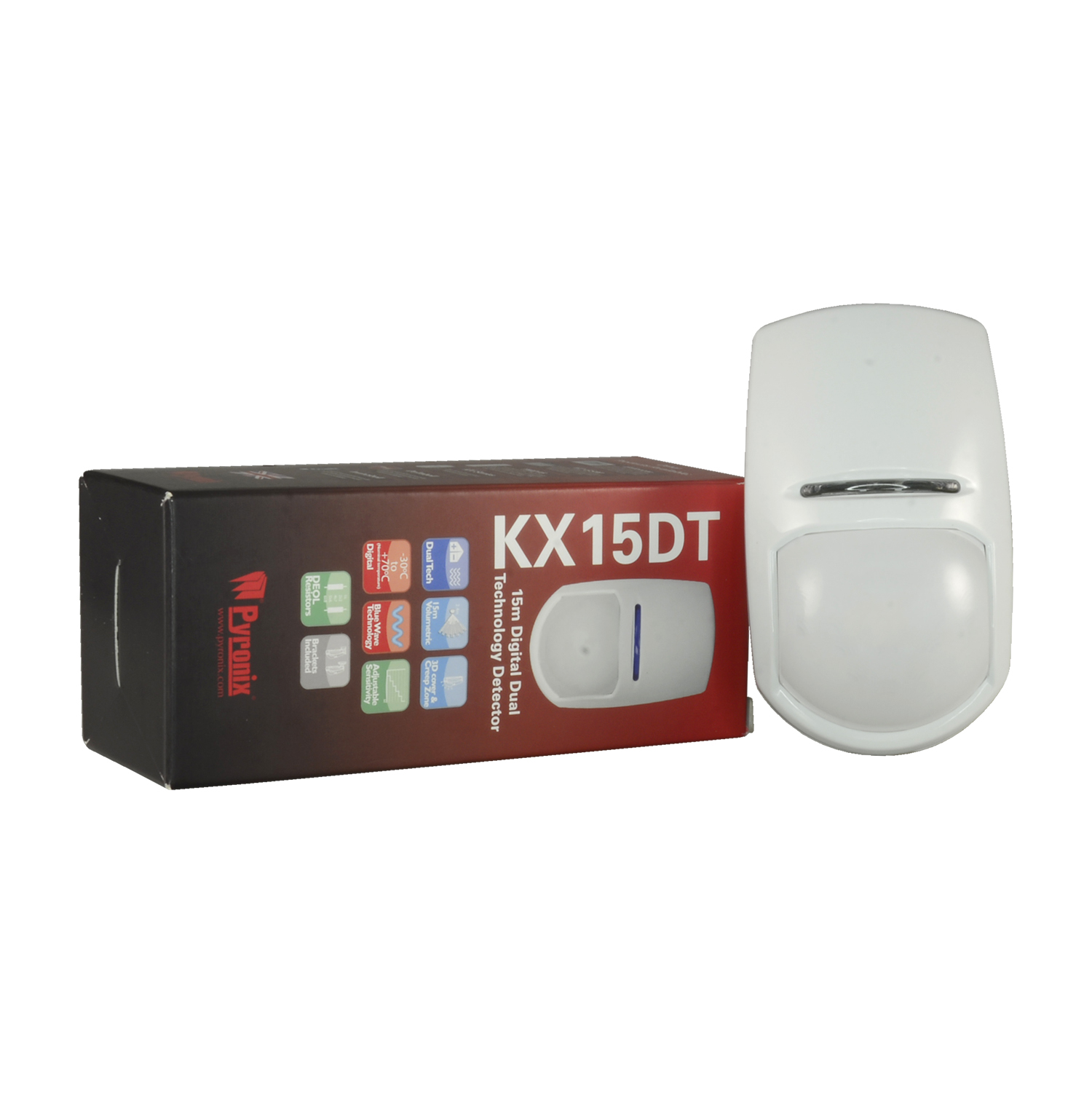

PIR detector with double technology - KX15DT

0 Rating
incl. VAT€27,27
Price incl. VAT: €27,27
Ex. VAT: €21,82
Total discount:
VAT: €5,45
In Stock
  • SKU: KX15DT
  • PIR detector with double technology
  • For interior use
  • 1 x infrared PIR, 1 x Microwave
  • Wired
  • Detection Range 15 m
  • Certificate Grade 2
Gls 1
Ups 1
1-4 Days delivery
 Back to: Alarms
Cards 1

Pyronix high-security volumetric PIR detector. Wired, double technology, apt for indoor.

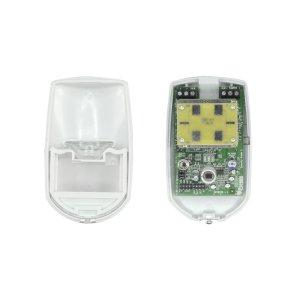

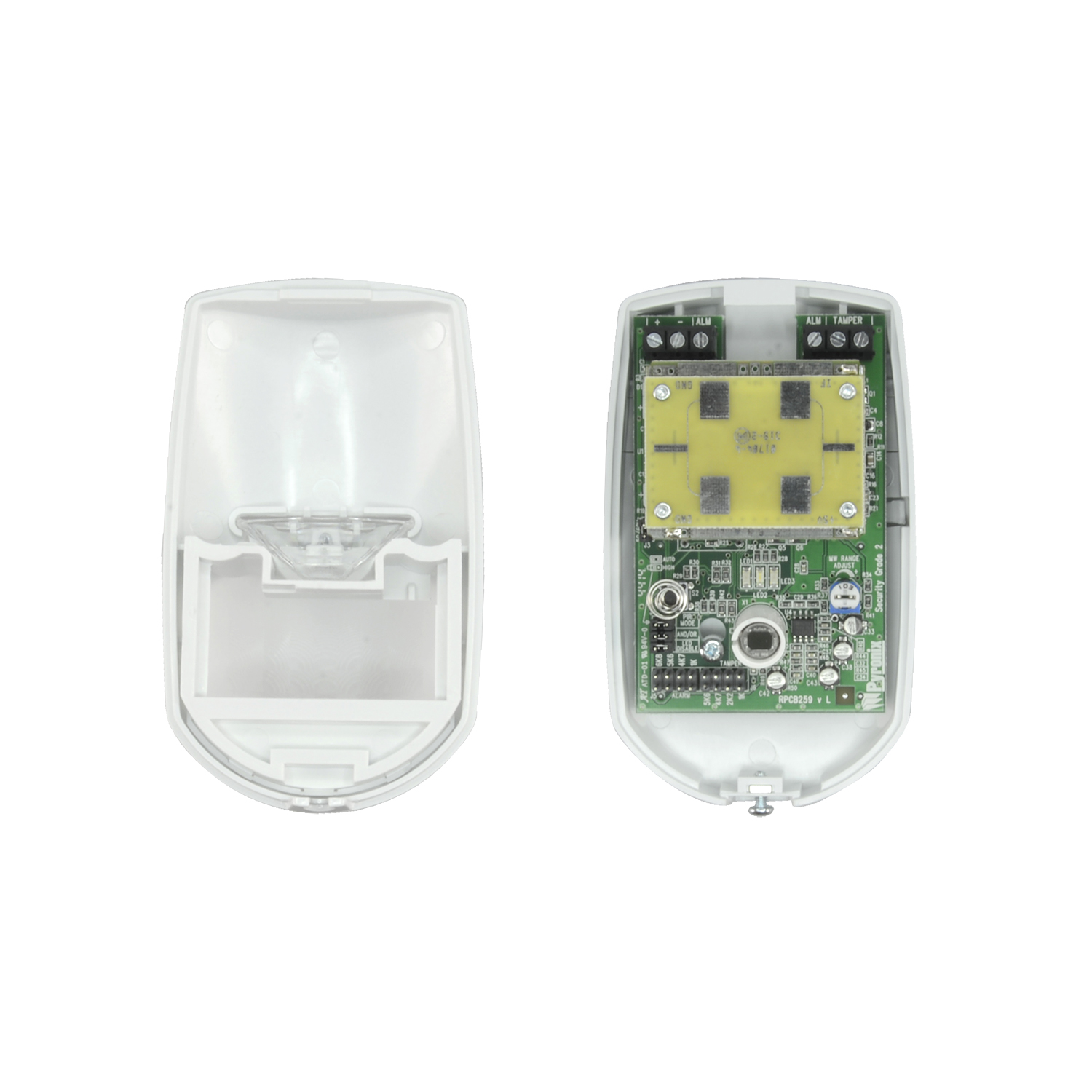

Highly reliable wired motion detector, specifically designed for covering indoor areas. Effective detection thanks to double technology: 1 dual passive infrared sensor and 1 Doppler microwave unit that works intelligently and coordinated to avoid false alarms. Incorporates Blue Wave technology to reduce the signal to noise ratio and improve the detectors immunity to infrared noise.

It is a high protection device with certificate 2, that incorporates multiple improvements that increase the system security:

  • KX15DT
  • Microwave sensor ((15m with H = 2.4m)
  • Switchable mode AND (default: double technology) / OR (microwave only)
  • Long Range PIR detection with 60 zones and 7 planes

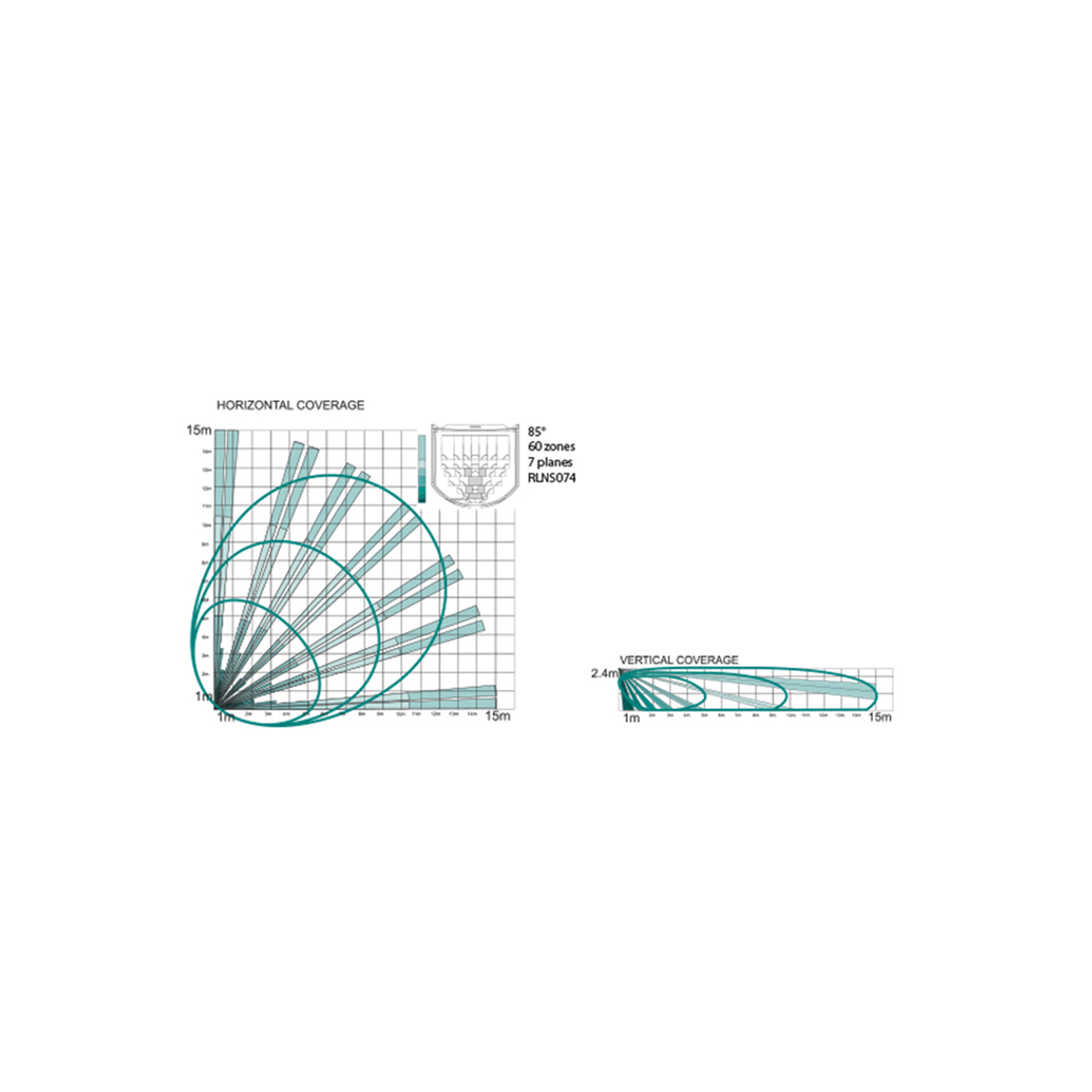

  • Large coverage thanks to its lens 3D (15m in 85º for H = 2.4m)
  • Automatic (and manual) sensibility adjustment
  • Automatic compensation of ambient temperature
  • Detection speed 0.3~3 m/s
  • Sealed optics to avoid false detection's by insects or air currents
  • EOL Selector (resistance) SEOL / DEOL
  • Tamper-resistant opening
  • LED indications to facilitate installation and configuration

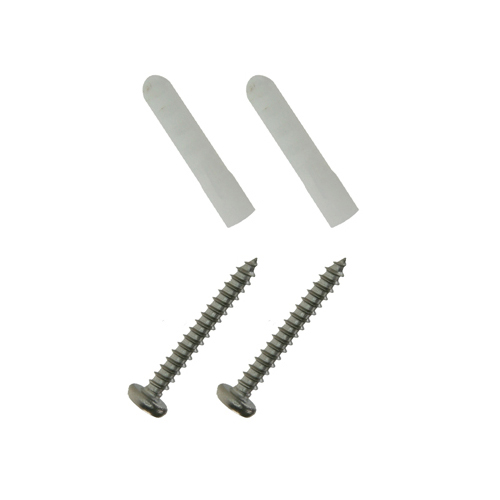

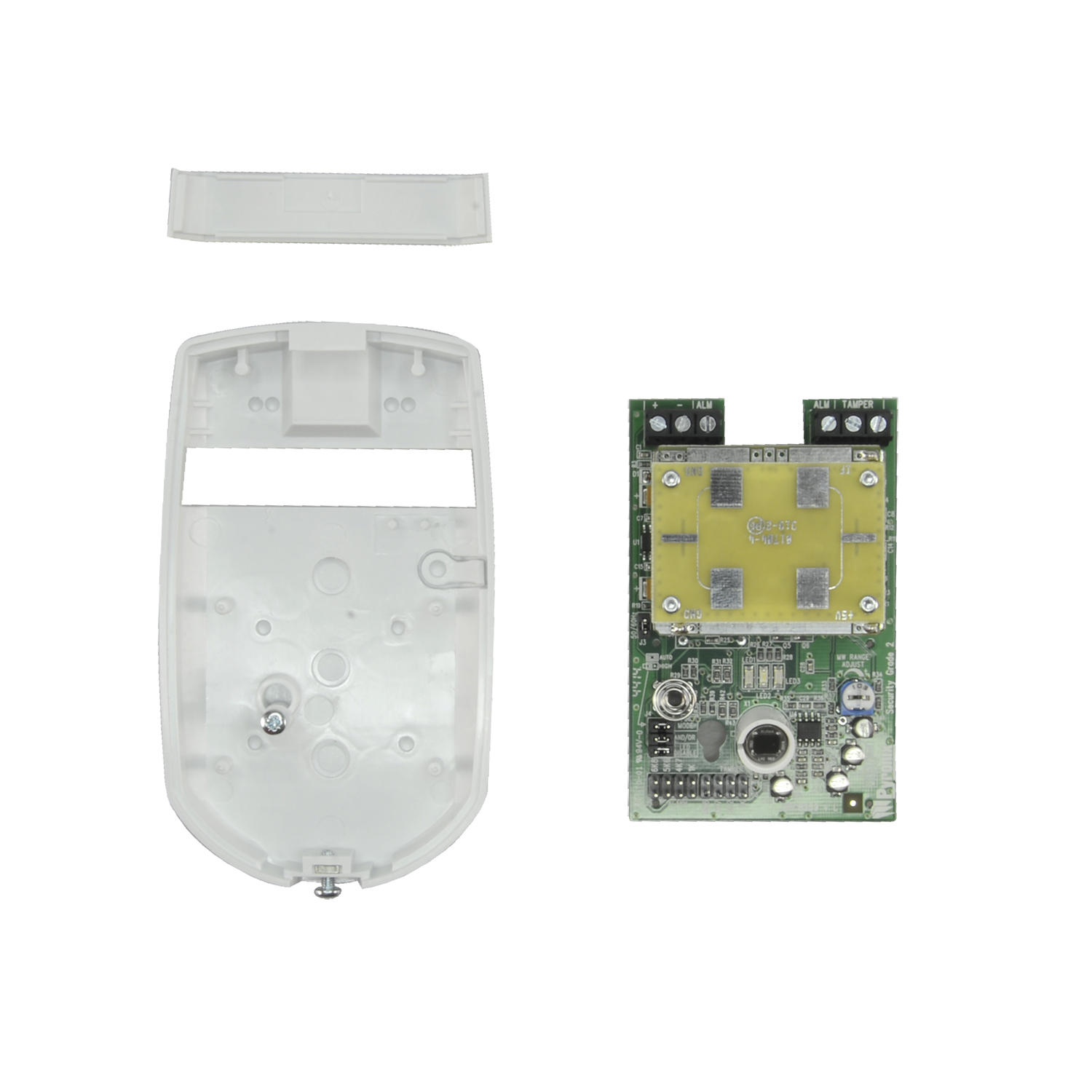

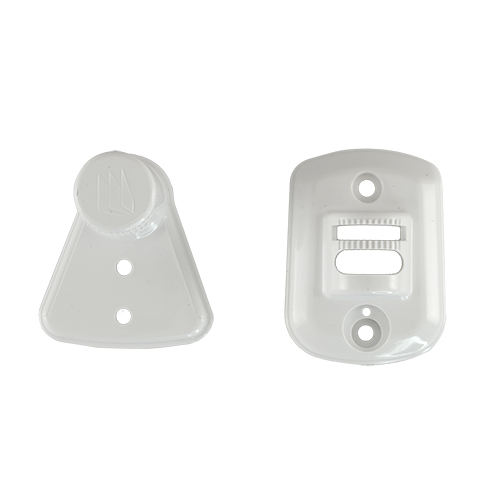

Casing manufactured in 4mm ABS (DE polished) to reduce static electricity in the detector. Wall and ceiling mounts included.

Brand Pyronix
Technology 1 x PIR + 1 x Microwave with AND/OR function
PIR lens 60 zones and 7 planes
Detection range 15 m / 85º for installation height = 2.4 m
Pet immunity No
Masking No
Sensitivity Adjustable Automatic or High
Detection speed 0.3~3 m/s
Relay Output DC 60 V / 50 mA
Tamper switch DC 12 V / 50 mA
Power supply DC 9~16 V / 13~16 mA @ DC 12 V
Temp. operation -30º C ~ 70º C
Dimensions (without bracket) 114 (H) x 67 (W) x 47 (D) mm
