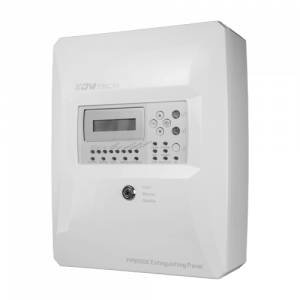

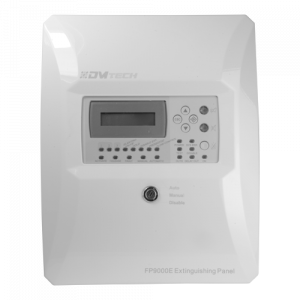

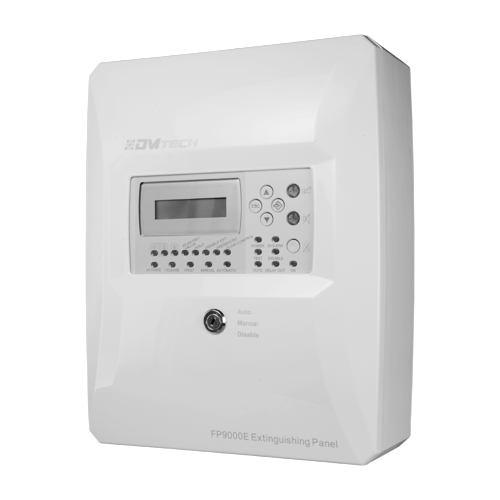

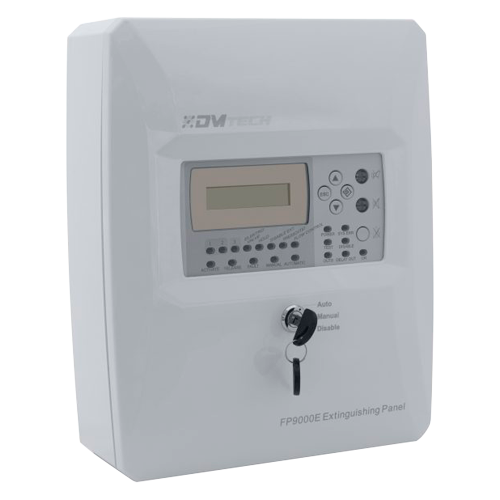

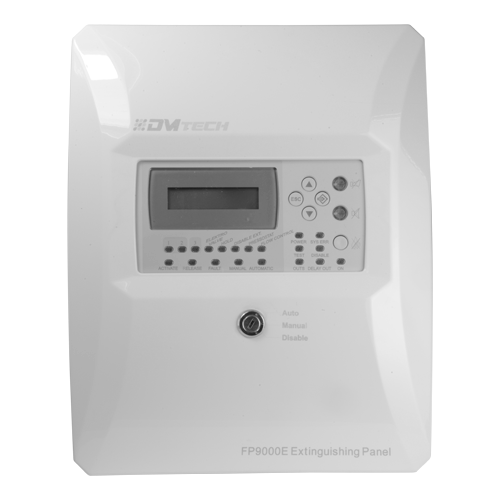

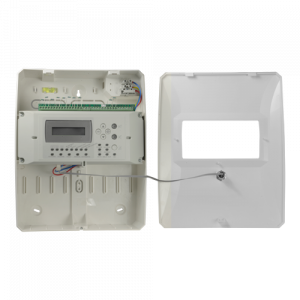

Conventional detection and extinguishing station - DMT-FP9000E

SKU: DMT-FP9000E
0 Rating
incl. VAT€281,06
Price incl. VAT: €281,06
Ex. VAT: €224,85
Total discount:
VAT: €56,21
  • SKU: DMT-FP9000E
  • Conventional detection and extinguishing station
  • 2 extinguishing lines and conventional detection 1 zone
  • 2 Siren output
  • Multiple configurable relay and open-collector outputs
  • Multiple inputs for pushbutton types
  • LCD screen and advanced programming menu
Gls 1
Ups 1
1-4 Days delivery
+50 on stock
  • DMT-FP9000E
  • DMTECH
  • Conventional detection and extinguishing station
  • 2 extinction lines
  • 1 conventional fire detection zone
  • Cross zone connection of detector 2 wires in the flood area
  • Multiple inputs for pushbutton types
  • 2 independent siren outputs
  • 2 auxiliary alarm and fault outputs
  • 2 configurable relay outputs
  • 4 configurable open collector outputs
  • Capacity for 2 12V batteries
  • 4 access levels
  • LCD display with menu for ADVANCED programming
SKU DMT-FP9000E
Primary power supplySwitching source 110-252V AC 50-60 Hz 55W max.
Backup power supply2 batteries 12VDC (up to 5 Ah). Ensures minimum 72 hours duration.
Number of extension lines2 cross-connected lines
Number of detection zones1 conventional zone, up to 30 detectors per zone.
Push-button inputsManual, Hold, Select mode, ON/OFF extinguishing and low pressure.
Siren outputs2 siren outputs 24VDC. Independent and monitored open collector outputs
Relay outputs4 Relay outputs: [VAR%] Alarm output, 1 Fault output and 1 configurable relay outputs. All support 30VDC 3A max.
Open collector outputs4 outputs
End of line resistanceAreas fully monitored by end-of-line resistance (4.7K)
Auxiliary Output Voltage24VDC. Protected by resettable electronic fuse 1A
Protection IndexIP30
Temperature-5ºC~+40ºC
Material and colourABS, colour: White
Dimensions310 x 240 x 80 mm
Weight1,3Kg
Recommended cableFire cable with a minimum section of 1.0mm (18AWG).
