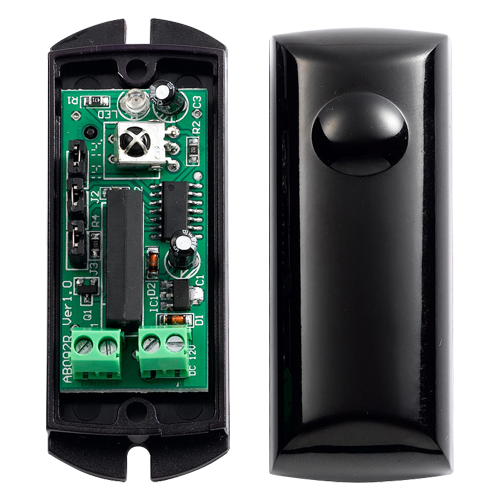

Infrared barrier detector - ABO-20F

0 Rating
incl. VAT€10,52
Price incl. VAT: €10,52
Ex. VAT: €8,42
Total discount:
VAT: €2,10
In Stock
SKU: ABO-20F
  • SKU: ABO-20F
  • Infrared barrier detector
  • Wired | 1 beam
  • Max distance. detection 10 / 20 m
  • Smaller size and easy installation
  • Relay
  • Power supply 9~16VDC/VAC
Gls 1
Ups 1
1-4 Days delivery
 Back to: Alarms
Cards 1
  • ABO-20F
  • Single beam infrared barrier for outdoor
  • Wired
  • Maximum detection transmitter / receiver 20 m (interior) and 10 m (exterior)
  • Reduced size
  • 4 work frequencies
  • Power 9-16 VDC/VAC
SKU ABO-20F
Detection range 20m indoor / 10 m outdoor
Number of beams 1
Detection method Infrared beam interruption
Frequency channels 4 different channels over DIP Switch
Alarm outputs 1 relay NO/NC (max. 36VDC/VAC, 1A)
Adjustment method Over LED
Operating temperature -25ºC ~ +55ºC
Power 9~16 VDC/VAC, 20 mA max.
Dimensions 69.5 (H) x 26.4 (W) x 22.5 (D) mm
