Infrared barrier detector - ABL30-18510A

0 Rating
incl. VAT€347,12
Price incl. VAT: €347,12
Ex. VAT: €277,70
Total discount:
VAT: €69,42
In Stock
SKU: ABL30-18510A
  • SKU: ABL30-18510A
  • Infrared barrier detector
  • Wired | 10 beams
  • Max distance. The detection 30 m
  • Easy installation with LED and buzzer
  • Unique address for each tower
  • Relay output NC/NO | Power supply 12~18VDC
Gls 1
Ups 1
1-4 Days delivery
 Back to: Alarms
Cards 1
  • ABL30-18510A
  • Kit of infrared towers (emitter/receiver) of 10 beams for outdoor
  • Wired
  • Maximum sender / receiver detection 30 m (exterior)
  • Connection of each tower: an address
  • Horizontal alignment angle 180° (± 90), vertical not adjustable
  • 2 work frequencies

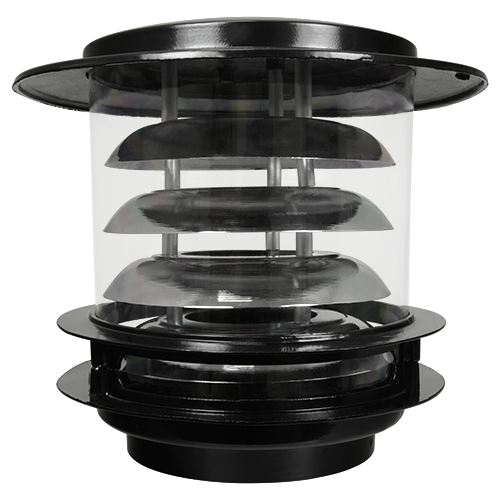

  • Allows unlimited installation through a socket E27 230VAC for lighting and camouflage with garden lights
  • Power supply 12~18 VDC
  • Highly resistant PVC tube
SKU ABL30-18510A
Detection range 30 m exterior
Number of beams 10
Detection method Interruption of 2 continuous beams at a time
Communication One address per tower: sender or receiver
Sensitivity Adjustable between L, M, H
Frequency channels 2 different channels over DIP Switch
Alarm outputs 1 relay NO/NC (max. 30VDC/VAC, 0.5A)
Alignment angle Horizontal 180°(±90°)
Adjustment method Over LED and buzzer
Operating temperature -25ºC ~ +55ºC
Degree of protection IP65
Power 12~18 VDC, 90 mA max.
Dimensions 185 cm height
