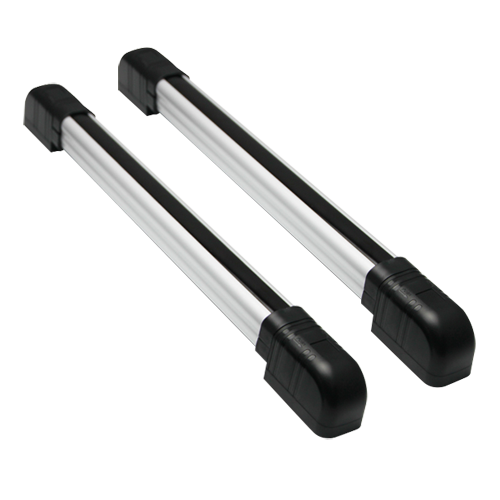

Infrared barrier detector - ABI100-1408

0 Rating
incl. VAT€67,32
Price incl. VAT: €67,32
Ex. VAT: €53,86
Total discount:
VAT: €13,46
In Stock
SKU: ABI100-1408
  • SKU: ABI100-1408
  • Infrared barrier detector
  • Wired | 8 beams
  • Max distance. The detection 100 m
  • Easy installation with LED and buzzer
  • NC/NO relay outputs
  • Power supply 12~18VDC
Gls 1
Ups 1
1-4 Days delivery
 Back to: Alarms
Cards 1
  • ABI100-1408
  • Infrared barrier of 8 beams for outdoor
  • Wired
  • Maximum sender / receiver detection 100 m (exterior)

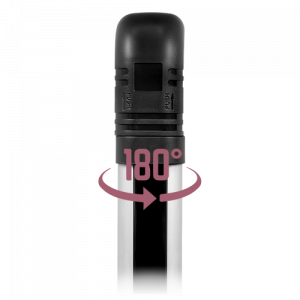

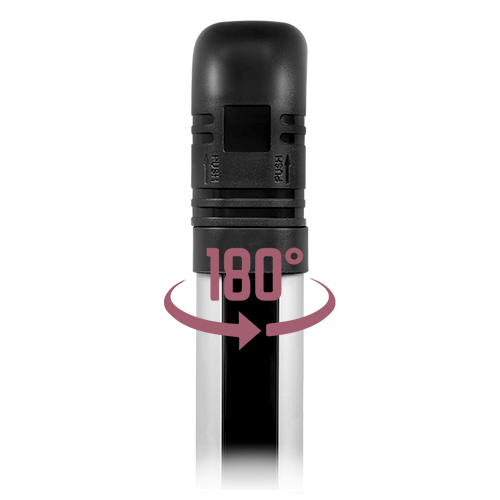

  • Horizontal adjustment 180º (±90º)
  • 2 work frequencies
  • LED and buzzer for easy installation
  • Power supply 12~18 VDC
SKU ABI100-1408
Detection range 100m outdoor
Number of beams 8
Detection method Interruption of 2 continuous beams at a time
Sensitivity Adjustable between L, M H
Frequency channels 2 different channels over DIP Switch
Alarm outputs 1 relay NO/NC (max. 30VDC/VAC, 0.5A)
Alignment angle Horizontal 180°(±90°)
Adjustment method Over LED and buzzer
Operating temperature -25ºC ~ +55ºC
Degree of protection IP65
Power 12~18 VDC, 90 mA max.
Dimensions 1400 mm (H) x 110 mm (W) x 65 mm (D)
