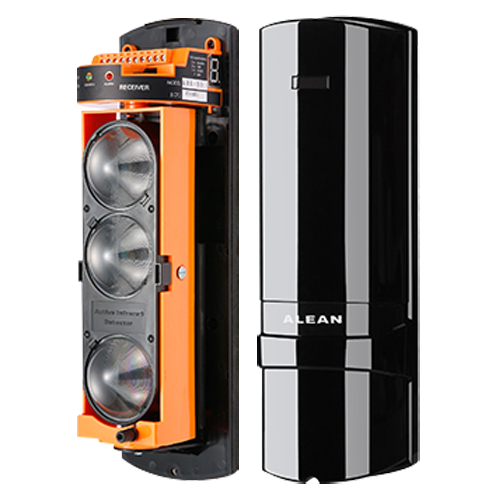

Infrared barrier detector - ABE-150

0 Rating
incl. VAT€63,11
Price incl. VAT: €63,11
Ex. VAT: €50,49
Total discount:
VAT: €12,62
In Stock
SKU: ABE-150
  • SKU: ABE-150
  • Infrared barrier detector
  • Wired | 3 beams
  • Max distance. detection 150 / 450 m
  • High configuration capacity
  • Tamper | Relay Outputs | LED Display
  • Power supply 12~24VDC/VAC
Gls 1
Ups 1
1-4 Days delivery
 Back to: Alarms
Cards 1
  • ABE-150
  • Triple beam infrared barrier for outdoor
  • Wired
  • Maximum detection transmitter / receiver 450 m (interior) and 150 m (exterior)
  • Triple adjustable lens
  • H: ±90º / V: ±10º
  • DIP Switch for programming
  • 4 work frequencies
  • Easy programming over LED Display
  • Power 12-24 VDC/VAC
SKU ABE-150
Detection range 450m indoor / 180m outdoor
Number of beams 3
Detection method Interruption of the 3 beams at once
Interruption time 50ms, 100ms, 300ms, 700ms (available)
Frequency channels 4 different channels over DIP Switch
Alarm outputs 1 relay NO/NC (max. 30VDC/VAC, 1A), Tamper NC
Alignment angle Horizontal 180°(±90°), Vertical 20°(±10°)
Adjustment method Over LCD Display between 0-99
Operating temperature -25ºC ~ +55ºC
Degree of protection IP65
Power 12~24 VDC/VAC, 200 mA max.
Dimensions 291 (H) x 92 (W) x 90 (D) mm
