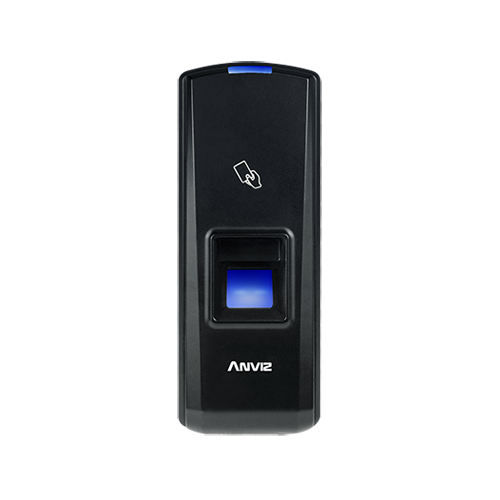

ANVIZ autonomous biometric reader - T5PRO

SKU: T5PRO
incl. VAT€166,83
Price incl. VAT: €166,83
Ex. VAT: €133,47
Total discount:
VAT: €33,37
  • SKU: T5PRO
  • ANVIZ autonomous biometric reader
  • Fingerprints & RFID
  • 1000 recordings / 50000 records
  • TCP/IP, RS485, miniUSB, Wiegand 26
  • Integrated controller
  • Valid for interior
Sold out / Not on stock
Product description: T5PRO

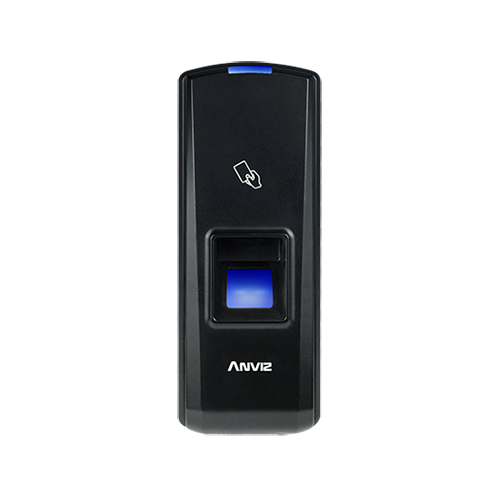

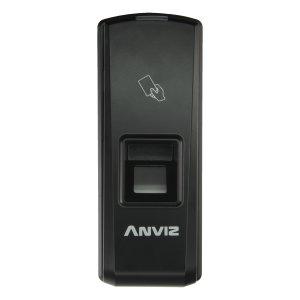

ANVIZ Fingerprint and RFID reader for access control.

Self contained fingerprint reader with RFID EM proximity cards, validation by either method or both combined. Capacity for up to 1000 fingerprints/cards & up to 50000 registers.

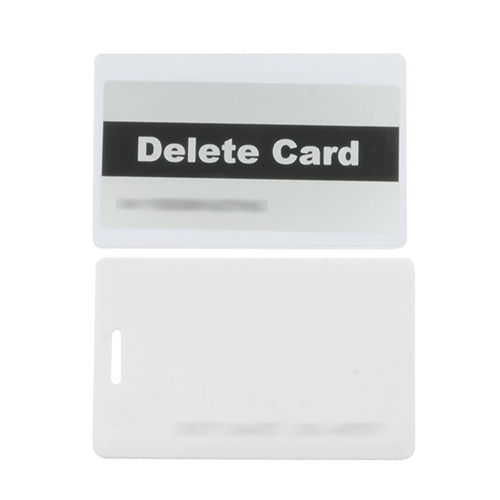

New generation resistant optical fingerprint sensor encapsulated and sealed. It has a powerful Texas Instruments Stellaris® processor 32-Bit and incorporates the BioNano algorithm that allows fast and reliable reading of dry, wet and cracked fingerprints, as well as intelligent and progressive improvement of the fingerprint information with each new reading. Compatible with standard EM RFID proximity cards. Enroll new cards using a master card (included) or via the management software (also included).

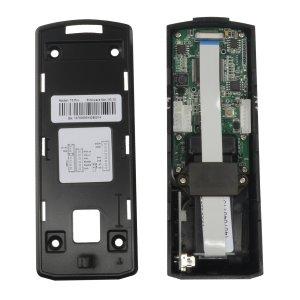

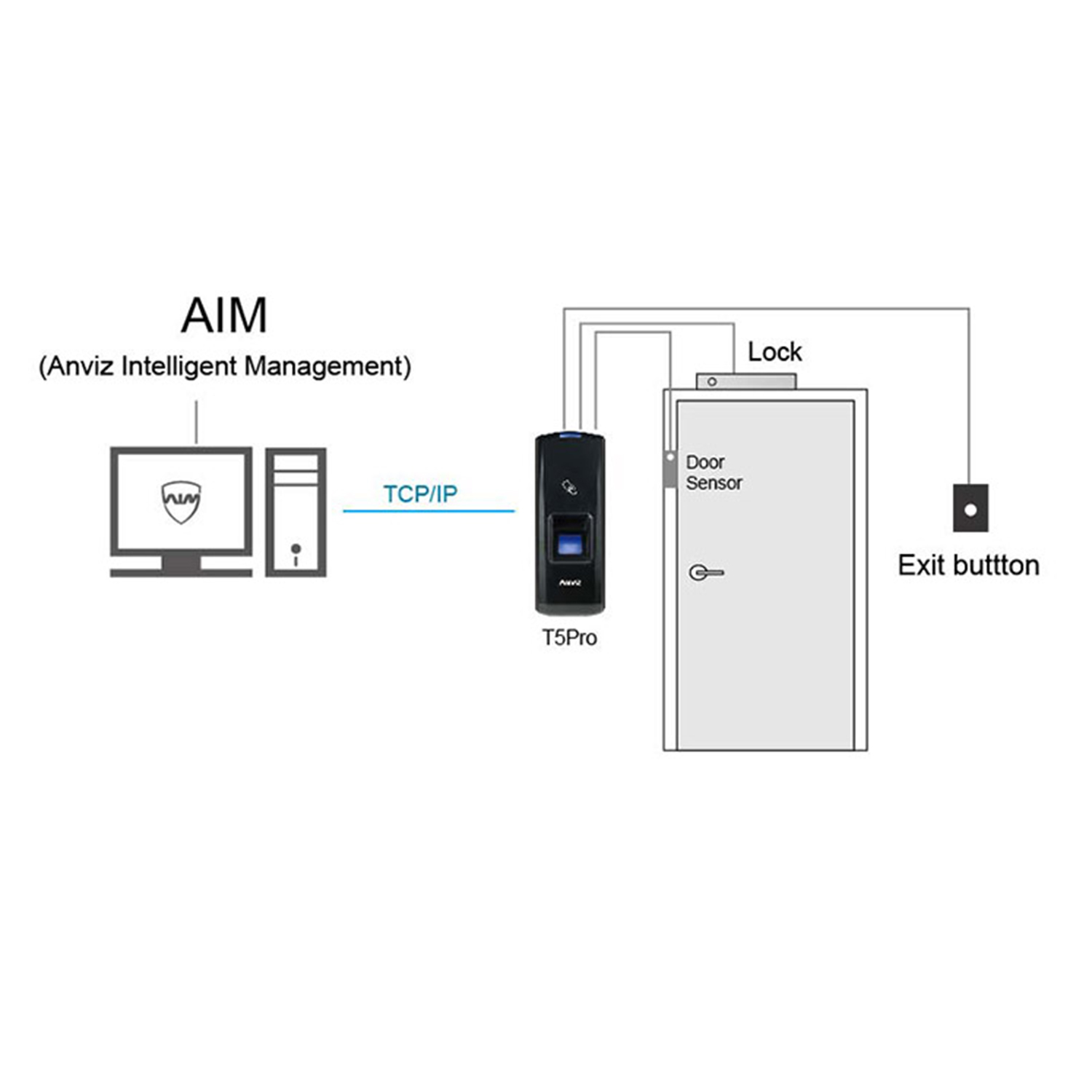

PC communication via TCP/IP, RS485 and miniUSB Plug & Play port. Wiegand 26 encoded output. Unlike the T5,, the T5PRO incorporates its own access controller and has a door sensor, connector for a door push switch and a relay to directly control electronic locking mechanisms. The relay output can provide an output with 12V DC voltage or a NO / NC contact output free of voltage, selecting the desired option via an internal jumper.

ABS housing, suitable for indoor, protocol IP54. Compact design which allows for door frame installation. Device status LED. Complete users and access management software included free of charge.

SKU T5PRO
Processor TI Stellaris® 32-Bit high speed
Algorithm BioNano V10
Optical fingerprint sensor AFOS300 encapsulated
Activation sensor Infrared auto-activation
Scan area 22 x 18 mm
Resolution 500 DPI
Identification time < 0.5 Sec.
Capacity Up to 1000 fingerprints or cards
Records Up to 50000
Identification modes Fingerprint, Card & Fingerprint+Card
Proximity card EM RFID

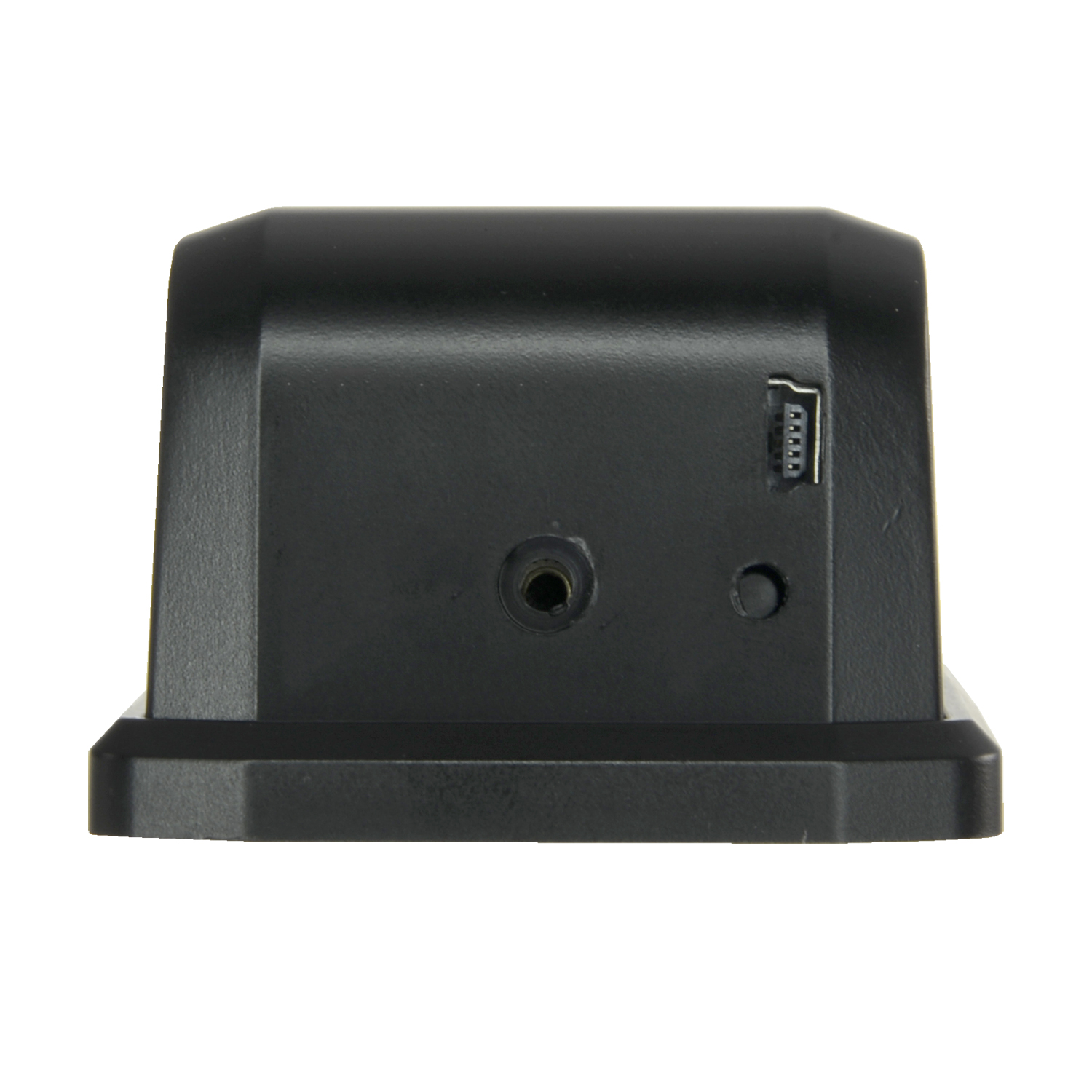

PC communication TCP/IP, RS485, miniUSB
Inputs Door sensor, opening button
Outputs Wiegand 26, 12V relay output (NO/NC)
Custom Function Can be made slave (T5S)/ Optional. Specify in order
Power DC 12 V / 200 mA
Dimensions 37 (D) x 55 (W) x 145 (H) mm
Weight 110 g
