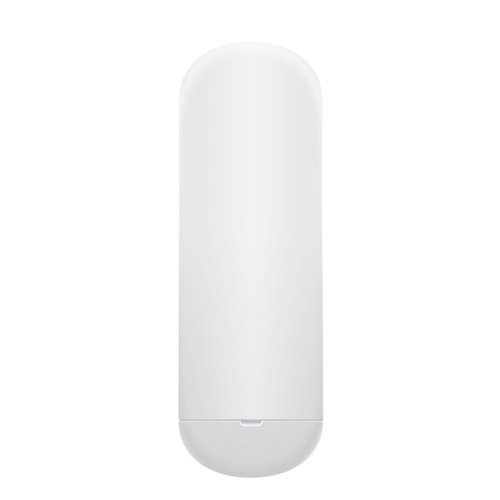

5GHz radio for PtP or PtMP wireless links - NS-5AC

Features
- 5GHz radio for PtP or PtMP wireless links
- Pto-Pto distance of up to 3 km (up to 140MB)
- Second RJ45 port without PoE for IP camera connection
- Can be used outdoors
- Compact and high performance design
- Secondary Ethernet port with software-enabled PoE
- Protection against surges
- Mast mounting accessories are not required

Specs
- Gain of 16 dBi
- Network interface: 2 ethernet ports 10/100/1000 Mbps
- Channel width 10/20/30/40/50/60/80 MHz
- Processor Atheros MIPS 74Kc, 560 MHz
- Memory of 64MB DDR2
- Cross-pol Insulation 20 dB Minimum
- Max. VSWR 1.6: 1
- Opening 45 ° (H-pol) / 45 ° (V-pol) / 45 ° (Elevation)
- Dual Linear Polarization
- Polycarbonate UV housing
- LEDs (1) Power, Eth1, Eth2; (1) Signal power
- Mast mounting accessory included
- Operating temperature of -40 ° C ~ + 70 ° C
- Humidity: 5% ~ 95% non-condensing
- Power: 24V, 0.5A PoE Gigabit injector included
- Maximum consumption: 8.5W
- Feeding method: 802.3af Alternative A (Pairs 1, 2+, 3, 6 Return)
- 24V Passive PoE (Pairs 4, 5+, 7, 8 Return)
- RoHS: Yes
- ESD / EMP protection ± 24kV Contact / Air
- Blows and Vibration ETSI300-019-1.4
- Certifications CE, FCC, IC
- Dimensions with mounting kit: 257 x 84 x 30 mm
- Dimensions without mounting kit: 257 x 84 x 41 mm
- Weight: 233g
