- SKU: HDMI-EXT-PLC
- HDMI Extender via electricity grid
- Transmitter and receiver
- Range 300 m
- Up to 1080p
- HDMI output Loop in TX
- Remote control Extender

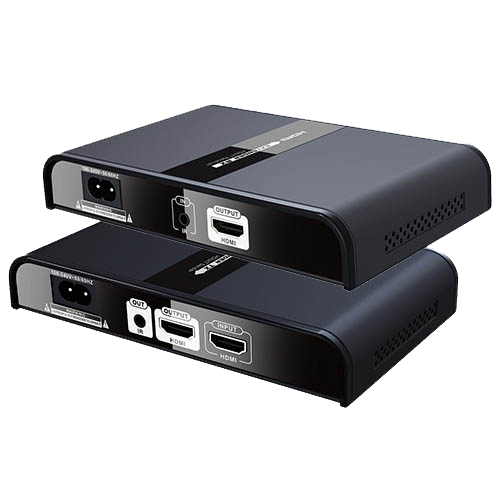

HDMI signal extender through the electricity network (PLC).
Device formed 1 transmitter TX and 1 receiver RX for communication PLC (Power Line Communications), which allows to extend a HDMI connection via the electric power network sharing panel. Maximum length of line of 300 m. HDbitT transmission protocol. Automatic matching, fully Plug&Play.
Each transmitter TX supports up to 4 RX receivers, so that it serves as signal multiplier at different points away from each other. HDMI Loop output at the transmitter TX which doubles the original signal. It incorporates infrared receivers to transmit the signal of remote controls remotely.
It supports resolutions up to 1080p. Reset button and link and transmission LED indicators.
The best professional solution for viewing, recording and control of DVRs and monitors in CCTV installations where it is difficult to have a wired connection. In turn, it is very useful in multimedia applications both professional (commercial video installations) and domestic (HD TV and video game consoles).
| SKU | HDMI-EXT-PLC |
| Maximum distance | 300 m of line |
| Protocol | HDbitT |
| Signal Type | HDMI (including audio and IR signal) |
| Resolution | 480p/576p/720p/1080p |
| Power | AC 100~240 V |
| Dimensions | 2 x 150 (W) x 25 (H) x 92.7 (D) mm |
| Weight | 2 x 330 g |
