Video Balun 4N1 (HDTVI, HDCVI, AHD y CVBS) - BA616P-HD
- SKU: BA616P-HD
- Video Balun 4N1 (HDTVI, HDCVI, AHD y CVBS)
- 16 passive channels
- Includes 16 BA612P-HAC
- BNC and RJ45 connection
- Range: 180 ~ 440 m
 |  |
1-4 Business daysShipping to EU € 3,99 | |

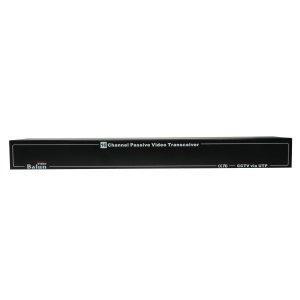

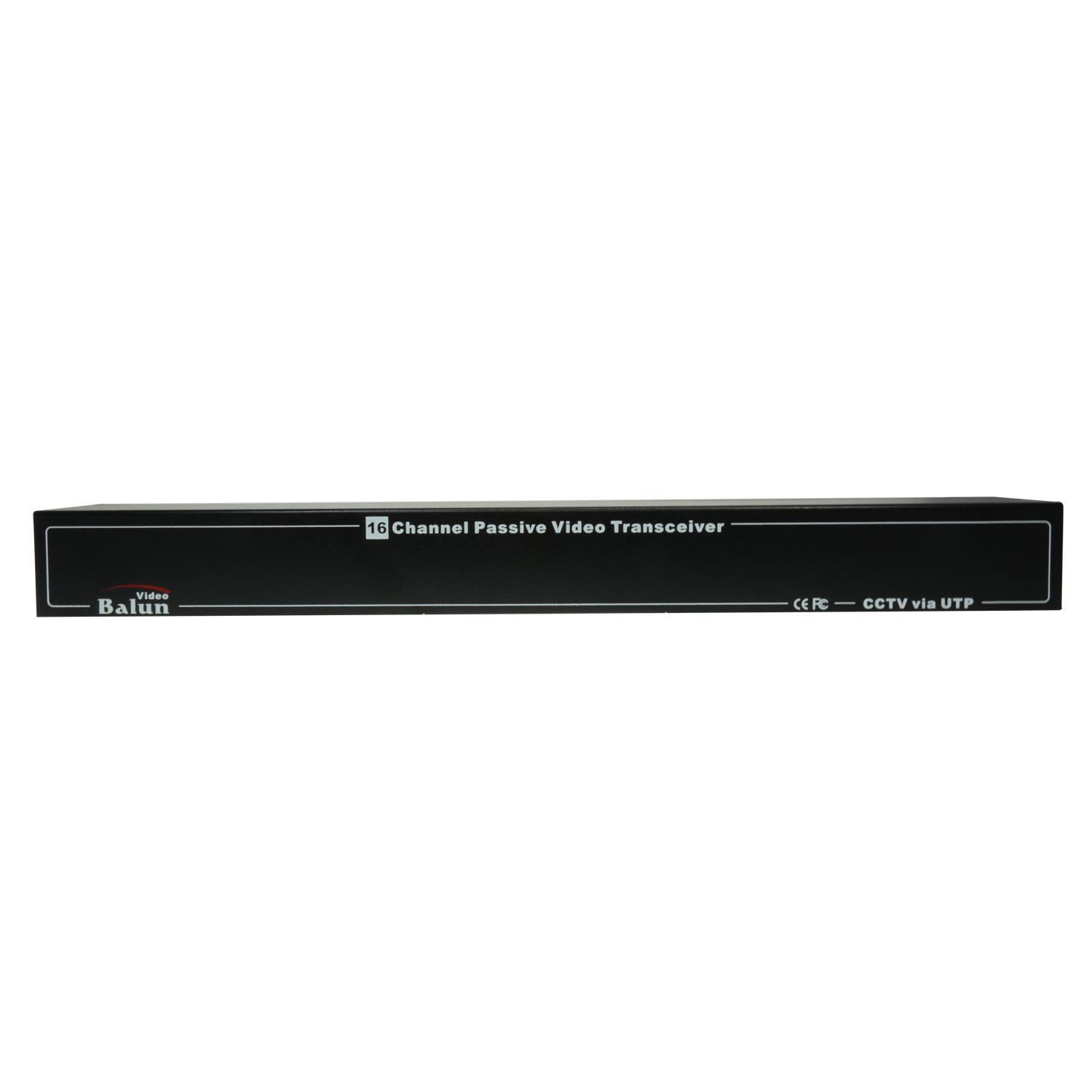

Passive video transceiver by twisted pair of 16 channels, optimized for high definition video HDTVI / HDCVI / AHD / CVBS. It can operate as transmitter or receiver, and it permits to transmit the signal of up to four video cameras via a single UTP cable.

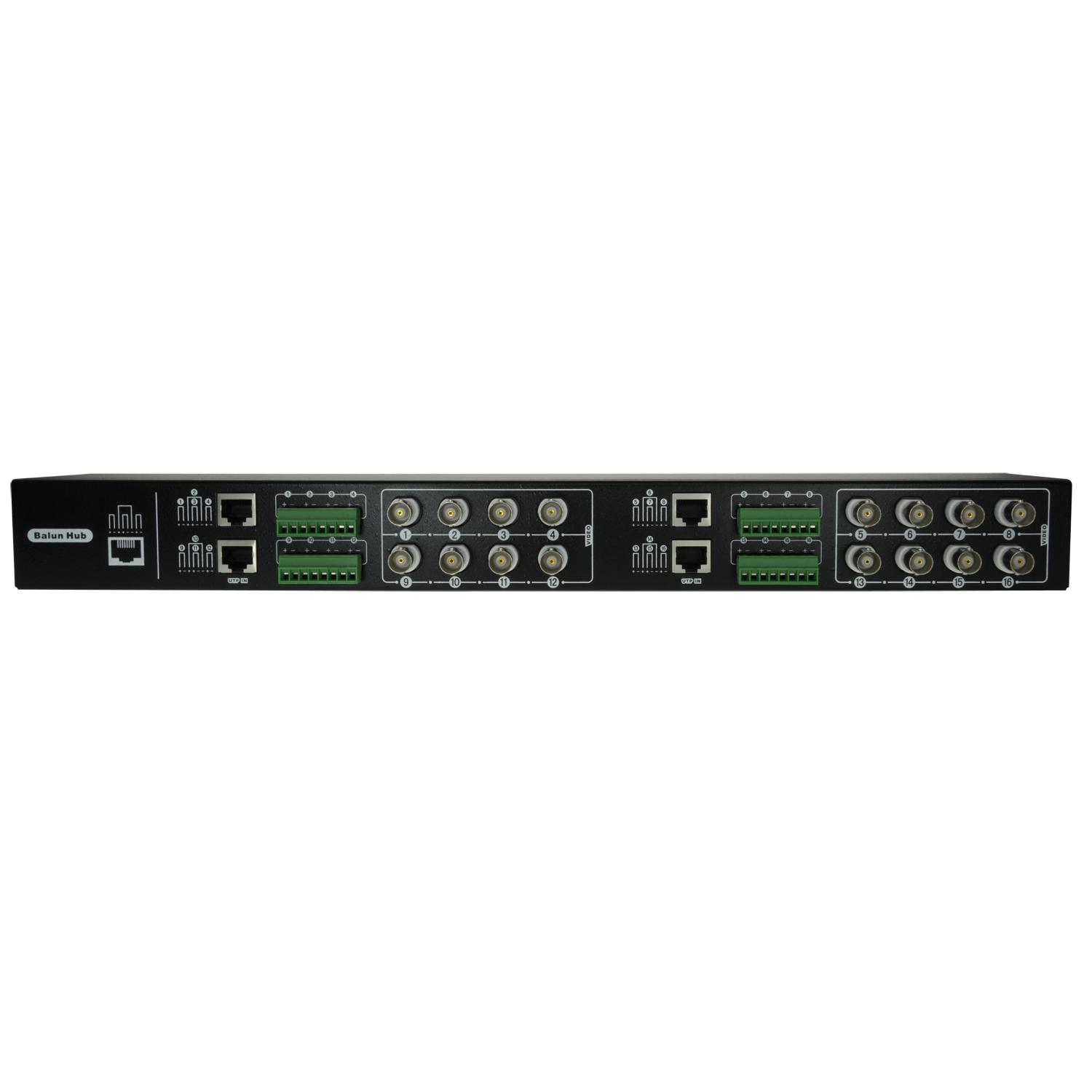

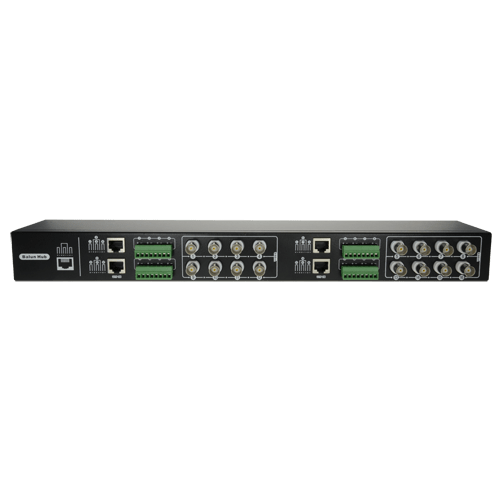

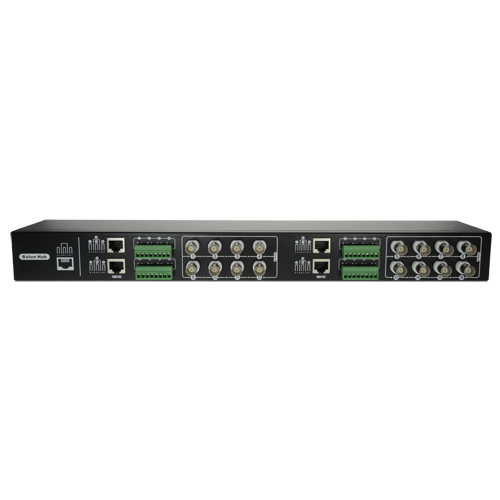

The adapter has 16 BNC connectors for connecting to a DVR. Includes 16 individual baluns BA612P-HAC to connect to each camera.
Moreover, it has 4 connectors for UTP cable, either by two RJ45 or by 4 clamps of 4 +/- contacts, for connection of the cable by wires.
The maximum length between the end that connects to the camera and the end that connects to the video output is: HDTVI 190/190/180/180 m (720p/1080p/5Mpx/ 4K), HDCVI 440/230/230/190 m (720p/1080p/4Mpx/ 4K) and AHD 320/250/200 m (720p/1080p/5Mpx).

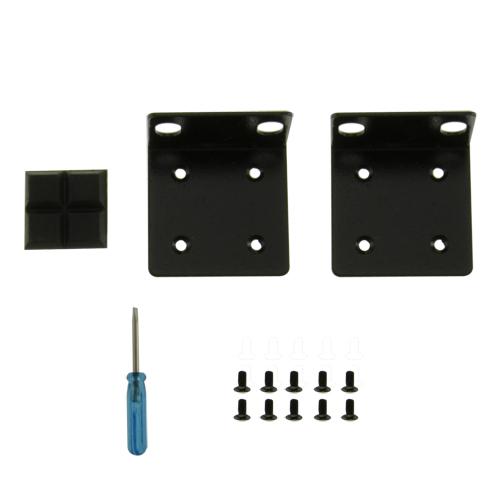

Rack mount possibility 19".
| SKU | BA616P-HD |
| Input Tx / Output Rx | 16 female BNC connectors for video |
| Output Tx / Input Rx | 4 connectors RJ45 or 16 clamp connectors for UTP cable CAT5 |
| Bandwidth | DC up to 42 MHz |
| Video format | NTSC, PAL, SECAM |
| Impedance | BNC 75 Ω, UTP 100 Ω |
| Distance | HDTVI 190/190/180/180 m (720p/1080p/5Mpx/ 4K), HDCVI 440/230/230/190 m (720p/1080p/4Mpx/ 4K) AHD 320/250/200 m (720p/1080p/5Mpx) CVBS 400 m |
| Power supply | Passive (not required) |
| Dimensions | 45 (H) x 430 (W) x 85 (D) mm |
| Weight | 1250 g |
