Video Balun for HDTVI / HDCVI / AHD / CVBS - BA614P-HAC

0 Rating
incl. VAT€22,50
Price incl. VAT: €22,50
Ex. VAT: €18,00
Total discount:
VAT: €4,50
In Stock
SKU: BA614P-HAC
  • SKU: BA614P-HAC
  • Video Balun for HDTVI / HDCVI / AHD / CVBS
  • 4 passive channels
  • Includes 4 BA612P-HAC
  • BNC and RJ45 connection
  • Range: 180 ~ 440 m
Gls 1
Ups 1
1-4 Days delivery
 Back to: Video by UTP
Cards 1

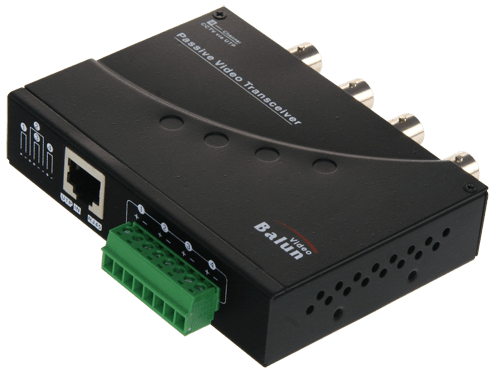

Passive video transceiver by twisted pair of 4 channels, optimized for high definition video HDTVI / HDCVI / AHD / CVBS. It can operate as transmitter or receiver, and it permits to transmit the signal of up to four video cameras via a single UTP cable.

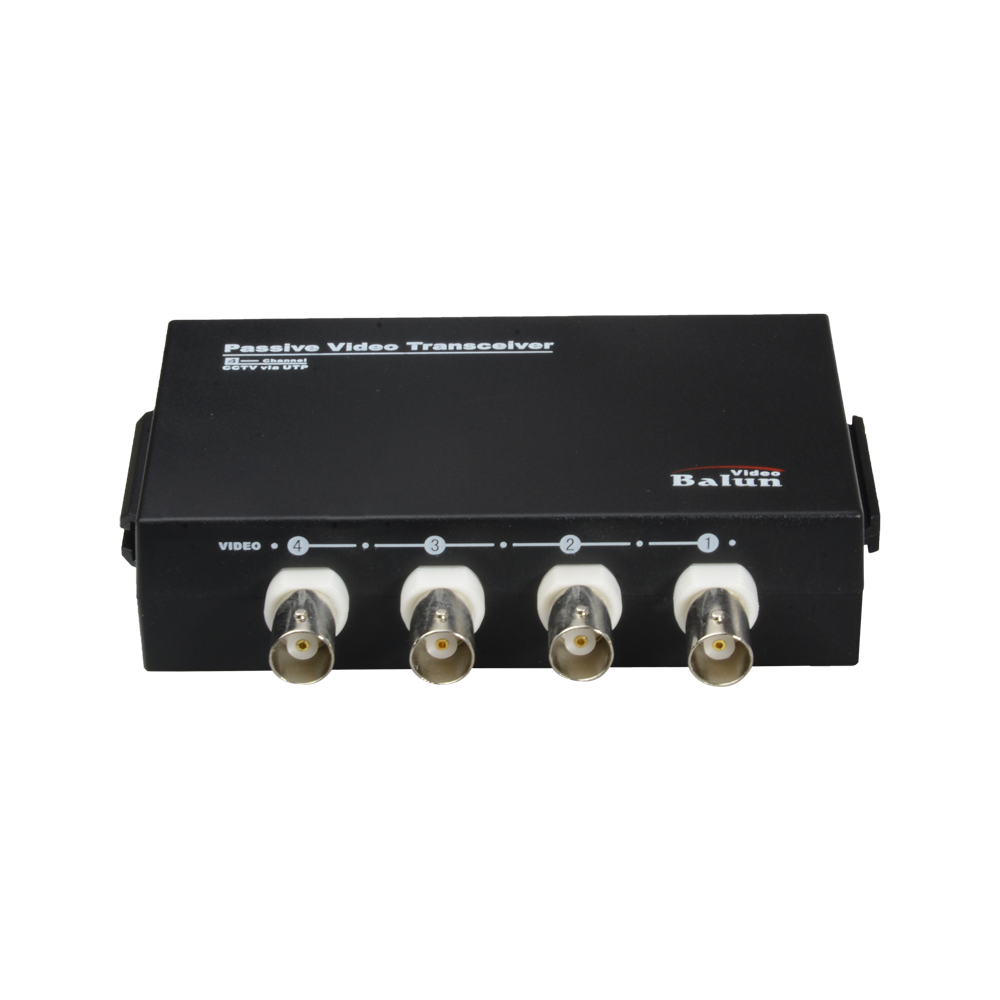

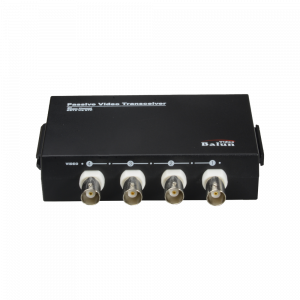

The adapter has 4 BNC connectors for connecting to a DVR. Includes 4 individual baluns BA612P-HAC to connect the cameras.

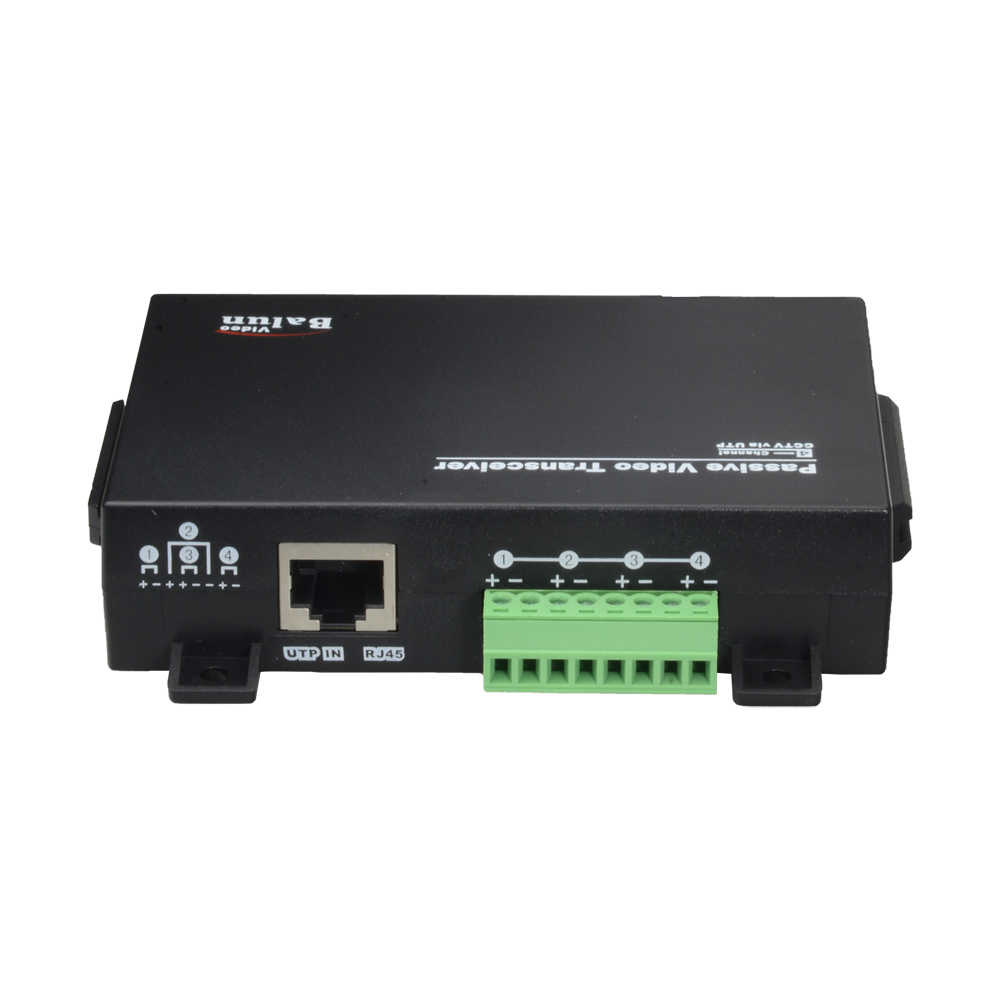

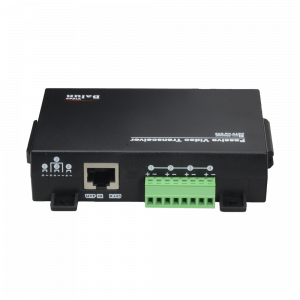

It also has a connector for UTP cable, which works with RJ45 or with clamps for 4 contacts +/-, for a wired cable connection.

The maximum length between the end that connects to the camera and the end that connects to the video output is :

  • BA614P-HAC
  • HDTVI 720p - 200 m
  • HDTVI 1080p - 300 m
  • HDCVI 720p - 400 m
  • HDCVI 1080p - 200 m
  • AHD 720p - 300 m
  • AHD 1080p - 300 m
  • AHD 4 MP - 300 m
  • HDTVI 4 MP 100 m
  • HDCVI 4 MP 200 m
  • HDTVI 4K 100 m
  • HDCVI 4K 200 m

Rack mount possibility 19".

SKU BA614P-HAC
Input Tx / Output Rx 4 female BNC connectors for video
Output Tx / Input Rx 1 connector RJ45 or 4 connectores with clamps for the UTP-cable CAT5
Bandwidth DC up to 42 MHz
Video format NTSC, PAL, SECAM
Impedance BNC 75 Ω, UTP 100 Ω
Transmission distance HDTVI 200/200/200/200 m (720p/1080p/4 Mpx/4K), HDCVI 400/200/200/200 m (720p/1080p/4 Mpx/4K)
AHD 300/200/200 m (720p/1080p/4 MP), CVBS 300 m
Power Passive (not required)
Dimensions 25 (H) x 102 (W) x 90 (D) mm
Weight 200 g
