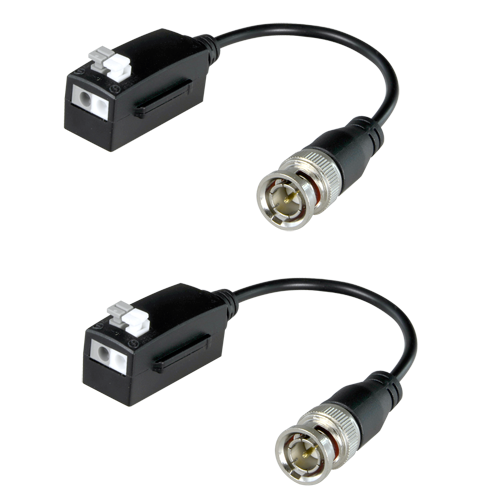

SAFIRE UTP passive transceiver - BA612P-POC

0 Rating
incl. VAT€5,63
Price incl. VAT: €5,63
Ex. VAT: €4,50
Total discount:
VAT: €1,13
In Stock
SKU: BA612P-POC
  • SKU: BA612P-POC
  • SAFIRE UTP passive transceiver
  • Optimised for HDTVI, HDCVI and AHD
  • 1 video channel, PoC
  • Passive, connector of 2 pins
  • Maximum range: 450 m (TVI / 720p)
  • 2 units
Gls 1
Ups 1
1-4 Days delivery
 Back to: Video by UTP
Cards 1


Passive PoC transceiver for twisted pair video, 2 units for transmission and reception, specific for high definition analog (HD).

Optimized for the transmission of the video signal of 1 HDTV analog HDTV / HDCVI / AHD / CVBS. It has BNC male connector and cable insertion terminal by pressure, two-pin connector.

The maximum length between the end that connects to the camera and the end that connects to the video output is :
  • BA612P-POC
  • HDTVI 720p - 450 m
  • HDTVI 1080p - 300 m
  • HDCVI 720p - 250 m
  • HDCVI 1080p - 250 m
  • AHD 720p - 250 m
  • AHD 1080p - 250 m
  • CVBS - 250 m



SKU BA612P-POC
Brand Hikvision
Number of channels 1 channel
Power Does not require (Passive), PoC
Video Input/Output BNC (male)
Transmission distance HDTVI 450/300 m (720p/1080p), HDCVI 250/250 m (720p/1080p)
AHD 250/250 m (720p/1080p), CVBS 250 m, 50/100 m (at, af PoC)
Twisted pair connector Two pin connector
Crosstalk 60 dB
Input impedance 75 Ohm
Output Impedance 100 Ohm
Cable category UTP category 5/6
