SAFIRE UTP passive transceiver - BA612P-HAC

0 Rating
incl. VAT€4,50
Price incl. VAT: €4,50
Ex. VAT: €3,60
Total discount:
VAT: €0,90
In Stock
SKU: BA612P-HAC
  • SKU: BA612P-HAC
  • SAFIRE UTP passive transceiver
  • Optimised for HDTVI, HDCVI and AHD
  • 1 video channel
  • Passive, connector of 2 pins
  • Range: 150 ~ 400 m
  • 2 units
Gls 1
Ups 1
1-4 Days delivery
 Back to: Video by UTP
Cards 1

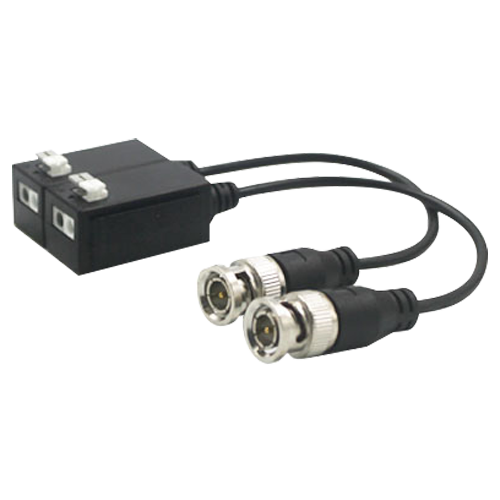

Passive twisted pair video transceiver from Safire, 2 units for transmission and reception, specific for high definition analog (HD).

Optimized for the transmission of video signal of 1 high definition analog camera HDTVI, HDCVI or AHD by twisted pair. It has BNC male connector and cable insertion terminal by pressure, two-pin connector.

The maximum length between the end that connects to the camera and the end that connects to the video output depends on the signal resolution and the high definition technology used:

  • BA612P-HAC
  • HDTVI 720p - 250 m
  • HDTVI 1080p - 250 m
  • HDTVI 4Mp (2560*1440) - 150 m
  • HDCVI 720p - 400 m
  • HDCVI 1080p - 250 m
  • HDCVI 4Mp (2560*1440) - 150 m
  • AHD 720p - 350 m
  • AHD 1080p - 200 m

SKU BA612P-HAC
Brand SAFIRE
Number of channels 1 channel
Power Not required (Passive)
Video Input/Output BNC (male)
Transmission distance HDTVI 250/250/150 m (720p/1080p/4 Mp), HDCVI 400/250/150 m (720p/1080p/4 Mp)
AHD 350/200 m (720p/1080p)
Twisted pair connector Two pin connector
Crosstalk 60 dB
Input impedance 75 Ohm
Output Impedance 100 Ohm
Cable category UTP category 5/5E/6
