Video Balun 4N1 (HDTVI, HDCVI, AHD y CVBS) - BA608P-HD
- SKU: BA608P-HD
- Video Balun 4N1 (HDTVI, HDCVI, AHD y CVBS)
- 8 passive channels
- Includes 8 BA612P-HAC
- BNC and RJ45 connection
- Range: 180 ~ 440 m

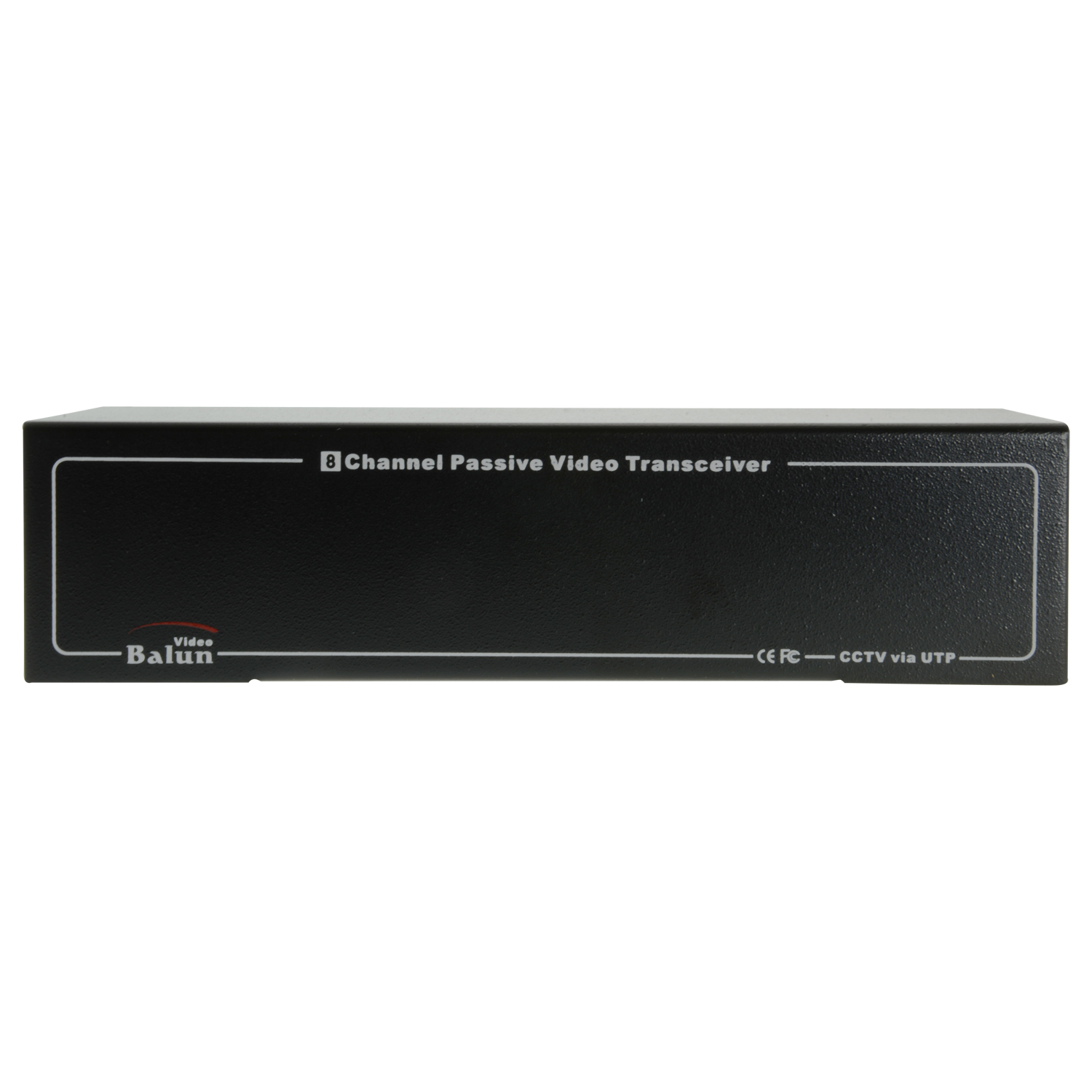

Passive video transceiver by twisted pair of 8 channels, optimized for high definition video HDTVI / HDCVI / AHD / CVBS. It can operate as transmitter or receiver, and it permits to transmit the signal of up to four video cameras via a single UTP cable.

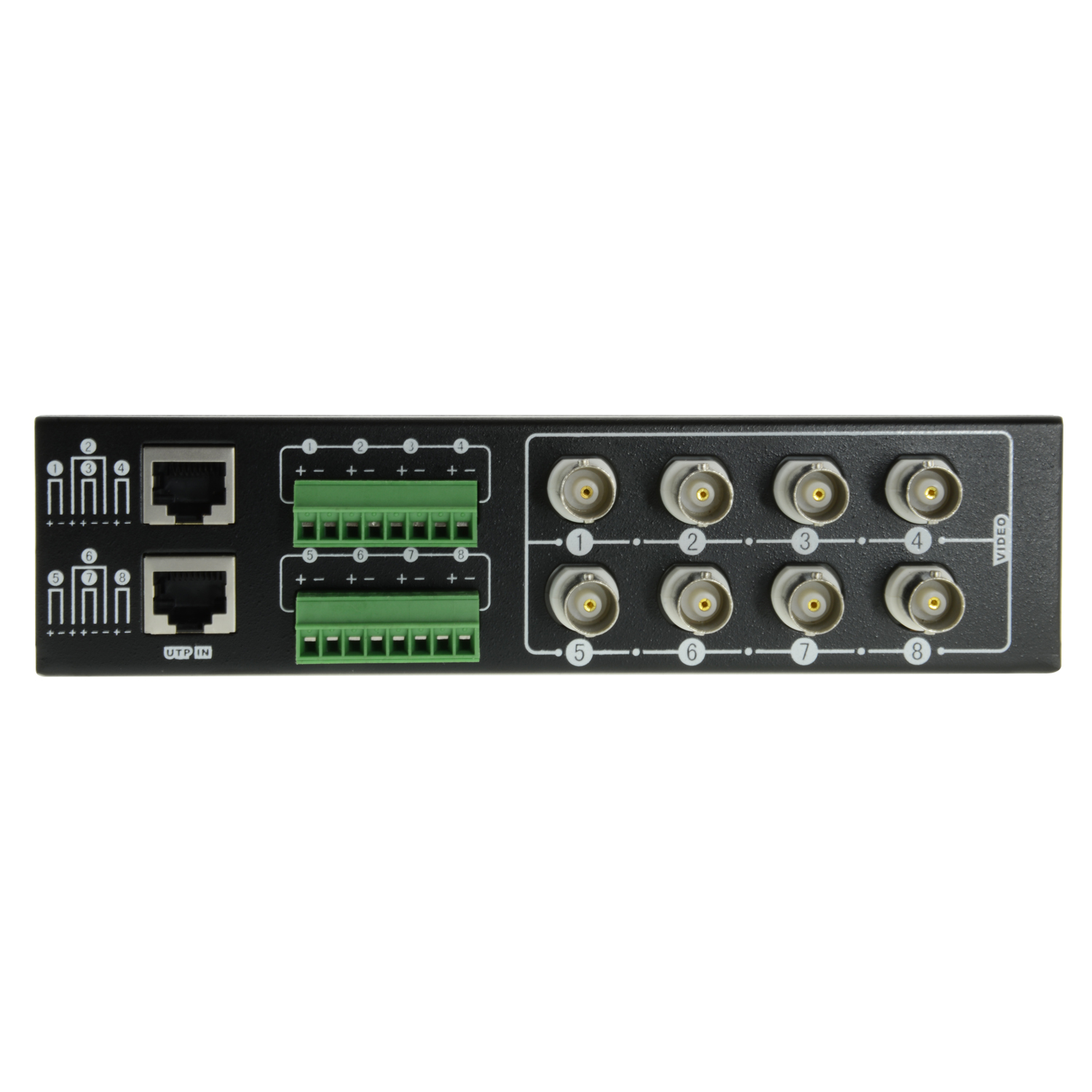

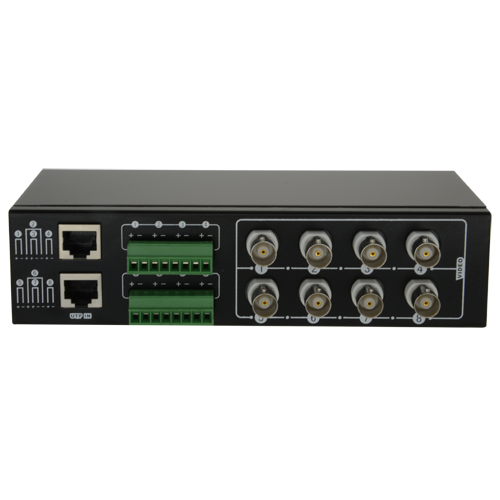

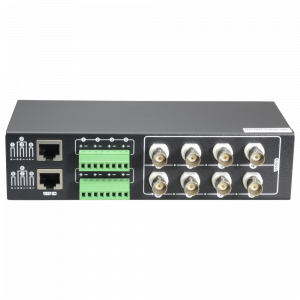

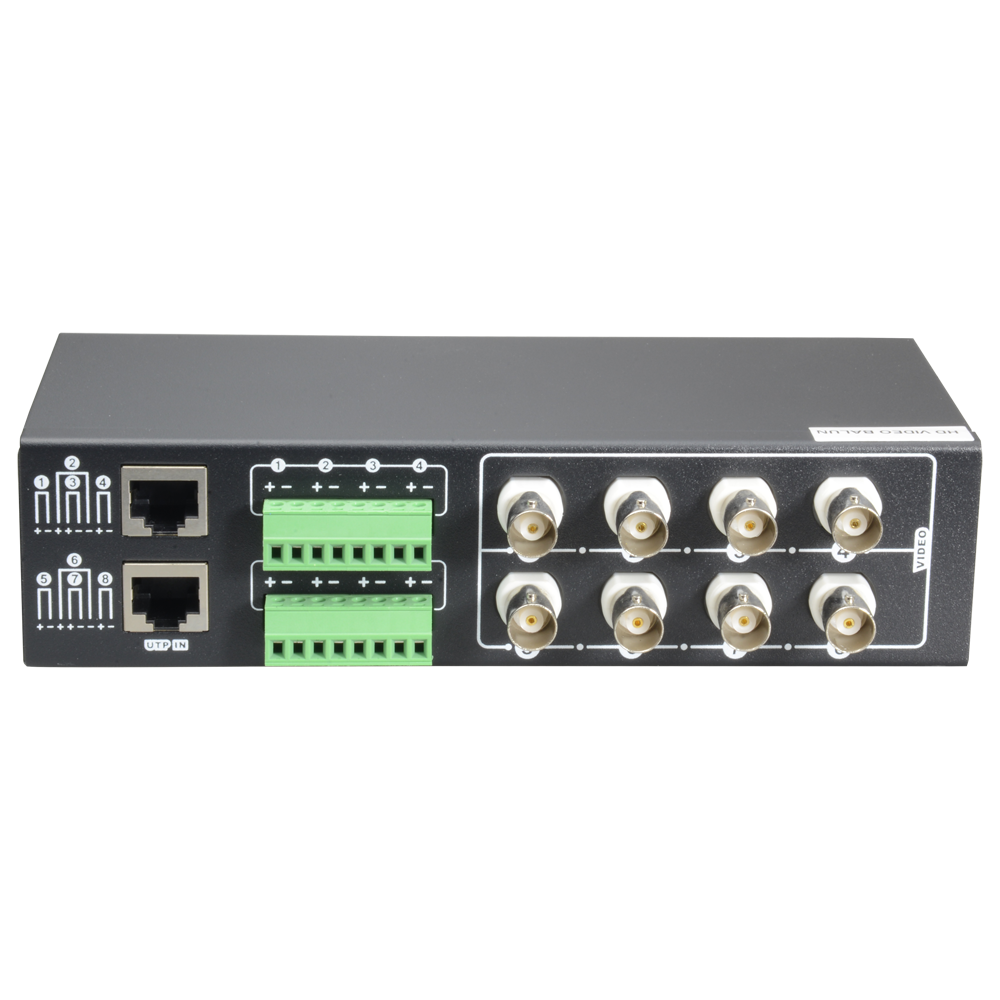

The adapter has 8 BNC connectors for connecting to a DVR. Includes 8 individual baluns BA612P-HAC to connect to each camera.
On the other hand, it has two connectors for UTP cable, by two RJ45 or by two clamps of 4 +/- contacts, for connection of the cable by wires.
The maximum length between the end that connects to the camera and the end that connects to the video output is for HDTV 190/190/180 m (720p/1080p/5Mpx), for HDCVI 440/230/230 m (720p/1080p/4Mpx) and for AHD 320/250/200 m (720p/1080p/5Mpx).

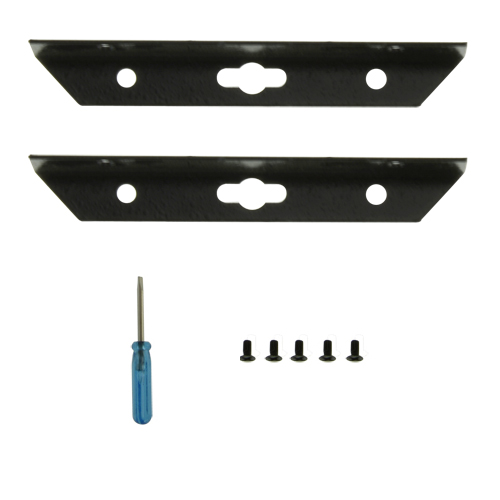

Rack mount possibility 19".
| SKU | BA608P-HD |
| Input Tx / Output Rx | 8 female BNC connectors for video |
| Output Tx / Input Rx | 2 connectors RJ45 or 8 clamp connectors for UTP cable CAT5 |
| Bandwidth | DC up to 42 MHz |
| Video format | NTSC, PAL, SECAM |
| Impedance | BNC 75 Ω, UTP 100 Ω |
| Distance | HDTVI 190/190/180 m (720p/1080p/5Mpx), HDCVI 440/230/230 m (720p/1080p/4Mpx) and AHD 320/250/200 m (720p/1080p/5Mpx) |
| Power | Passive (not required) |
| Dimensions | 45 (H) x 180 (W) x 85 (D) mm |
| Weight | 580 g |
