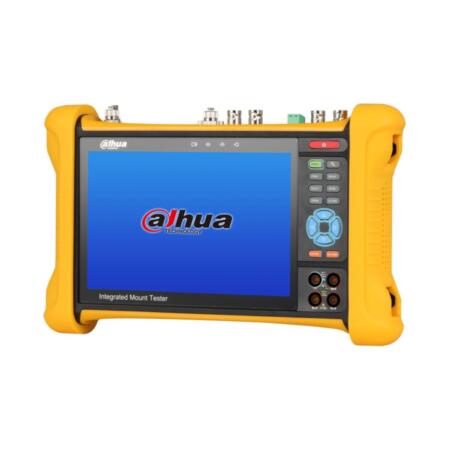

Dahua 6 in 1 multifunction CCTV tester - PFM906

SKU: PFM906
incl. VAT€1161,34
Price incl. VAT: €1161,34
Ex. VAT: €929,07
Total discount:
VAT: €232,27
  • SKU: PFM906
  • Dahua 6 in 1 multifunction CCTV tester
  • Supports HDTVI, HDCVI, AHD, CVBS and IP cameras
  • Colour LCD display 7"
  • Supports TDR (network cable / coaxial cable), test and localization of UTP cables, VFL optical cable
  • It incorporates a 37Wh large capacity battery, with a duration of up to 10 hours
Sold out / Not on stock
Product description: PFM906
  • PFM906
    • PFM906
    • Dahua 6 in 1 multifunction CCTV tester
    • 7 ”IPS retina capacitive touch screen (1920x1200)
    • Supports IP / HDCVI / HDTVI / AHD / CVBS / SDI
    • HDMI input / output
    • PoE, 12V DC / 2A and USB 5V / 2A power output
    • It incorporates a 37Wh large capacity battery, with a duration of up to 10 hours
    • Supports TDR (network cable / coaxial cable), test and localization of UTP cables, VFL optical cable
    • It has a digital multimeter function
    • It has an optical power meter test function.
  • -in-1 multi-function CCTV tester (CVBS, CVI, TVI, AHD, SDI, IP)
  • 7 "IPS retina capacitive touchscreen (1920x1200 pixels)
  • Dahua test tool for Dahua camera imaging tests, IP modification, username and password parameters, etc.
  • Analog camera test: Real-time video, coaxial PTZ control, RS485 control, audio test, full-screen preview and 5X digital zoom, screen capture, video recording, photo viewing and video playback
  • - CVI: 1080P at 25/30 ips, 4MP at 25/30 ips, 5MP / 6MP at 20 ips, 4K / 8MP at 15 ips
  • - TVI: 1080P at 25/30 ips, 4MP at 25/30 ips, 5MP at 20 ips
  • - AHD: 1080P at 25/30 ips, 4MP at 25/30 ips, 5MP at 20 ips
  • - CVBS: 1 channel BNC input and output, supports PAL and NTSC format (automatic detection)
  • - SDI: 720P at 60 ips, 1080P at 60 ips, 1080i at 60 ips (HDMI output can be used as SDI to HDMI converter and as SDI image output to monitor)
  • IP Camera Test: Support fast ONVIF, automatically scan network segment IP, automatically log in to display camera image, automatically modify test IP to same network segment with scanned camera IP; Displays the 4K camera image by main stream; Full-screen preview and 5X digital zoom, screenshot, video recording, photo viewing and video playback
  • PTZ control: Compatible with more than 30 protocols such as Pelco-D / P, Samsung, Panasonic, etc.
  • Network cabling test: TDR, cable search, UTP cable test
  • Coaxial cabling test: TDR, analog video generator
  • Optical wiring test: VFL (Visual Fault Locator)
  • Network tools: IP address scan, ping test, bandwidth test, flashing port, DHCP server, etc.
  • Digital multimeter (DMM)
  • Optical Power Meter (OPM)
  • Capture and analyze the command data from the control device via RS485, it can also send hexadecimal
  • Incorporates 35 lumen LED flashlight
  • Measures PoE switch voltage and displays pin configuration
  • 8GB internal memory
  • Multi-language: English, Chinese, Korean, Russian, Italian, Polish, Spanish, French, Japanese, etc.
  • 2 BNC input ports (SDI + CVI / TVI / AHD / CVBS)
  • 1 BNC output port
  • 1 audio input / 1 output
  • 1 HDMI input: 720x480, 720x576, 1280x720, 1920x1080, 1024x768, 1280x1024, 1280x900, 1440x900
  • 1 HDMI output: 1920x1080
  • Functional ports: TDR, OPM, VLS, RS485
  • MicroSD slot
  • 3 10 / 100M RJ45 ports (LAN / PSE, PD, UTP / Scan)
  • Built-in 2.4G Wi-Fi module
  • Onvif compatibility with PTZ protocol
  • 1 12V DC 2A input port (for charging)
  • 7.4V, 5Ah, 37 Wh lithium polymer battery
  • Battery life of up to 10 hours
  • Battery recharge time 5 ~ 6 hours
  • 48V DC PoE + output: Supplies temporary power to PoE cameras
  • 12V DC / 2A power output
  • 5V DC 2A USB power output
  • -10 ° C ~ + 55 ° C operating temperature
  • 30% ~ 90% relative humidity
  • Plastic shell
  • Dimensions: 270 (W) x 160 (H) x 46 mm
  • Weight: 950g
