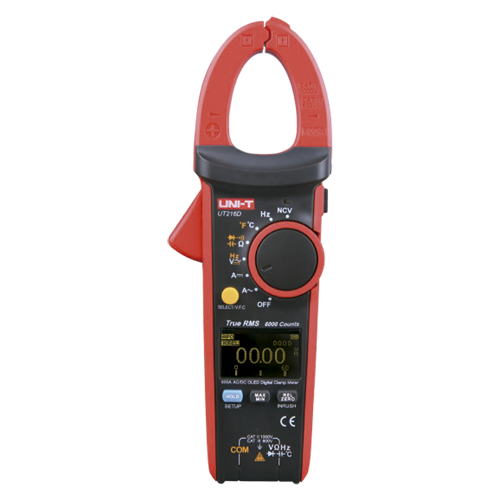

Current clamp - MT-CLAMP-UT216C

0 Rating
incl. VAT€86,25
Price incl. VAT: €86,25
Ex. VAT: €69,00
Total discount:
VAT: €17,25
In Stock
SKU: MT-CLAMP-UT216C
  • SKU: MT-CLAMP-UT216C
  • Current clamp
  • LED display up to 6000 accounts
  • DC and AC current measurement up to 600A
  • DC voltage measurement up to 750A and AC voltage measurement up to 1000A
  • High AC accuracy with True RMS function
  • Resistance, Capacitance and Frequency Measurement
  • Temperature measurement between -40°C~1000°C
  • Buzzer for continuity test
Gls 1
Ups 1
1-4 Days delivery
 Back to: Installation Tools
Cards 1
  • MT-CLAMP-UT216C
  • Current clamp
  • LED backlight display up to 6000 accounts
  • DC and AC current measurement up to 600 A
  • DC voltage measurement up to 1000V and AC voltage measurement up to 750 V
  • High accuracy in AC with built-in True RMS function
  • Resistance, Capacitance and Frequency Measurement
  • Buzzer for continuity test
  • Diode test
  • Automatic shutdown
SKU MT-CLAMP-UT216C
Brand Uni-T
Measuring range DC and AC current 600A
DC voltage measuring range 1000V
AC voltage measuring range 750A
Accuracy DC current: ±(2.5%+5)
AC current: ±(2.5%+5); Frequency of response: 40~400Hz
DC voltage: ±(0.8%+1)
AC voltage: ±(1.2%+5); Frequency of response: 40~400Hz
Resistance measuring range 60MΩ ±(1%+2)
Capacitance measuring range 60mF ±(4%+5)
Frequency measurement range 10Hz~1MHz ±(0.1%+4)
Temperature measurement range -40ºC~1000ºC ±(2%+5)
Display accounts Up to 6000
Display dimensions 38mm x 24mm
Auto Range / Manual Range / True RMS Yes, it has
Diode test Around 3V
VFC and NCV function (Non-contact voltage detection) Yes, it is available
Relative mode Yes, it is available
MAX/MIN register Yes, it is available
Continuity test Yes, it is available
Low battery indicator If you have (<3.6V)
Input protection Yes, it is available
Input impedance DCV <10MΩ
Consumption 3 x batteries (R03) 1.5V
Dimensions 220 (H) x 75 (W) x 40 (D) mm
Weight 231.7 g
