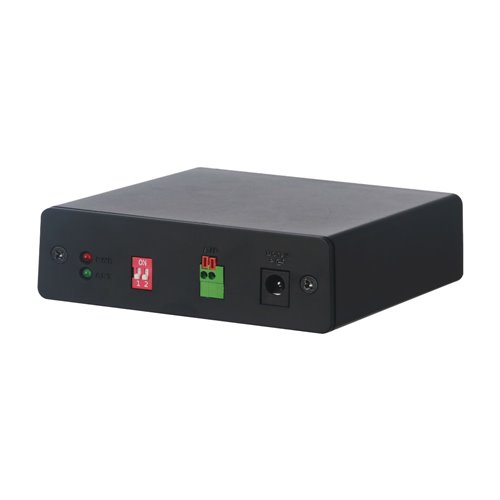

Desktop box of 16 in /6 out of alarm - ARB1606

0 Rating
€45,05
€45,05
Ex. VAT: €36,04
VAT: €9,01
In Stock
SKU: ARB1606
  • SKU: ARB1606
  • Desktop box of 16 in /6 out of alarm
  • Connection to analog recorder via RS-485 port
  • 2-bit DIP switch (0/1) to determine access to the alarm box
  • Maximum support 4 alarm boxes p…
Gls 1 Ups 1

1-4 Business days

Shipping to EU € 3,99
 Back to: Memory
Cards 1

Dahua22

Features
-Desktop box of 16 in /6 out of alarm
- Connection to analog recorder via RS-485 port
- 2-bit DIP switch (0/1) to determine access to the alarm box
- Maximum support 4 alarm boxes per recorder
- Power supply through universal 12V DC source or from DVR through the insertion terminal 1 to 2
- The front panel has a power indicator (PWR) that stays lit when the device is turned on
- The front panel has a signal communication indicator (ACT) flashing for 1 second when communication is established between the alarm box and the DVR
- The linked alarm can be configured on the alarm input and output interface when communication is established between the DVR device and the alarm box
- Through the App we have PUSH notification only as an event (no image or video link)
- The App does not allow to open / close the relays remotely (future update)
- This device is not recognized in the SmartPSS for remote management via IP, only local mode from the recorder
- Operating temperature of -10 ° C ~ + 55 ° C
- Dimensions: 97.7 x 90.3 x 33 mm
