- SKU: KB1000N
- X-Security IP Keyboard
- Double interface: direct or network
- LCD screen
- IP network with connector RJ45
- Joystick 3 axis
- Protocols DHSD and Pelco P/D

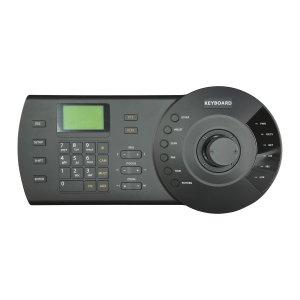

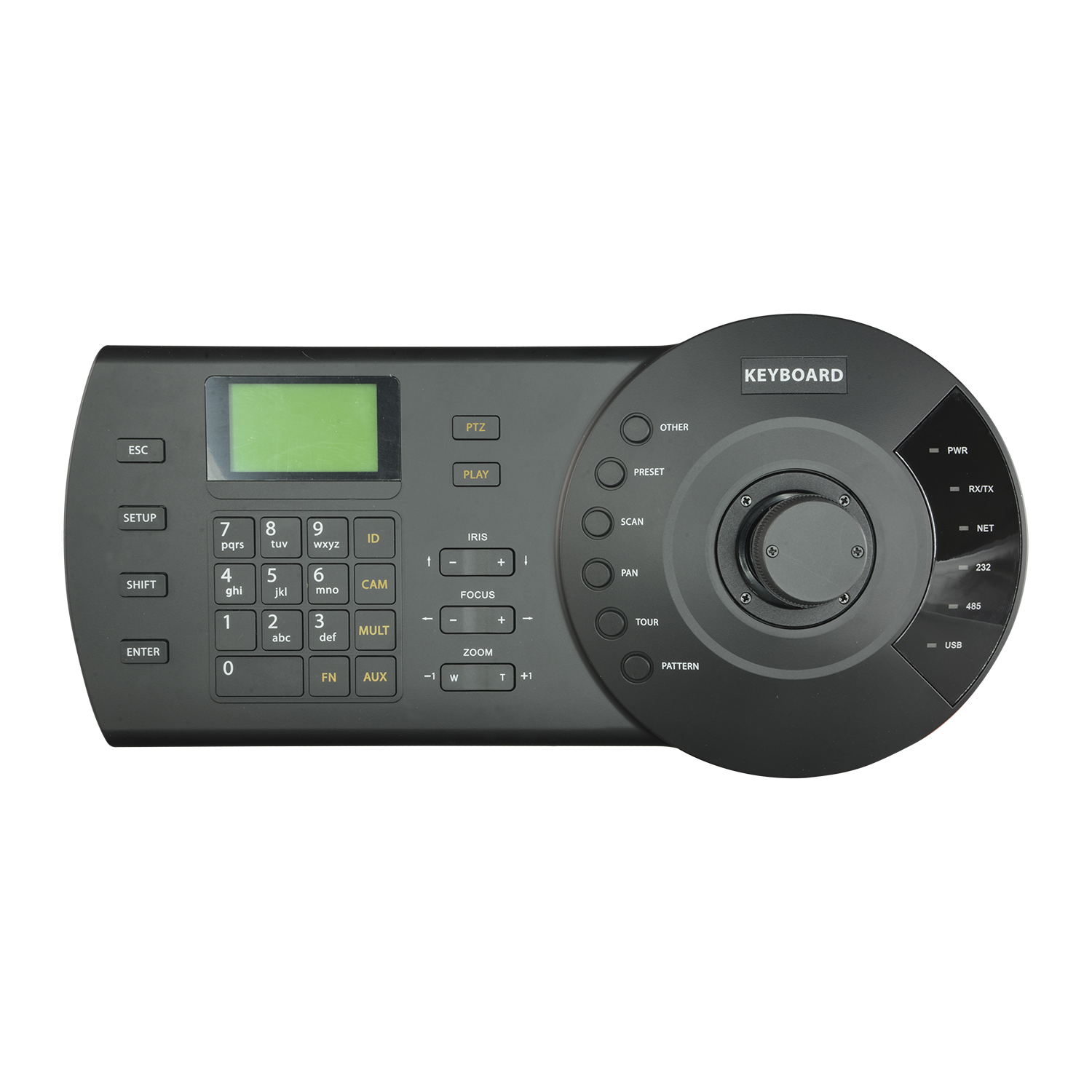

X-Security IP keyboard for controlling video recorders and motorised domes with 3D joystick and LCD screen.
Powerful keyboard, with multiple functions and maximum versatility. Motorised cameras (analogue & IP), matrix, DVR's, NVR's and NVS can all be controlled. It is equipped with a joystick 3 axis for movement, zoom and focus of the cameras. With LCD screen for displaying the current operation, protocol, camera ID, monitor ID and Joystick status.

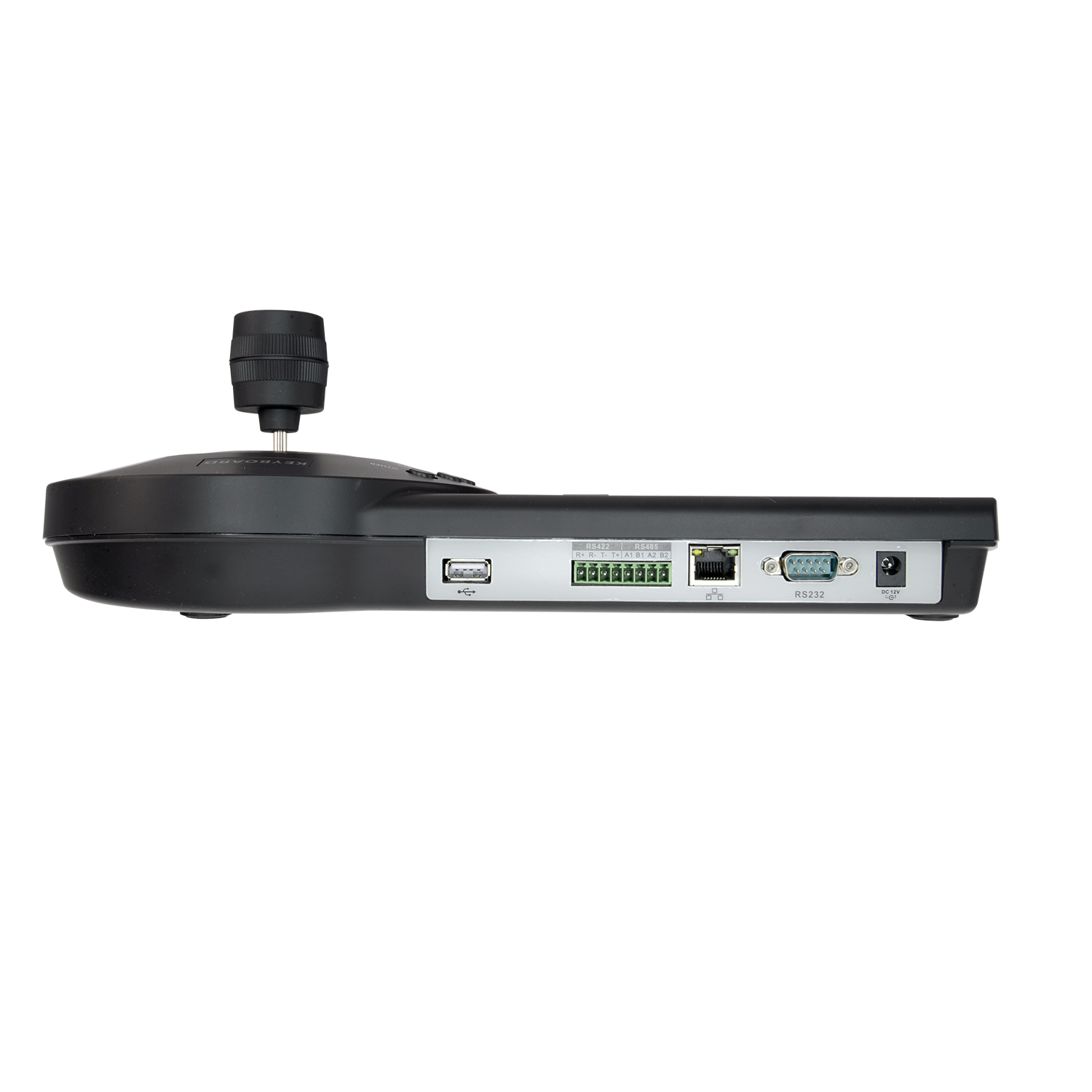

In live mode, it makes use of the RS232, [%VAR%], [%VAR%], [%VAR%] and [%VAR%] ports.. Via RS232 you can connect a DVR up to 10 metres away, max.. Maximum distance on the RS485 port is 1200m @ (9600bps). Supported protocols are DH-SD, Pelco-D, Pelco-P, Pelco-D1 & Pelco-P1. In network mode the keyboard can be connected using the Ethernet port, RJ45,, to connect to recording equipment.
It allows control of the iris and zoom of the camera, set and call preset, to perform tours and control the cameras directly or indirectly through the matrix or DVR.
| SKU | KB1000N |
| Communication mode | RS485 / RS232 / RS422 / RJ45 / USB & Network |
| Display | LCD screen |
| Protocol | DH-SD/PELCO-D/PELCO-P/PELCO-D1/PELCO-P1 |
| Transfer | 2400/4800/9600/19200 Bps |
| Communication distance | Maximum 1200 m |

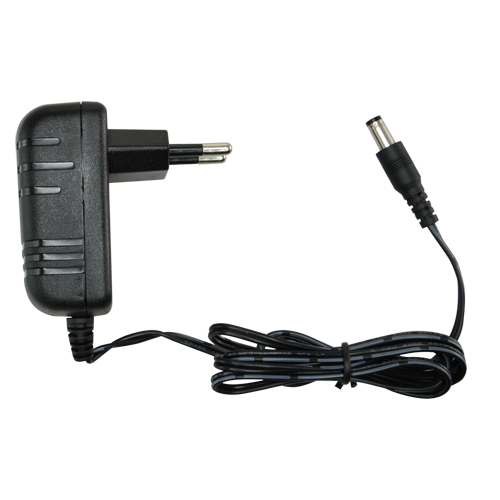

| Power | DC 12 V / 2000 mA |
| Dimensions | 37 (H) x 330 (W) x 160 (D) mm |
| Weight | 2500 g |
