3-years-warranty

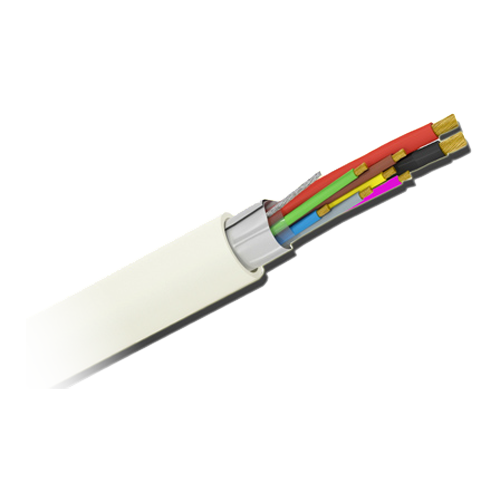

8 signal + 2 power supply conductors - CA8P2-100-H

0 Rating
incl. VAT€75,00
Price incl. VAT: €75,00
Ex. VAT: €60,00
Total discount:
VAT: €15,00
Out Of Stock
SKU: CA8P2-100-H
  • SKU: CA8P2-100-H
  • 8 signal + 2 power supply conductors
  • Conductor Flexible electrolytic copper Class 5
  • CuSn Aluminium polyester screen + drain
  • Bobbin of 100 meters
  • CPR certificate Cca -1sb, a1, d2
  • Low loss
Gls 1
Ups 1
1-4 Days delivery
 Back to: Cables
Cards 1
  • CA8P2-100-H
  • Bobbin of cable
  • 100 m
  • Alarm
  • 8 conductors + 2 power cables
  • Inner conductor Class 5 Flexible electrolytic copper 0,22 mm
  • Flexible electrolytic copper supply conductor 0,75 mm
  • PE isolation
  • Screen Aluminium polyester with 96% coverage+CuSn drainage
  • Polyolefin cover FRLSHF 8.3 mm
  • Halogen free - CPR certificate Cca -1sb, a1, d2
SKU CA8P2-100-H
Length 100 m
Interior conductor Flexible electrolytic copper AWG25 0,22 mm
Power supply wire Flexible electrolytic copper AWG19 0,75 mm
Isolation Polyethylene
Formation of the wires Twisted
Screen Aluminium polyester with 96% coating+CuSn drainage
External cover Polyolefin FRLSHF 8.3 mm
Number of conductors 8 signal + 2 power supply
Conductivity <10μS/mm
Resistance 106 Ohm/km signal / 27 Ohm/km power
Temp. operation 0º C ~ 70º C
Certification CPR (Cca -1sb, a1, d2), UNE EN 50575, UNE EN 60332-1-2,50399,61034-2, UNE EN 60754-2

Reviews

There are yet no reviews for this product.
