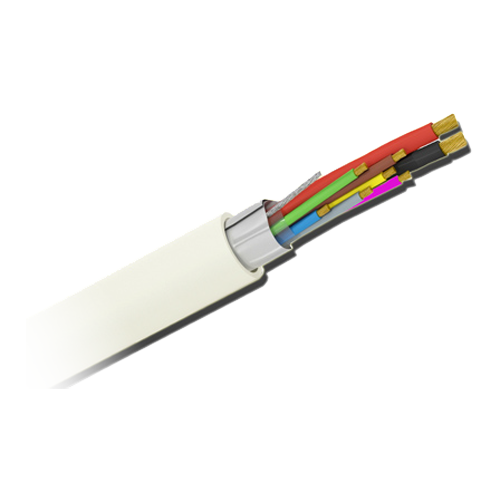

12 conductors - CA12-100-H

0 Rating
incl. VAT€69,38
Price incl. VAT: €69,38
Ex. VAT: €55,50
Total discount:
VAT: €13,88
In Stock
SKU: CA12-100-H
  • SKU: CA12-100-H
  • 12 conductors
  • Conductor Flexible electrolytic copper Class 5
  • CuSn Aluminium polyester screen + drain
  • Bobbin of 100 meters
  • CPR certificate Cca -1sb, a1, d2
  • Low loss
Gls 1
Ups 1
1-4 Days delivery
 Back to: Cables
Cards 1
  • CA12-100-H
  • Bobbin of cable
  • 100 m
  • Alarm
  • 12 conductors
  • Inner conductor Class 5 Flexible electrolytic copper 0,22 mm
  • PE isolation
  • Screen Aluminium polyester with 96% coverage+CuSn drainage
  • Polyolefin cover FRLSHF 6.3 mm
  • Halogen free
  • CPR certificate Cca -1sb, a1, d2
SKU CA12-100-H
Length 100 m
Interior conductor Flexible electrolytic copper AWG25 0,22 mm Class 5
Isolation Polyethylene
Formation of the wires Twisted
Screen Aluminium polyester with 96% coating+CuSn drainage
External cover Polyolefin FRLSHF 6.3 mm
Number of conductors 12 signal
Conductivity <10μS/mm
Resistencia eléctrica 106 Ohm/km señal
Temp. funcionamiento 0º C ~ 70º C
Certificación CPR (Cca -1sb, a1, d2), UNE EN 50575, UNE EN 60332-1-2, UNE EN 50399, UNE EN 61034-2, UNE EN 60754-2
