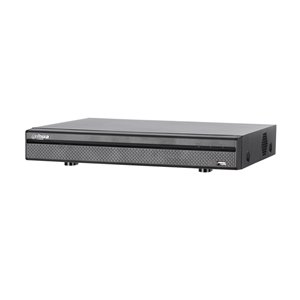

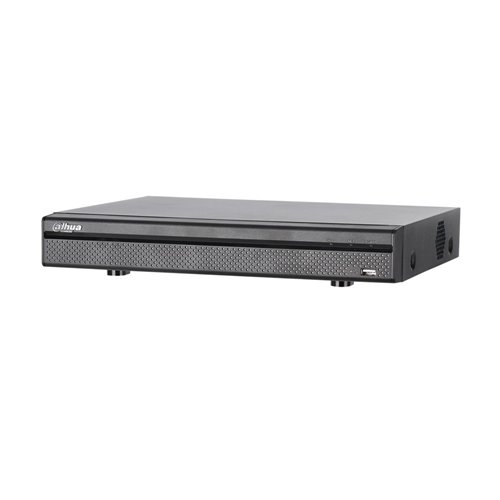

XVR5116H-4KL - 16 channel 5 in 1 XVR HDCVI/HDTVI/A…

SKU: XVR5116H-4KL

incl. VAT€425,82

Price incl. VAT: €425,82

Ex. VAT: €340,66

Total discount:

VAT: €85,16

16 channel 5 in 1 XVR HDCVI/HDTVI/AHD/CVBS + 8 IP channel 8MP (added to BNC input). BNC inputs can become IP. H264+/H.264. 2 way audio. 16 channel playback 1080P. Recording: 4K/8MP (7 fps), 5MP (12 fps), 4MP, 3MP (15 fps), 1080P, 720P, 960H, D1, CIF, QCIF (25 fps). HDMI at 4K and VGA at 1080P output with SPOT function. Intelligent video analisys. Facial detection. 1 HDD SATA capacity. RJ45 Gigabit. Onvif, CGI, P2P, DDNS. 2 USB, 1 RS485. 12V DC.

Sold out / Not on stock

Back to: Dahua New

Product description: XVR5116H-4KL

Description

- 16 channel 5 in 1 XVR 960H, HD-CVI (4K/8MP, 4MP, 1080P, 720P), AHD (5MP, 4MP, 3MP, 1080P, 720P), HD-TVI (5MP, 3MP, 1080P, 720P) + 8 IP channels (8MP)
- 5 technologies: IP, HDCVI, HDTVI, AHD and CVBS
- Automatic video input signal recognition
- Preview in all channels at 1080P and recording/playback at 1080p and 720p
- H264+/H.264
- LINUX embedded OS
- 16 BNC inputs:
• HDCVI: 4K/8MP, 4MP, 1080P, 720P
• HDTVI: 5MP, 3MP, 1080P, 720P
• AHD: 5MP, 4MP, 3MP, 1080P, 720P
• CVBS: 960H (NTSC/PAL)
- IP camera inputs: 8 additional IP inputs at 8MP (added to BNC inputs)
- Analog channels can become IP
- HDMI (4K) and VGA (1080P) video output with SPOT function
- Output division (IP mode OFF): 1, 4, 8, 9, 16
- Output division (IP mode ON): 1, 4, 8, 9, 16, 25
- Audio: 1 RCA in / 1 RCA out
- 2 way audio
- HDMI display resolution: 4K/8MP (3840x2160), WQHD (2560x1440), 1080P (1920x1080), SXGA (1280x1024), 720P (1280x720), XGA (1024x768)
- VGA display resolution: 1080P (1920x1080), SXGA (1280x1024), 720P (1280x720), XGA (1024x768)
- Recording resolution: 4K/8MP (3840x2160), 5MP, 4MP, 3MP, 1080P (1920x1080), 720P (1280x720), 960H (960x576), D1 (704x576), CIF (352x288), QCIF (176x144)
- Stream 1: 4K/8MP (1~7 fps), 5MP (1~12 fps), 4MP, 3MP (1~15 fps), 1080P, 720P, 960H, D1, CIF, QCIF (1~25 fps)
- Stream 2: 960H (1~15 fps), D1, CIF, QCIF (1~25 fps)
- Recording modes: Manual, calendar (regular, continuous), motion detection (video detection: motion detection, video loss, manipulation), alarm, stop
- Recording intervals: 1~60 min (60 min default) / 1~30 sec (pre-recording) / 10~300 sec (post-recording)
- Remote control via keyboard (Joystick) connected by TCP/IP or RS485
- Independent motion detection configuration by camera (22x18 selectable grid), video loss and masking detection, diagnosys
- 16 channel simultaneous playback
- Intelligent search function
- Intelligent video analisys. Tripwire supported
- Facial detection
- 1 HDD SATA internal capacity up to 8TB (not included)
- On screen menu configuration
- Software and hardware watchdog
- Watermark
- 3D intelligent positioner with compatible PTZ domes
- Third party support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, etc.
- The fan can be turned on or off automatically depending on the temperature of the CPU
- Network port: RJ45 (1000 Mbps)
- Network protocols: HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, Filtro IP, PPPoE, DDNS, FTP, alarm server, P2P, IP search
- Up to 128 users
- Compatible with ONVIF 2.4.2 and CGI
- Compatible with iPhone, iPad, Android (App EVO and Peepall)
- SmartPSS free client software (multi-connection) and connection via browser (Internet Explorer, etc.)
- Email with attached picture
- Programmed or alarmed FTP sending
- Fixed/dynamic IP via DDNS Evolution service
- Communication port: 1x USB 2.0, 1x USB 3.0, 1x RS485 (for PTZ control)
- Power supply: 12V DC, 3A (<15W, without discs)
- Working temperature: -10°C ~ +55°C
- Storage temperature: -20°C ~ +70°C
- RH: 0~90%
- Dimensions: 325 x 255 x 55 mm
- Weight: 2 kg (without HDD)
- Desktop installation
