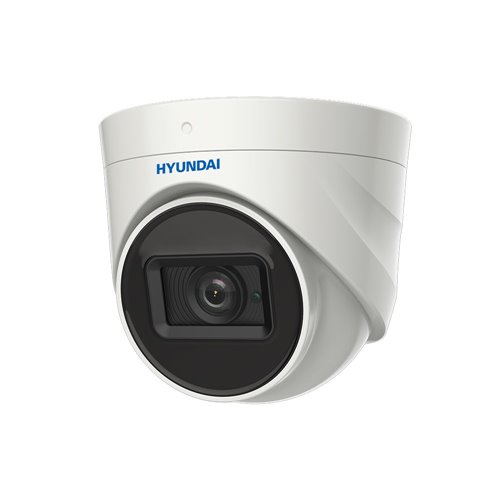

HYU-812 - 4 in 1 fixed dome HYUNDAI NEXT GEN…

Features

   5 megapixel CMOS
   5MP (2560x1944) at 20 ips
    2.8mm fixed lens
    OSD menu control via coaxial cable (UTC)
    Digital WDR, 3D-DNR
    Smart IR up to 20 meters
    Includes microphone
    Supports coaxial cable audio transmission (only compatible with ZVR Hyundai with audio)
    4-in-1 video output
    Not suitable for outdoors



Specifications

    5 megapixel CMOS sensor
    Digital resolution: 5MP (2560x1944)
    Images per second:
        TVI: 5MP (20 ips), 4MP (25/30 ips), 1080P (25/30 ips)
        AHD: 5MP (20 ips), 4MP (25/30 ips)
        CVI: 4MP (25/30 ips)
        CVBS: PAL / NTSC
    Switchable 4-in-1 video output (HDCVI, HDTVI, AHD, CVBS)
    Removable mechanical filter
    0.01 lux F1.2 (color) / 0 lux IR On
    Smart IR: 20 meters
    2.8mm fixed lens
    85.5 ° (H), 63.7 ° (V), 110.7 ° (D) angle of view
    Automatic and manual white balance
    Automatic gain control
    Backlight compensation: BLC, HLC
    Digital WDR
    2D digital noise reduction
    Brightness and sharpness adjustment
    Mirror mode
    Includes microphone
    Coaxial Audio
    Power: 12V DC (± 25%)
    Consumption: Max. 3.7W
    -40 ° C ~ + 60 ° C operating temperature
    Relative humidity: <90% (without condensation)
    Not suitable for outdoors
    Plastic shell
    Dimensions: Ø84.6 x 78.9 mm
    Weight: 140g
    3AXIS: 0 ° ~ 355 ° (PAN), 0 ° ~ 75 ° (TILT), 0 ° ~ 355 ° (Rotation)
