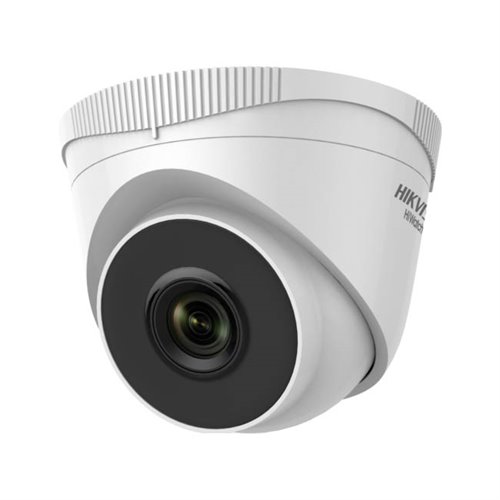

HWI-T221H(C) - HIKVISION® HiWatch T Series IP Fixe…

specs

Image Sensor 1 / 2.8 "CMOS, 2 Megapixel
Resolution: 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720)
Video compression H.265 +, H.265, H.264 +, H.264 and MJPEG
Stream 1: 1080P, 1.3MP, 720P (25 ips)
Stream 2: 640x480, 640x360, 320x240 (25 ips)
Day / night mode with removable mechanical filter (ICR)
0.028 lux F2.0 (color) / 0 lux IR On
Smart IR: Up to 30 meters
2.8mm fixed lens
Viewing angle: 114.8 ° (H), 62 ° (V), 135.5 ° (D)
Imaging modes: BLC, Digital WDR, 3D-DNR
Supports 1 fixed region of interest (ROI) in the main stream, video sensor and privacy mask
Adjust brightness, saturation, contrast, sharpness, AGC and white balance from client software or web browser
Network interface: RJ45 (10 / 100M) self-adaptive
Network protocols: TCP / IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
Compatible with ONVIF (profile S), ISAPI
Up to 32 users
Up to 6 live views
Compatible with iVMS-4200, Hik-Connect, iVMS-5200 and iVMS-4500 software
Compatible with browsers IE8 +, Chrome 31.0-44, Firefox 30.0-51 and Safari 8.0+
Remote viewing with IOS and Android browsers and smartphones
Power supply: 12V DC (± 25%), max 3.5W
Supports PoE 802.3af, Class3 (36V ~ 57V DC; 0.2A ~ 0.1A; 4.5W max)
Operating conditions: -30 ° C ~ + 60 ° C, relative humidity <95%
Degree of protection IP67
Metal and plastic housing
Dimensions: Ø110 x 93.2 (Al) mm
Weight: 360 g
3AXIS: 0 ° ~ 360 ° (PAN), 0 ° ~ 75 ° (TILT), 0 ° ~ 360 ° (Rotation)
Power supply is not included
