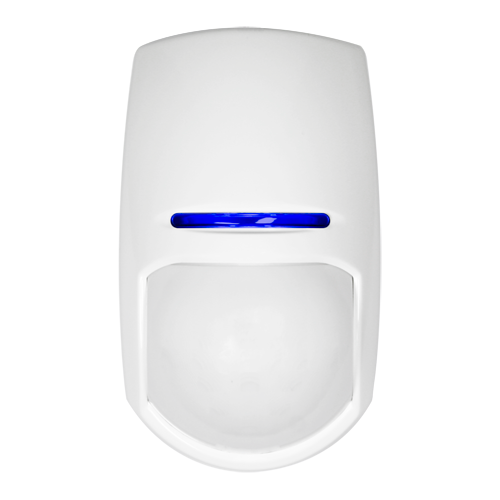

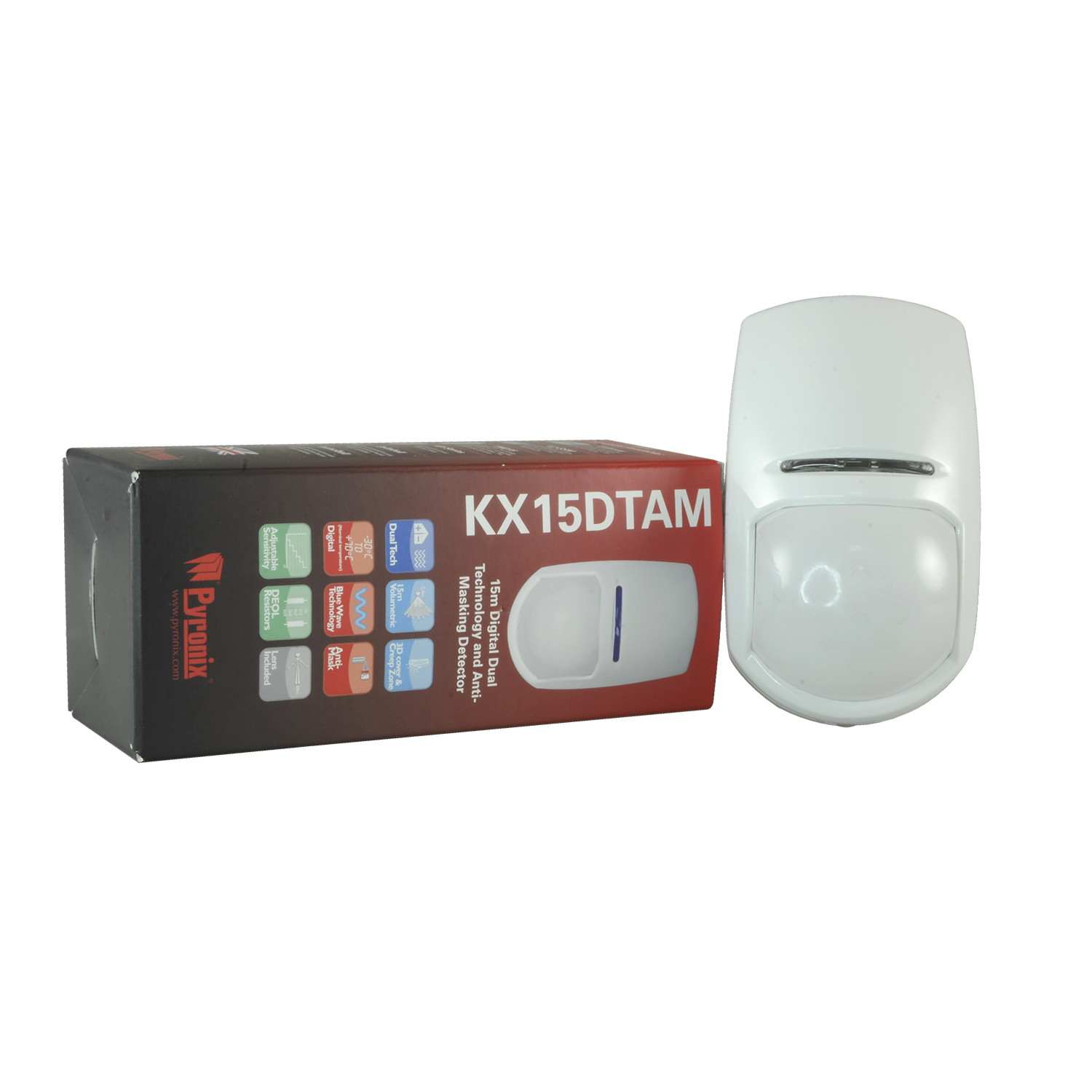

PIR detector with double technology - KX15DTAM

0 Rating
incl. VAT€43,48
Price incl. VAT: €43,48
Ex. VAT: €34,78
Total discount:
VAT: €8,70
In Stock
  • PIR detector with double technology
  • Anti-masking function
  • For interior use
  • 1 x infrared PIR, 1 x Microwave
  • Grade 3 cabling
  • Detection Range 15/18/30 m
Gls 1
Ups 1
1-4 Days delivery
 Back to: Alarms
Cards 1

Pyronix high-security volumetric PIR detector. Wired, double anti-masking technology, suitable for indoor.

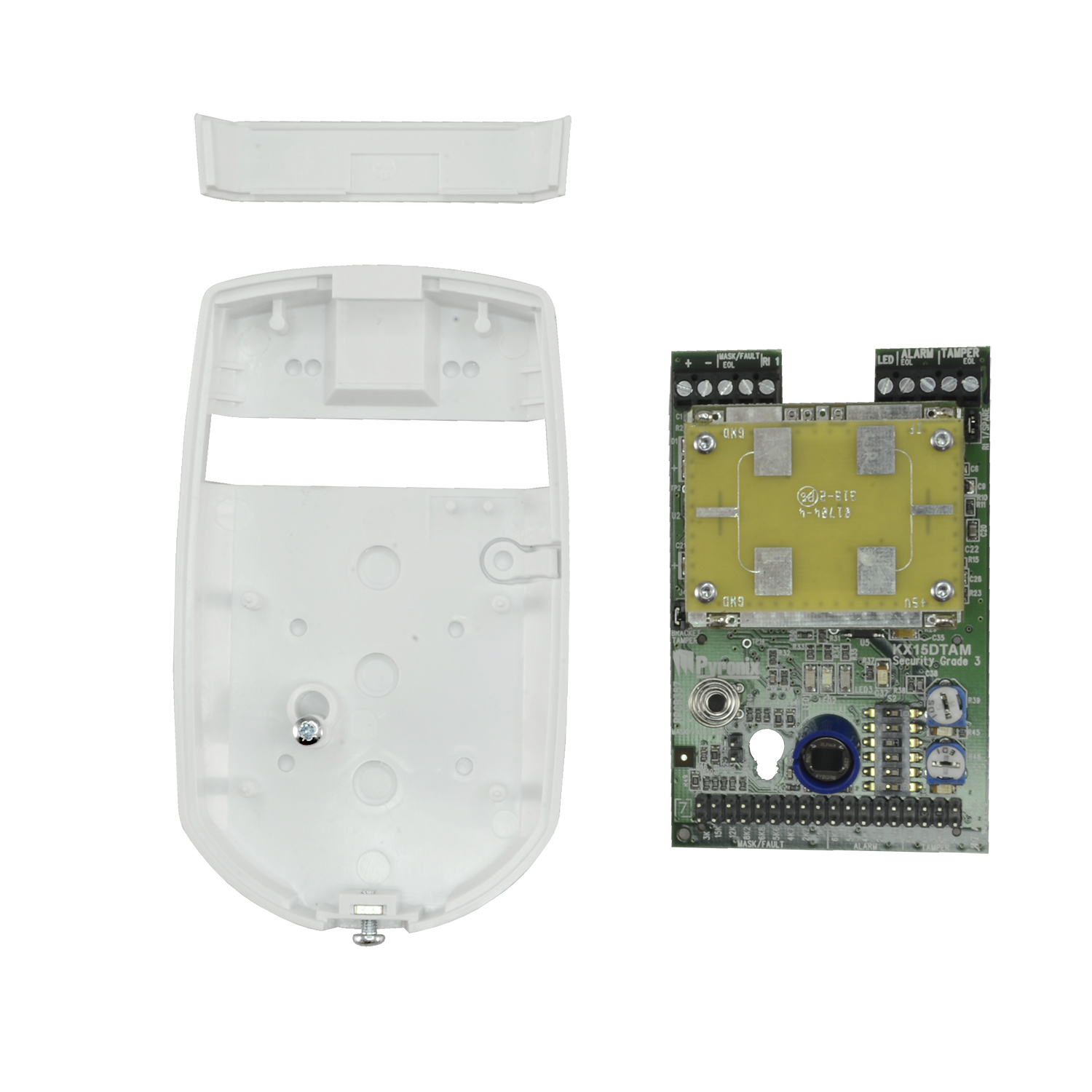

Highly reliable wired motion detector, specifically designed for covering indoor areas. Effective detection thanks to double technology: 1 dual passive infrared sensor and 1 Doppler microwave unit that works intelligently and coordinated to avoid false alarms and the possibility of masking by sprays or objects placed in front of the detector. Incorporates Blue Wave technology to reduce the signal to noise ratio and improve the detectors immunity to infrared noise.

It is a high protection device with certificate 3, that incorporates multiple improvements that increase the system security:

  • KX15DTAM
  • Microwave sensor ((15m with H = 2.4m)
  • Switchable mode AND (default: double technology) / OR (microwave only)

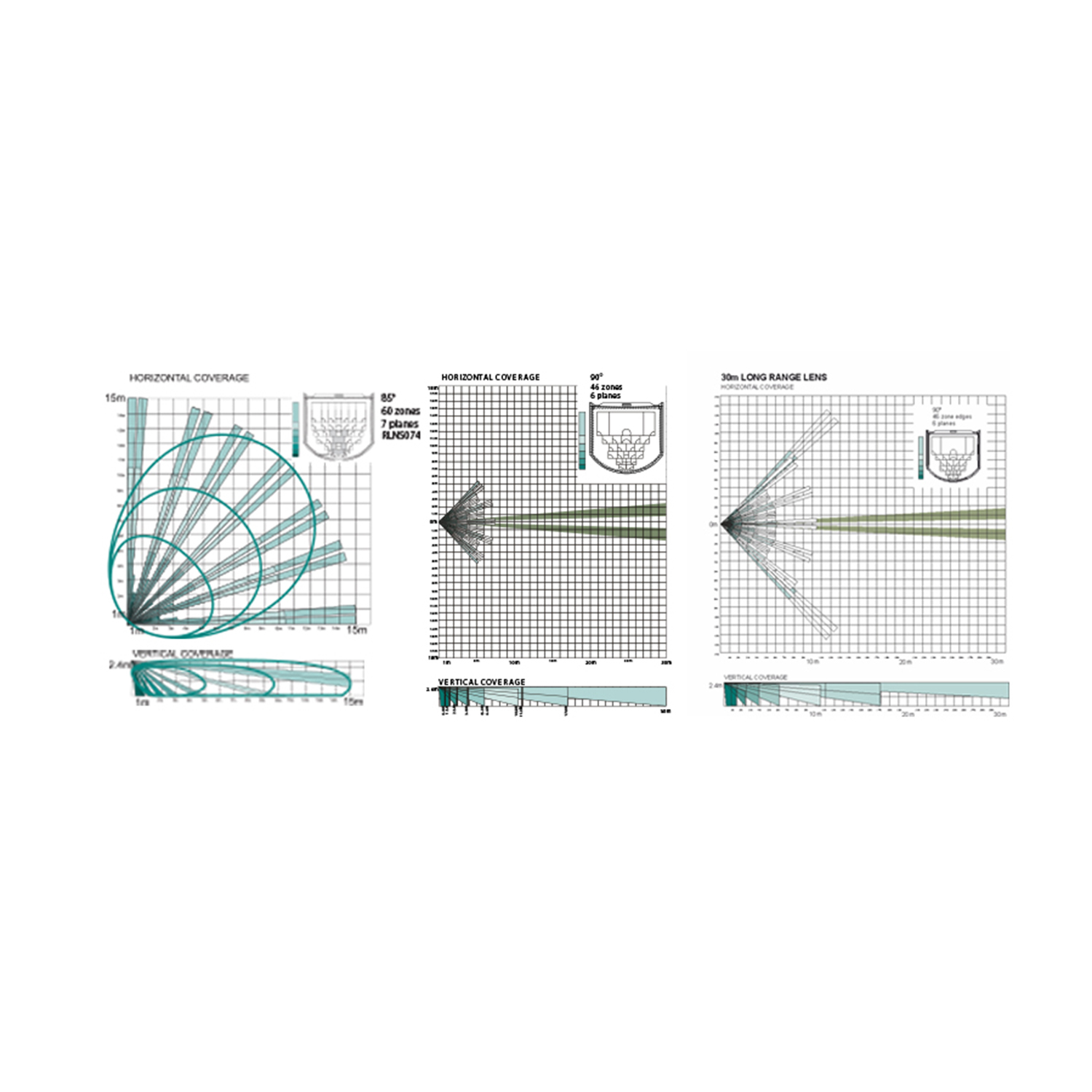

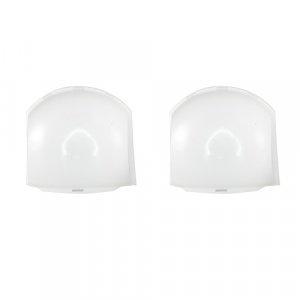

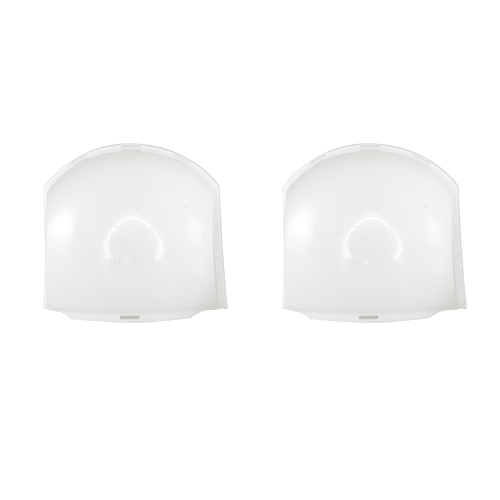

  • PIR detection which permits up to 3 different lenses to be fitted:
  • Wide-coverage lens with 60 Zones and 7 levels (15 m in 85º for H = 2.4 m)
  • Curtain-format lens with 24 zones and 6 levels (18 m in 20º for H = 4 m)
  • Powerful lens with 46 zones and 6 levels (15 m in 90º with beams of 30 m for H = 2.4 m)
  • Adjustable anti-masking technology that protects the 2 sensors
  • Automatic (and manual) sensibility adjustment
  • Automatic compensation of ambient temperature
  • Detection speed 0.25~2.5 m/s
  • Sealed optics to avoid false detection's by insects or air currents
  • Locking system to prevent obstructions to the detector
  • Selectable EOL (End Of Line) resistors (SEOL / DEOL / 3EOL)

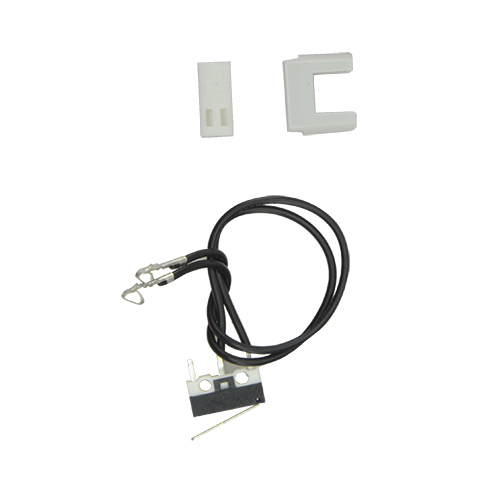

  • Double anti-tamper (case & support)

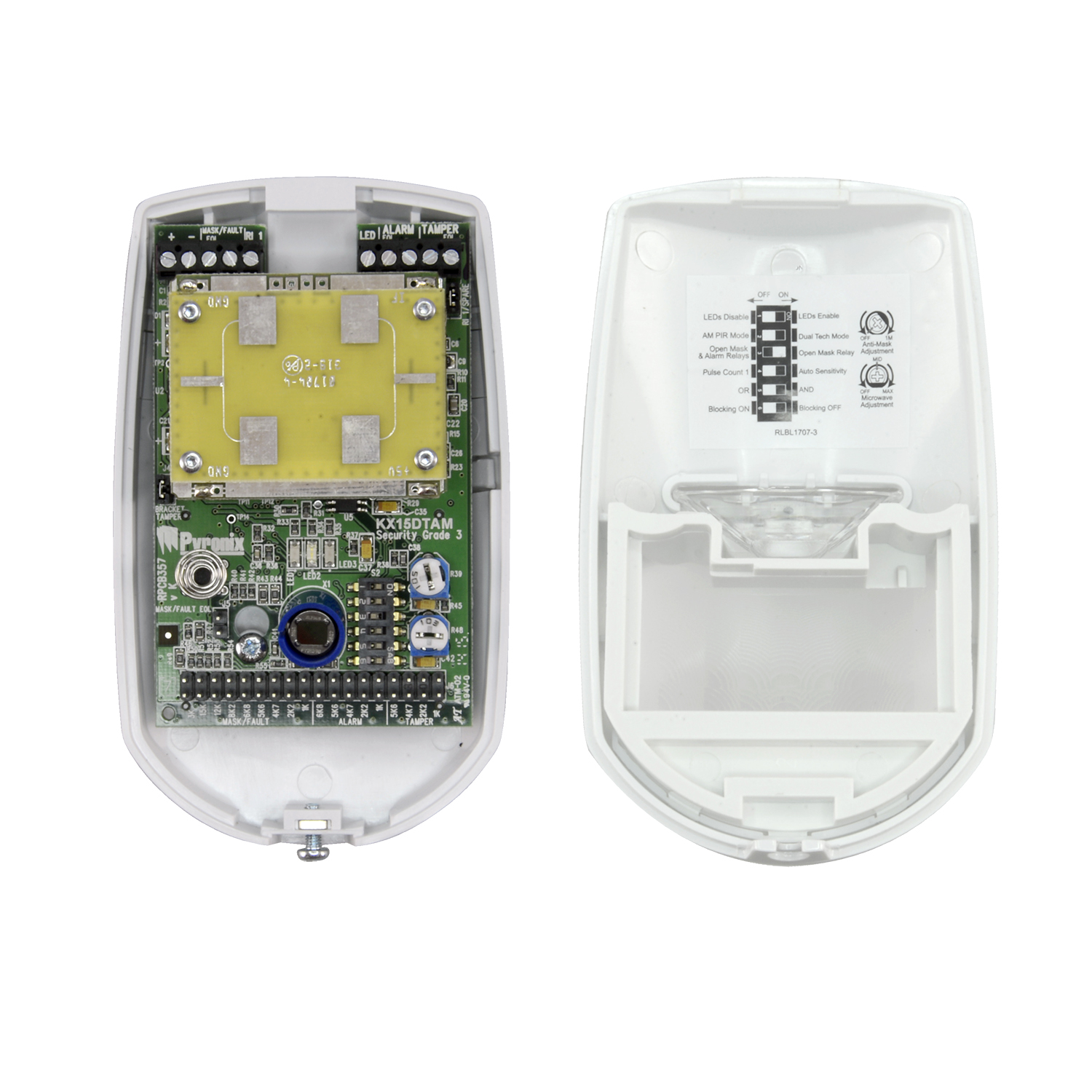

  • LED indications to facilitate installation and configuration

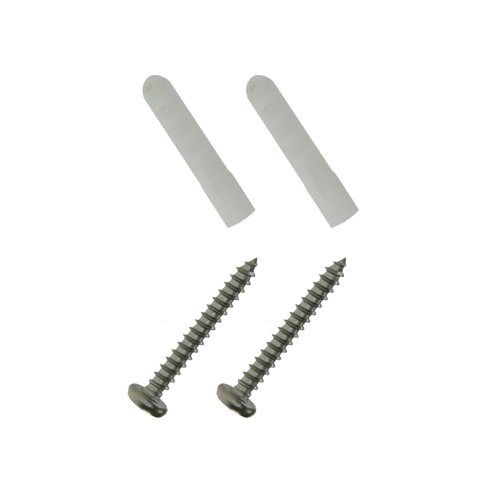

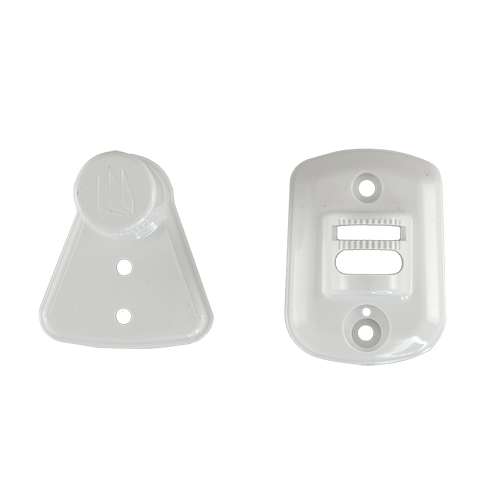

Casing manufactured in 4mm ABS (DE polished) to reduce static electricity in the detector. Wall and ceiling mounts included.

Brand Pyronix
Technology 1 x PIR + 1 x Microwave with AND/OR function
PIR lens 3 available lenses 1/2/3: 60/24/46 Zones & 7/6/6 planes
Detection range 15/18/30m in 85º/20º/90º for H installation = 2.4/4/2.4m
Pet immunity No
Masking Adjustable from 0 to 1 m
Sensitivity Automatic or Pulse Count 1 adjustment
Detection speed 0.25~2.5 m/s
Relay Output DC 60 V / 50 mA
Tamper switch DC 12 V / 50 mA
Power supply DC 9~16 V / 13~16 mA @ DC 12 V
Temp. operation -30º C ~ 70º C
Dimensions (without bracket) 114 (H) x 67 (W) x 47 (D) mm
