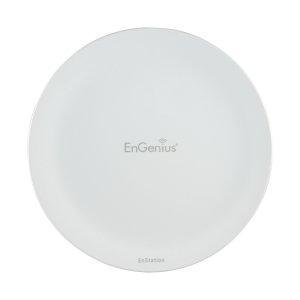

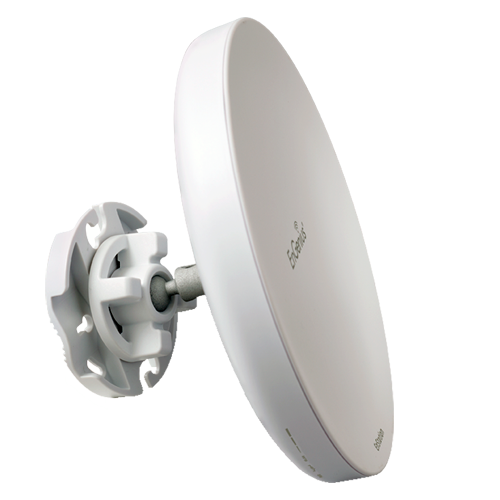

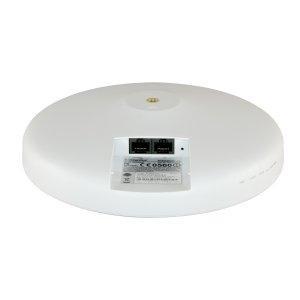

ENGENIUS wireless link - ENSTATIONAC

ENGENIUS exterior wireless device for long distance links compatible with the standard 802.11 a/n/ac that allows transmission speeds of up to 867 Mbps.

The ENSTATIONAC is the ideal solution for wirelessly connecting IP cameras and recorders because it allows to work in the band of 5 GHZ avoiding the usual band of 2.4 GHz very saturated by the interferences. Its integrated dual antenna of 19 dB, the technology MIMO (2 transmisores/2 receivers) and its maximum transmission power of 26dBm (configurable) allow you to link cameras at several kilometers of distance (the maximum distance depends on the particular environment). The antenna has a radiation diagram of 30º in Azimuth (horizontal plane) and 18º in elevation (vertical plane).

It can operate in WDS bridge mode for CCTV wireless networks to fully transparent implement locating equipment just as in a wired network. In addition, it allows both access point mode and client mode so with a single type of device you can design the complete wireless network and, with total security thanks to the different mechanisms available: WEP encryption, WPA, WAP2, authentication 802.1x, hidden SSID and list of supported MAC addresses. It supports work mode "point to point".

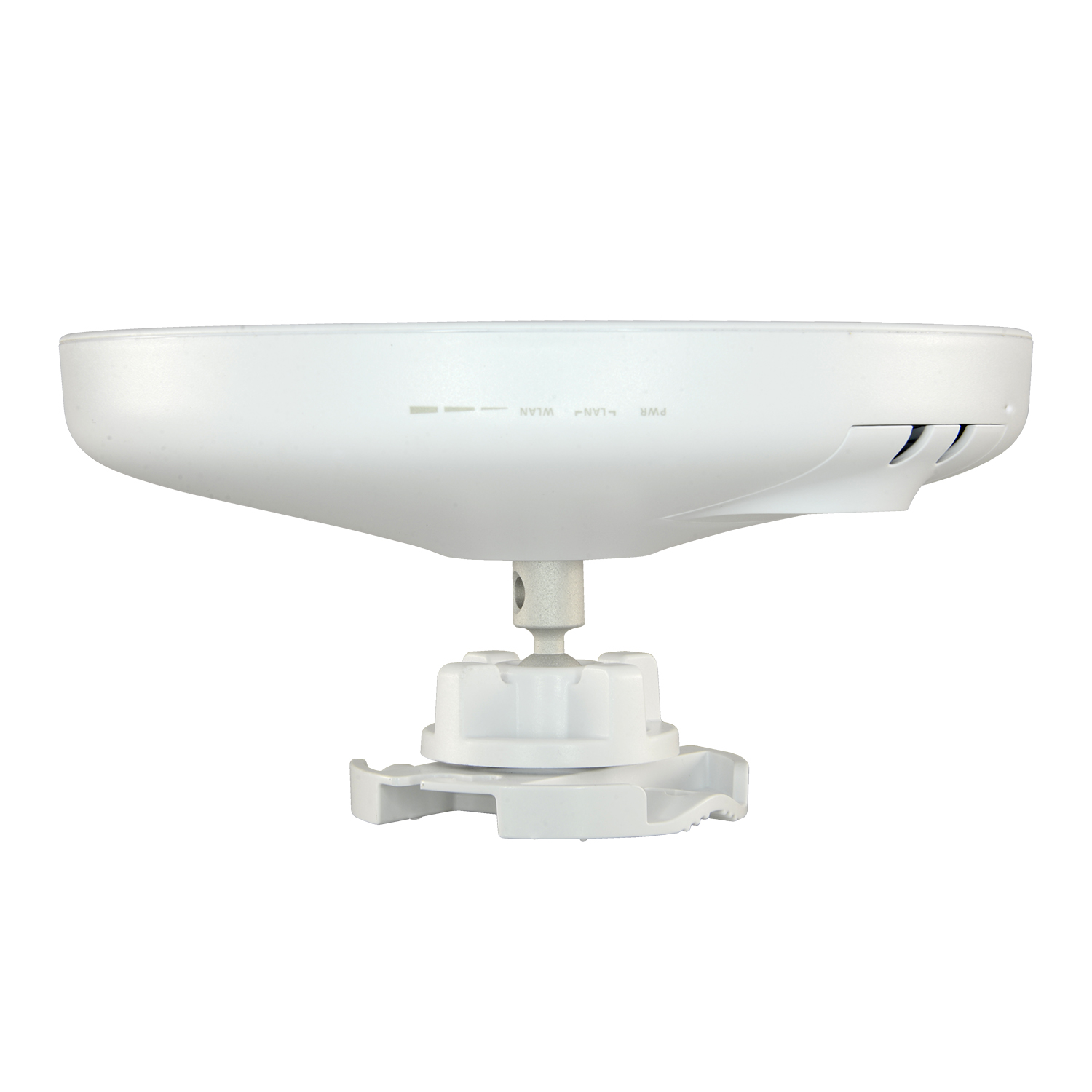

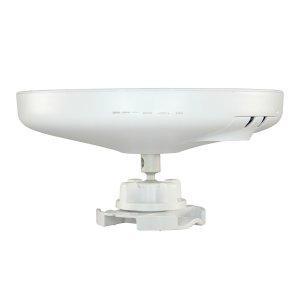

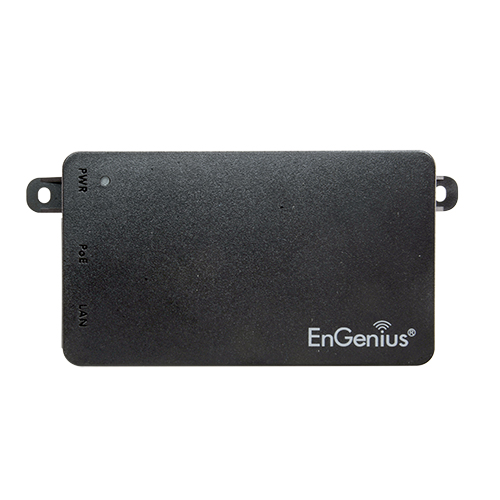

The configuration by web interface, including the two Ethernet connectors, the PoE injector and the leds with which is comes equipped to indicate the received signal level, make it a really easy and fast to deploy equipment in field.

Suitable for outdoor use, according to protocol IP55, and operating temperature range of -20 to 60ºC.
